Summary of Contents for Earlex SPRAY PORT HV 7000

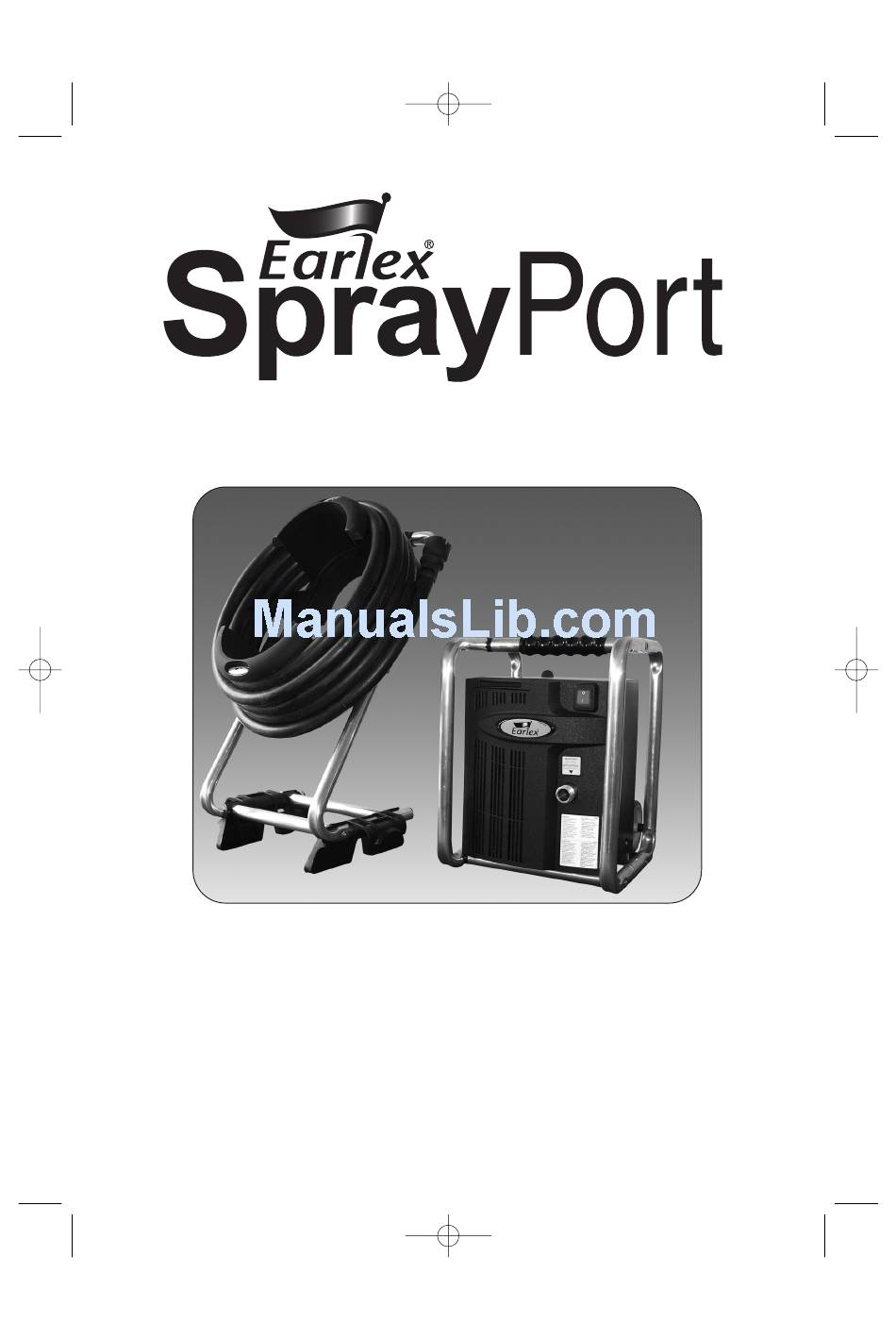

- Page 1 Page 1 HV7000 OPERATING INSTRUCTIONS Thank you for purchasing the Earlex Spray Port. This is a highly versatile spray kit and can be used on a variety of applications. BEFORE USE - PLEASE READ THE SAFETY & OPERATING INSTRUCTIONS. Please retain for future reference...
-
Page 2: Safety Instructions
N0151 07_05.qxd 16/01/2006 10:49 Page 2 SAFETY INSTRUCTIONS WARNING! FIRE AND EXPLOSION HAZARD. CAUTION: TO REDUCE THE RISK OF NEVER, under any circumstances, point the spray gun at another person or animal. In the event of ELECTRIC SHOCK OR INJURY, USE injury occurring, seek expert medical advice INDOORS ONLY. -
Page 3: Important Basic Information

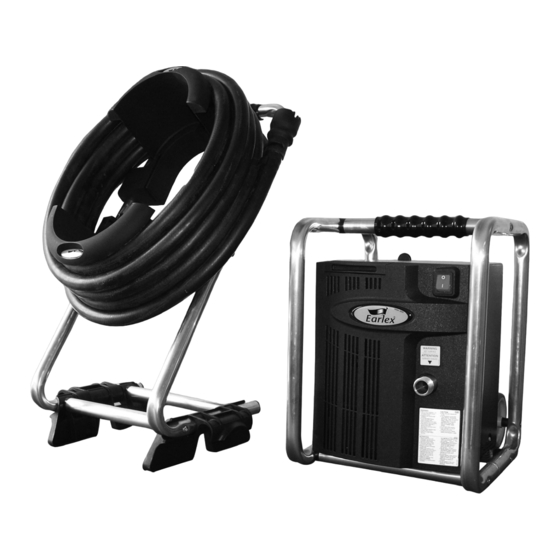

Page 3 INTRODUCTION The Earlex HV7000 “Spray Port” is an industrially rated, portable, paint spraying system and is intended for use by professionals. HVLP stands for High Volume, Low Pressure. This is a type of spraying that allows you to spray extremely accurately but without all the overspray that occurs with high pressure tank equipment. In some parts of the world the high pressure systems are banned by law on environmental grounds and HVLP type systems are the only alternative for professional type spraying. -
Page 4: Operation
N0151 07_05.qxd 16/01/2006 10:49 Page 4 IDEAL VISCOSITY Water based paints and 25 - 75 seconds Varnishes Manufacturers ratio emulsions Aluminium paints Manufacturers ratio Oil based paints 45 - 50 seconds Wood stains Manufacturers ratio Wood preservatives No dilution Primers 45 - 50 seconds This spray applicator can be used with products having a viscosity ranging from 25 to in excess of 75 seconds. -
Page 5: Helpful Hints
N0151 07_05.qxd 16/01/2006 10:49 Page 5 SPRAY PATTERNS Fig.4 The spray applicator has 3 different spray patterns – Horizontal, Vertical and Round (Fig.4) The horizontal and vertical are recommended for large surfaces. Vertical Jet Horizontal Jet Round Jet The round spray is used for small objects or for areas - such as corners –... -
Page 6: Cleaning Instructions
N0151 07_05.qxd 16/01/2006 10:49 Page 6 CLEANING INSTRUCTIONS Remember to disconnect the unit from the mains power when undertaking any cleaning of the Spray Port. THE SPRAY APPLICATOR MUST BE THOROUGHLY CLEANED IMMEDIATELY AFTER USE. IF THE PAINT DRIES INSIDE THE GUN, CLEANING WILL BECOME MUCH MORE DIFFICULT AND MAY RENDER THE APPLICATOR INOPERABLE. -
Page 7: Maintenance
Check the needle and fluid tip on a regular basis for excessive wear, and replace as necessary. See the cleaning instructions for the correct procedure for removing these parts. Replacement needle sets are available from Earlex LTD. Keep all moving parts lubricated with a light smear of ‘silicone free’ grease. - Page 8 N0151 07_05.qxd 16/01/2006 10:49 Page 8 SPRAY APPLICATOR SPARE PARTS DRAWINGS TYPE P Key Description Part Air Cap Ring L0215 Air Cap L0238 Spray Direction Plate L0206 2.0mm Fluid Tip L0237 Fluid Tip Seal L0211 2.0mm Fluid Needle L0236 Spring L0216 Fluid Adjusting Screw L0210...
-
Page 9: Spare Parts List
N0162 7. Motor Unit Assembly N0159 4. Filter Media x 2 N0087 FOR INFORMATION ON ALL SPARE PARTS FOR THIS UNIT PLEASE CONTACT EARLEX LTD ON OUR HELPLINE NO: +44 (0) 1483 454666 TECHNICAL SPECIFICATION Volts 230V Length of mains cable 2.00m... - Page 10 N0162 7. Motor Unit Assembly N0160 4. Filter Media x 2 N0087 FOR INFORMATION ON ALL SPARE PARTS FOR THIS UNIT PLEASE CONTACT EARLEX LTD ON OUR HELPLINE NO: +44 (0) 1483 454666 TECHNICAL SPECIFICATION Volts 110V Length of mains cable 2.00m...
-
Page 11: Troubleshooting
N0151 07_05.qxd 16/01/2006 10:49 Page 11 TROUBLE SHOOTING PROBLEM CAUSE ACTION REQUIRED The paint drips Paint too diluted Add undiluted material on item Paint volume Reduce the paint flow being painted too high by turning Fluid Adjusting Screw Moving too slowly Increase speed of application Spray gun trigger being Release trigger earlier... - Page 12 Whilst every possible care is taken by Earlex to ensure that our products leave the factory in good working order, Earlex cannot under any circumstances accept liability for problems or damage caused by their subsequent use.
