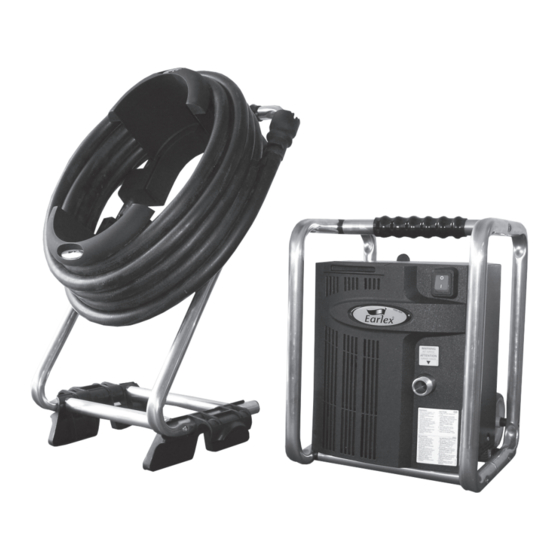

EARLEX SPRAYPORT
®
HV7000/230
OPERATING INSTRUCTIONS
Thank you for purchasing the Earlex SprayPort
.
®
This is a highly versatile spray kit and can be used for
a variety of applications.
BEFORE USE - PLEASE READ THE SAFETY &
OPERATING INSTRUCTIONS.
Please retain for future reference
To register your product, please visit www.earlex.com.
Advertisement
Table of Contents
Related Manuals for Earlex SprayPort HV7000/230
Summary of Contents for Earlex SprayPort HV7000/230
- Page 1 EARLEX SPRAYPORT ® HV7000/230 OPERATING INSTRUCTIONS Thank you for purchasing the Earlex SprayPort ® This is a highly versatile spray kit and can be used for a variety of applications. BEFORE USE - PLEASE READ THE SAFETY & OPERATING INSTRUCTIONS.
- Page 2 • Always disconnect the unit from the mains • If the supply cord is damaged, it must be supply when cleaning the spray gun. replaced by Earlex or our appointed agents to avoid a hazard. • Always ensure the spray area is safe and free from all debris that may present a fire or trip hazard.
- Page 3 SPRAY GUN EXPLODED PARTS VIEW Fig.1 10 11 Description Part No. Description Part No. Air Cap Ring L0151 Gland Nut L0173 Air Cap L0517 Gland Washer (2 pcs) L0168 Air Direction Plate L0162 Operating Lever L0177 2.0mm Fluid Tip L0157 Centre Bolt &...
-
Page 4: Parts List
Carrier Frame Assembly N0162 Motor Unit Assembly N0159 Filter Media x 2 N0087 FOR INFORMATION ON ALL SPARE PARTS FOR THIS UNIT PLEASE CONTACT EARLEX LTD ON OUR HELPLINE No: +44 (0) 1483 454666 TECHNICAL SPECIFICATION Volts 220-240V Length of mains cable... -
Page 5: Operation
INTRODUCTION The Earlex SprayPort is an industrially rated, portable, paint spraying system and is intended for ® use by professionals. HVLP stands for High Volume, Low Pressure. This is a type of spraying that allows you to spray extremely accurately but without all the overspray that occurs with high pressure tank equipment. -
Page 6: Spray Patterns
The larger diameters also allow a greater volume of material to be applied. The smaller diameters are more suitable for low viscosity materials & lighter application. For the Earlex SprayPort , needle & fluid tip sets are available at 1.0mm, 1.5mm ®... -
Page 7: Helpful Hints
PAINT VOLUME The volume of paint sprayed is easily adjustable. Completely close Fluid Adjusting Screw (12) by turning clockwise as far as it will go. Whilst pulling the trigger, begin turning the Fluid Ajustment Screw (12) anticlockwise until the volume of paint you require is obtained. If the paint spray is too wide or contains too much paint turn the Fluid Adjusting Screw (12) clockwise again. -
Page 8: Cleaning Instructions
CLEANING INSTRUCTIONS Remember to disconnect the unit from the mains power when undertaking any cleaning of the Earlex SprayPort ® THE SPRAY GUN MUST BE THOROUGHLY CLEANED IMMEDIATELY AFTER USE. IF THE PAINT DRIES INSIDE THE GUN, CLEANING WILL BECOME MUCH MORE DIFFICULT AND MAY RENDER THE GUN INOPERABLE. -
Page 9: Maintenance
Check the needle and fluid tip on a regular basis for excessive wear, and replace as necessary. See cleaning instructions for the correct procedure for removing these parts. Replacement ● needle sets are available from Earlex Ltd. Keep all moving parts lubricated with a light smear of petroleum jelly. ●... -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE ACTION REQUIRED The paint drips Paint too diluted Add undiluted material on item Paint volume Reduce the paint flow by turning Fluid being painted too high Adjusting Screw (12) clockwise Moving too slowly Increase speed of application Spray gun trigger Release trigger earlier held too long... - Page 11 Whilst every possible care is taken by Earlex to ensure that our products leave the factory in good working order, Earlex cannot under any circumstances accept liability for problems or damage caused by their subsequent use. It is the responsibility of the user to ensure that surfaces to be treated or cleaned are suitable for spraying.
- Page 12 Earlex Ltd, Opus Park, Moorfield Road, Guildford, Surrey, GU1 1SZ, UK Tel: +44 (0)1483 454666 Email: enquires@earlex.co.uk Website: www.earlex.com © 2012 Earlex Ltd. N0151 11/12...
