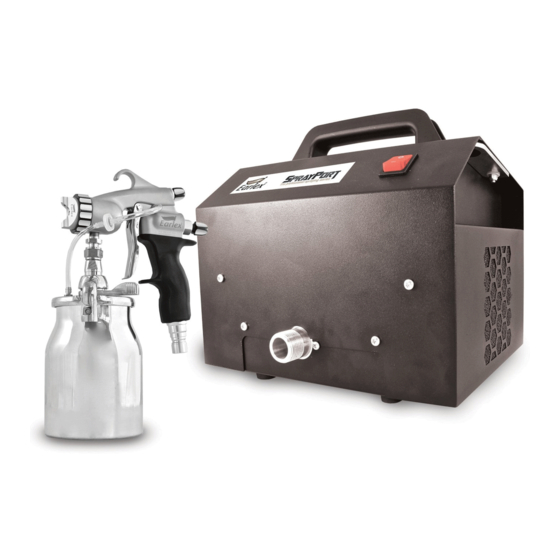

HV6002 / 6003
OPERATING INSTRUCTION MANUAL
Thank you for purchasing the SprayPort® from Earlex Professional 6000 Series.
This highly versatile HVLP System (high volume of air, low pressure painting) can be
used for a wide variety of applications.
BEFORE USE – PLEASE READ THE MANUAL AND SAFETY INSTRUCTIONS.
Please retain for future reference.
To register your product visit www.sprayport.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Earlex SprayPort HV6002
Summary of Contents for Earlex SprayPort HV6002

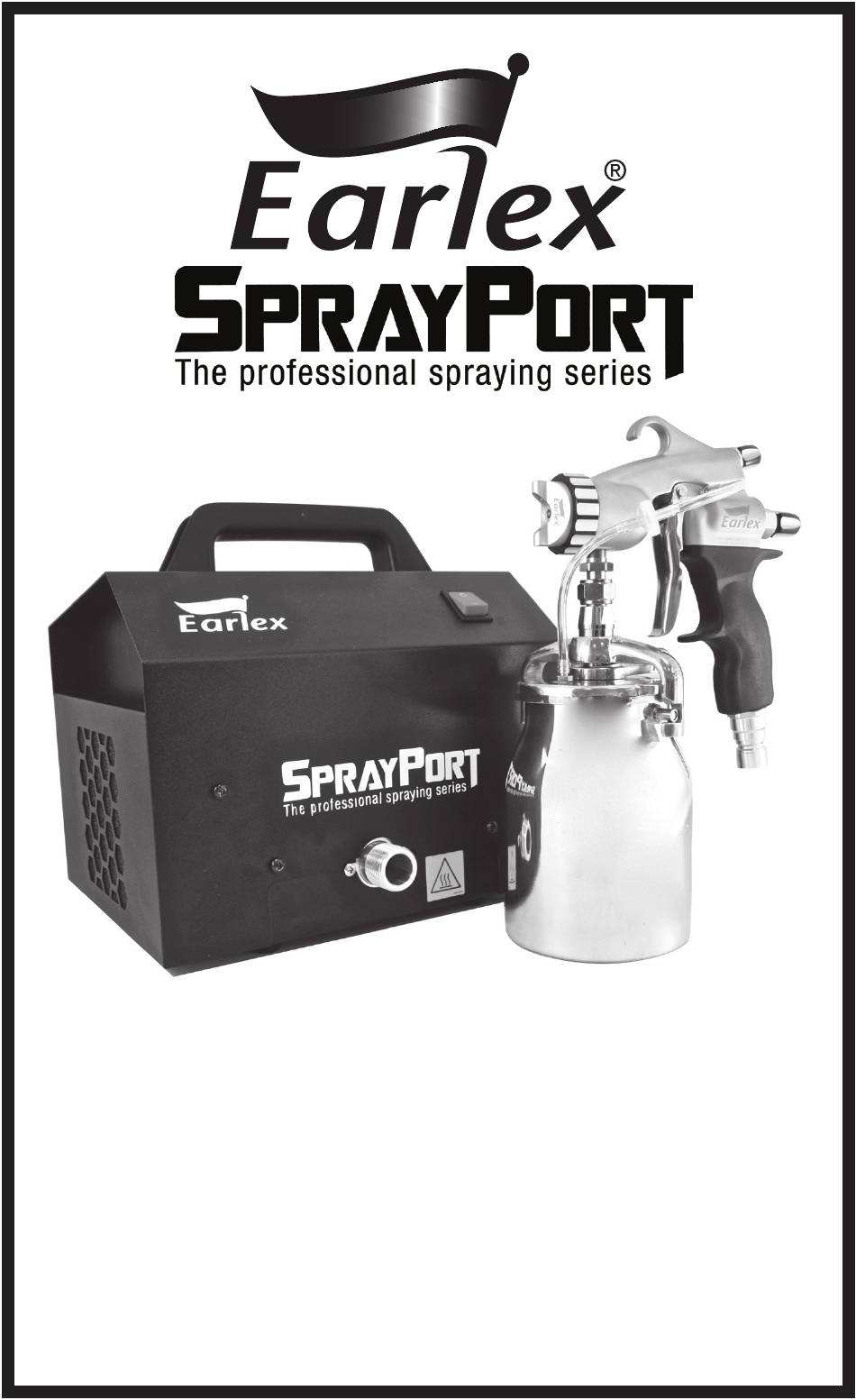

- Page 1 ® HV6002 / 6003 OPERATING INSTRUCTION MANUAL Thank you for purchasing the SprayPort® from Earlex Professional 6000 Series. This highly versatile HVLP System (high volume of air, low pressure painting) can be used for a wide variety of applications. BEFORE USE – PLEASE READ THE MANUAL AND SAFETY INSTRUCTIONS.
- Page 2 WARNING! Use the Spray Gun for the job it was designed for only. Misuse of the Spray Gun will invalidate the guarantee. WARNING! If the cordset is damaged, it must be replaced with the correct Earlex part to avoid a hazard.
- Page 3 INTRODUCTION This powerful spray system applies coatings faster than brushing or rolling while maintaining a smooth and accurate finish. The SprayPort® series is designed for the professional decorator and finisher. The latest technology and materials combine to deliver a consistently high performance. The SprayPort®...
-
Page 4: Parts List
SPRAYPORT TURBINE UNIT PARTS LIST No. Description Part No. Air Filter 0PACC62 Cordset US; 0PACC130, IND; 0N0322 Circuit Breaker US - 15 AMP; 0N0080, IND - 8 AMP; 0N0078 Power Inlet Connector Power Switch 0L1843 Air Outlet - Hose Attachment Gun Dock 0PACC82 25ft (7.6m) Air Hose... -
Page 5: Operation
PREPARATION • Unpack turbine and check all parts are present (see parts list) and undamaged. • Prepare surfaces to be sprayed ensuring they are clean, dry and smooth. • Ensure there is adequate ventilation. • Mask off all areas not intended for spraying. OPERATION •... -
Page 6: Shutting Down
• Connect cordset to a grounded outlet. • Turn the power on ‘|’ (5). • Familiarize yourself with spraying technique (for detailed instruction on how to operate spray gun refer to Spray Gun Operating Instruction Manual supplied separately) using waste cardboard. •... -
Page 7: Maintenance
MAINTENANCE Some simple maintenance is required to ensure your SprayPort® continues to perform effectively: IMPORTANT: Always unplug from the mains ahead of any maintenance. • Clean/ replace filters. - Filters will become dirty during use. To remove see diagram below. Clean filters in warm soapy water. -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE ACTION REQUIRED Little or no spray Air inlet blocked Check the condition of the Air Filters and clean or replace Check air inlets, air vents and air hose for blockages Turbine has no No power at supply Check the power supply power Cable fuse has blown... -
Page 9: Grounding Instructions
If the cordset is damaged, it must be replaced using a genuine Earlex part to avoid a hazard. Check with a qualified electrician or serviceman when the grounding instructions are not completely understood, or when in doubt as to whether the product is properly grounded. - Page 10 Notes...
- Page 11 Notes...
- Page 12 PURPOSES OTHER THAN THOSE DETAILED HEREIN. 24 Month Warranty Earlex issues a 24 month Warranty to the purchaser effective from the date of purchase against defects in materials or workmanship. This warranty does not cover abuse, accidental damage, misuse, normal wear parts, motor brush replacement or spray gun maintenance & clean up.
