HV7000A / HV7000P
OPERATING INSTRUCTIONS
Thank you for purchasing the Earlex Spray Port.
This is a highly versatile spray kit and can be used on a variety of applications.
BEFORE USE - PLEASE READ THE SAFETY & OPERATING INSTRUCTIONS.
Please retain for future reference
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Earlex Spray Port HV7000A
Summary of Contents for Earlex Spray Port HV7000A
- Page 1 Page 1 HV7000A / HV7000P OPERATING INSTRUCTIONS Thank you for purchasing the Earlex Spray Port. This is a highly versatile spray kit and can be used on a variety of applications. BEFORE USE - PLEASE READ THE SAFETY & OPERATING INSTRUCTIONS.
-
Page 2: Safety Instructions
EXTENSION CORDS Your Earlex Spray Port is supplied with a power cord that is 6 feet long. If you need an extension cord, use only a 3 wire extension cord that has a 3 blade grounding plug, and a 3 slot receptacle that will accept the plug on the product. -
Page 3: Important Basic Information

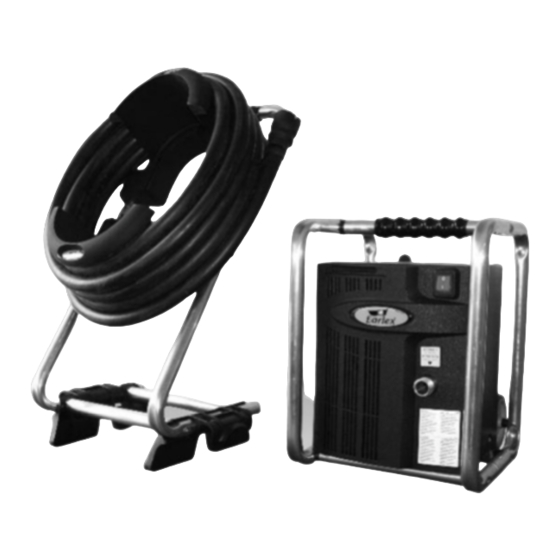

The Earlex Spray Port (model no. HV7000US) is a portable system that is made up as a trolley unit that can be broken down into two separate parts, the main Turbine Unit and the Carrier Stand. These two parts connect together via two quick release clips allowing the complete system to be wheeled from a vehicle to the workplace or around the workshop. -
Page 4: Operation
N0150 05/05.qxd 27/5/05 10:28 am Water based paints and 45 - 60 seconds emulsions Oil based paints 45 - 50 seconds Wood preservatives No dilution Primers 45 - 50 seconds This spray applicator can be used with products having a viscosity ranging from 10 to a maximum of 60 seconds. -
Page 5: Helpful Hints
N0150 05/05.qxd 27/5/05 10:28 am SPRAY PATTERNS The spray applicator has 3 different spray patterns – Horizontal, Vertical and Round (Fig.4) The horizontal and vertical are recommended for large surfaces. The round spray is used for small objects or for areas - such as corners –... -
Page 6: Cleaning Instructions
N0150 05/05.qxd 27/5/05 10:28 am CLEANING INSTRUCTIONS Remember to disconnect the unit from the mains power when undertaking any cleaning of the Spray Port. THE SPRAY APPLICATOR MUST BE THOROUGHLY CLEANED IMMEDIATELY AFTER USE. IF THE PAINT DRIES INSIDE THE GUN, CLEANING WILL BECOME MUCH MORE DIFFICULT AND MAY RENDER THE GUN INOPERABLE. -
Page 7: Maintenance
Check the needle and fluid tip on a regular basis for excessive wear, and replace as necessary. See the cleaning instructions for the correct procedure for removing these parts. Replacement needle sets are available from Earlex Inc. Keep all moving parts lubricated with a light smear of ‘silicone free’ grease. - Page 8 N0150 05/05.qxd 27/5/05 10:28 am SPRAY APPLICATOR SPARE PARTS DRAWINGS TYPE P TYPE A Page 8 Key Description Air Cap Ring Air Cap Spray Direction Plate 0.08” (2.0mm) Fluid Tip Fluid Tip Seal 0.08” (2.0mm) Fluid Needle Spring Fluid Adjusting Screw Gland Nut Gland Paint Feed Tube...
-
Page 9: Spare Parts List
N0150 05/05.qxd 27/5/05 10:28 am TURBINE UNIT & CARRIER STAND PARTS DRAWINGS Mains Switch (120V) 1. Hose Connector Assembly (29ft 10”) N0099 2. Semi Hose Reel Moulding 3. Carrier Frame Assembly 4. Filter Media x 2 FOR INFORMATION ON ALL SPARE PARTS FOR THIS UNIT PLEASE CONTACT PMC ON OUR TOLL TECHNICAL SPECIFICATION Volts Amps... -
Page 10: Troubleshooting
N0150 05/05.qxd 27/5/05 10:28 am TROUBLE SHOOTING PROBLEM CAUSE The paint drips Paint too diluted on item Paint volume being painted too high Moving too slowly Spray gun trigger being held for too long Spray gun too close Paint is thin or Paint too diluted irregular Paint volume... - Page 11 N0150 05/05.qxd 27/5/05 10:28 am Page 11 NOTES...
- Page 12 Whilst every possible care is taken by Earlex to ensure that our products leave the factory in good working order, Earlex cannot under any circumstances accept liability for problems or damage caused by their subsequent use.
