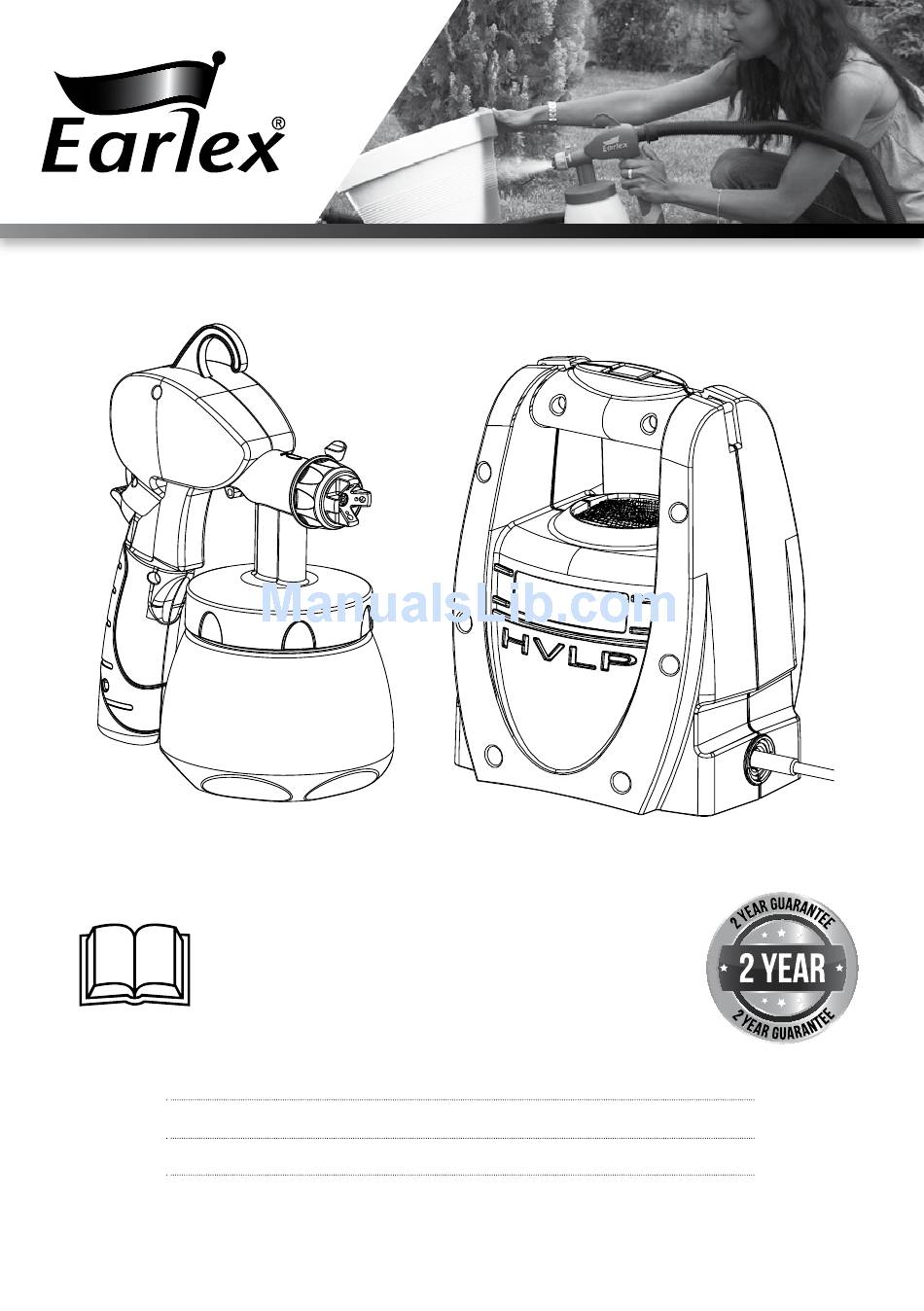

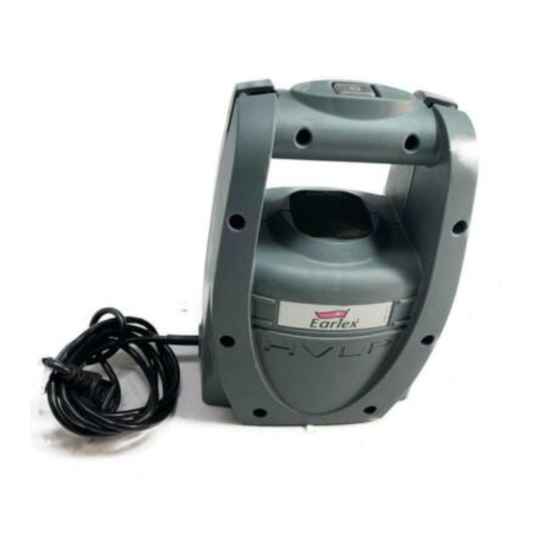

  • Page 1 Spraystation® HV1900 Operating Manual...
  • Page 2 HV1900 Spraystation® HV1900 Operating Manual...
  • Page 3 HV1900 20-30 cm...
  • Page 4 HV1900 NEED IMAGE NEED IMAGE...

  • Page 5: Table Of Contents

    HV1900 MANY THANKS FOR PLACING YOUR TRUST IN US We would like to congratulate you on purchasing this Earlex product; we are sure that you will enjoy working with it greatly. Please read the Operating Manual carefully and observe the safety information before starting the tool.

  • Page 6: Explanation Of Symbols Used

    HV1900 1. Explanation of symbols used This symbol indicates a potential danger to you or for the tool. Under this symbol you can find important information on how to avoid injuries and damage to the power tool. Danger of electrical shock Indicates tips for use and other particularly useful information.
  • Page 7 HV1900 d) Do not misuse the supply cord by carrying the tool by the cord, hanging it from the cord or by pulling on the cord to remove the plug. Keep the supply cord away from heat, oil, sharp edges or moving tool parts. Damaged or twisted leads increase the risk of an electric shock.

  • Page 8: Safety Instructions For Spray Guns

    HV1900 4. Power tool use and care a) Do not overload the tool. Use the power tool designed for the work that you are doing. You work better and safer in the specified performance range if you use the suitable power tool. b) Do not use power tools whose switch is defective.

  • Page 9: Description/ Scope Of Delivery

    HV1900 Socket-outlets and plugs must be masked. Risk of an electric shock as a consequence of sprayed material entering the socket-outlet! • DO NOT use the spray guns to spray flammable substances. • The spray guns are not to be cleaned with flammable solvents. •...

  • Page 10: Field Of Application

    HV1900 5. Field of application Many different coating substances can be processed with this tool. 6. Coating Materials Suitable for Use Interior wall paint (dispersions and latex paint) Water and solvent-based paints, finishes, primers, clear finishes, staining sealers and wood sealer preservatives. 7.

  • Page 11: Preparation Of The Coating Material

    HV1900 9. Preparation of the Coating Material • Mix the material well in the original container. When using interior wall paint, an agitator is recommended. The viscosity (thickness) of your paint may need thinning before spraying. Start with a 10% dilution. Stir well. If further thinning is required dilute by 5% and continue stirring until the finish of chosen coating is satisfactory.

  • Page 12: Selecting The Spray Setting

    HV1900 Spend some time practising on cardboard or a similar surface in order to determine the right flow rate of paint and air for the best spray pattern. Detailed information about these settings can be found in chapter 11- 12. 11. Selecting the Spray Setting WARNING! DANGER OF INJURY! Never pull the trigger guard while adjusting the air cap.

  • Page 13: Interruption Of Work

    HV1900 Fig. 7 A / 7 B: CORRECT Even distance to the object. Fig. 7 C: INCORRECT An uneven distance will result in uneven paint application. • Move the spray gun evenly side to side or up-and-down, depending on the spray pattern setting.

  • Page 14: Cleaning The Fluid Tip And Needle

    HV1900 16. Cleaning the Fluid Tip and Needle 1) Unscrew Air Cap Ring (Fig. 9, 1) 2) Remove Spray Direction Lever (Fig. 9, 3) 3) It is recommended that you push the trigger forward to help release the Fluid Tip (Fig. 9, 4) 4) Using the Needle and Fluid Tip Tool - pincer end (Fig.

  • Page 15: Spare Parts

    Fig 1, 6 EAR2353937 Filter (Pack of 5) Fig 12, A EAR2353939 19. Accessories Further information about the EARLEX range of products for renovating, is available on www.earlex.com. Accessories Designation Order No. 1.0mm Fluid Tip / Needle & Seal EAR2353935 1.5mm Fluid Tip / Needle &...

  • Page 16: Important Note Regarding Product Liability

    HV1900 21. Important Note regarding Product Liability! According to an EC directive, the manufacturer is liable for this product only if all parts originate from or were approved by the manufacturer and the tools are assembled and operated correctly. The use of other accessories and spare parts can partially or completely invalidate the liability.

  • Page 17: Technical Data

    HV1900 Malfunction Cause Remedy • Too much fog of Distance to the object too large ➞ Reduce distance • coating material Too much coating material applied, ➞ Alter material volume (Overspray) material volume setting too high adjuster • Amount of air too high ➞...
  • Page 18 HV1900 WARNING This unit is a Class II appliance which means it is double-insulated for your protection, no earthing wire is necessary. If the supply cord is damaged, it must be replaced by the manufacturer or its appointed agents to avoid a safety hazard.

  • Page 19: Guarantee

    HV1900 2 year guarantee The guarantee runs for two years, counting from the date of sale (sales slip). It covers and is restricted to free-of-charge rectification of faults which are demonstrably attributable to the use of faulty materials in manufacture, or assembly errors; or free- of-charge replacement of the defective parts.

  • Page 20: Ec Declaration Of Conformity

    HV1900 EC Declaration of Conformity P EN We declare under sole responsibility that this product conforms to the following relevant stipulations: 2006/42/EC; 2004/108/EC; 2011/65/EU; 2002/96/EC; 2006/95/EC Applied harmonised norms: EN 60335-1:2012, EN 62233:2008 EN 55014-1:2006 + A1:2009 + A2:2011, EN 55014-2:1997 + Corrigendum 1997 + A1:2001 + A2:2008, EN 61000-3-2:2006 + A1:2009 + A2:2009, EN 61000-3-3:2008 C.
  • Page 21 HV1900...
  • Page 22 Via Stazione 94, Moorfield Road 26013 Crema (CR) Guildford, Surrey, GU11SZ 01483 454666 01483 454548 0373 204839 00373 204845     www.earlex.com Part. No. V0400 01/15 Not responsible for errors and changes. © Copyright Wagner Spraytech (UK) Ltd.
