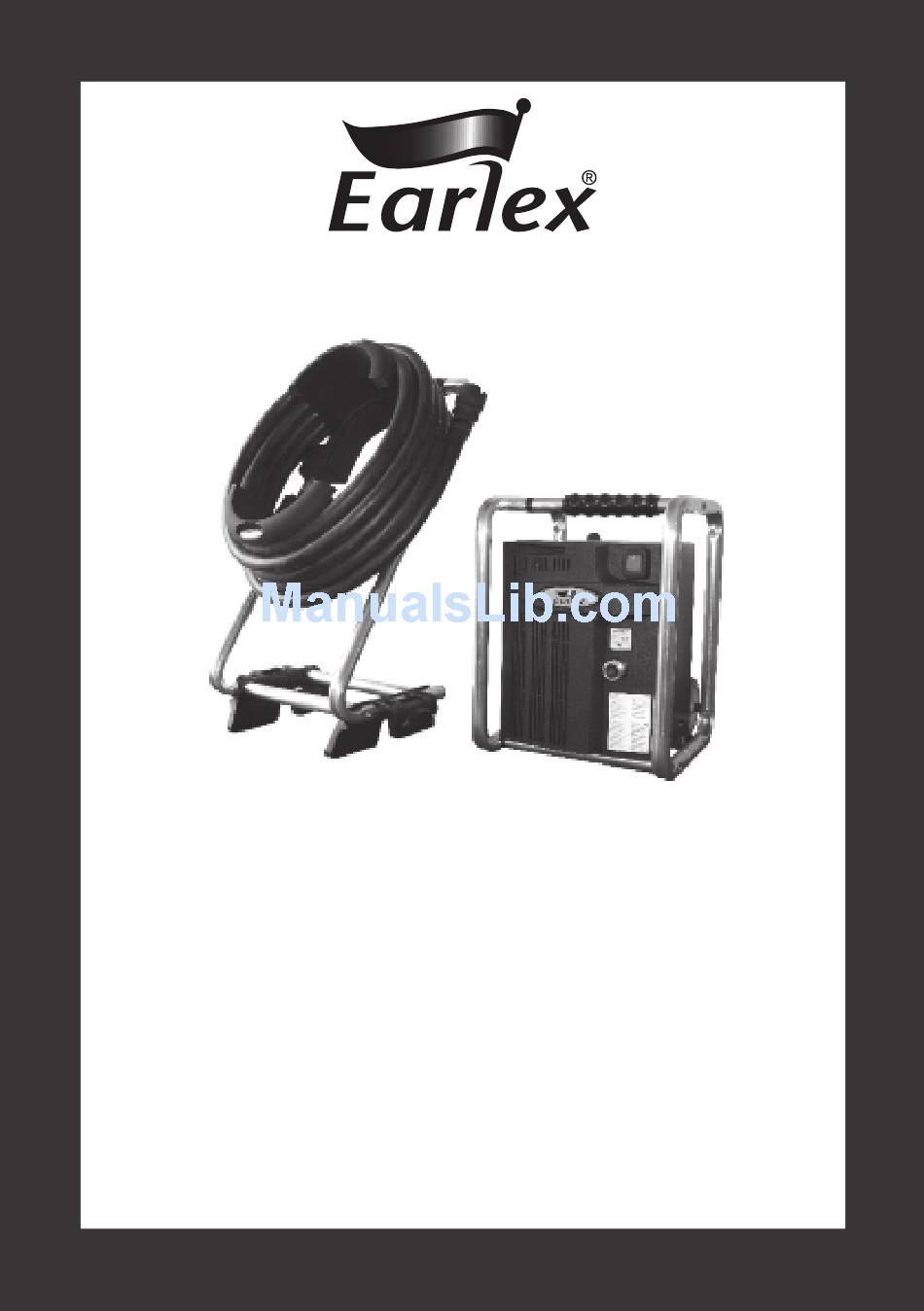

EARLEX SPRAY STATION
®
HV7000
OPERATING INSTRUCTIONS
Thank you for purchasing the Earlex SprayPort.
This is a highly versatile spray kit and can be used on
a variety of applications.
BEFORE USE - PLEASE READ THE SAFETY &
OPERATING INSTRUCTIONS.
Please retain for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spray Station HV7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Earlex Spray Station HV7000

Summary of Contents for Earlex Spray Station HV7000

  • Page 1 EARLEX SPRAY STATION ® HV7000 OPERATING INSTRUCTIONS Thank you for purchasing the Earlex SprayPort. This is a highly versatile spray kit and can be used on a variety of applications. BEFORE USE - PLEASE READ THE SAFETY & OPERATING INSTRUCTIONS.

  • Page 2: Please Read Before Use

    SAFETY OPERATING INSTRUCTIONS PLEASE READ BEFORE USE CAUTION: TO REDUCE THE RISK OF NEVER allow children or unauthorised users ● ● to operate or play with the spray equipment. ELECTRIC SHOCK OR INJURY, DO This equipment is for professional use only. NOT USE IN THE RAIN.
  • Page 3 SPRAY APPLICATOR SPARE PARTS DRAWING TYPE P Key Description Part Air Cap Ring L0215 Air Cap L0238 Spray Direction Plate L0206 2.0mm Fluid Tip L0237 Fluid Tip Seal L0211 2.0mm Fluid Needle L0236 Spring L0216 Fluid Adjusting Screw L0210 Gland Nut L0208 Gland L0272...

  • Page 4: Parts List

    N0162 7. Motor Unit Assembly N0159 4. Filter Media x 2 N0087 FOR INFORMATION ON ALL SPARE PARTS FOR THIS UNIT PLEASE CONTACT EARLEX LTD ON OUR HELPLINE NO: +44 (0) 1483 454666 TECHNICAL SPECIFICATION Volts 230V Length of hose 9.00m...
  • Page 5 N0162 7. Motor Unit Assembly N0160 4. Filter Media x 2 N0087 FOR INFORMATION ON ALL SPARE PARTS FOR THIS UNIT PLEASE CONTACT EARLEX LTD ON OUR HELPLINE NO: +44 (0) 1483 454666 TECHNICAL SPECIFICATION Volts 110V Length of hose 9.00m...

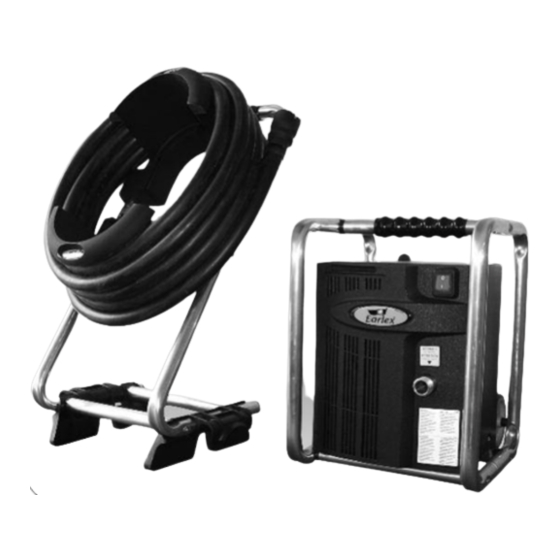

  • Page 6 The Earlex SprayPort is a portable system that is made up as a trolley unit that can be broken down into two separate parts, the main Turbine Unit and the Carrier Stand. These two parts connect together via two quick release clips allowing the complete system to be wheeled from a vehicle to the workplace or around the workshop.

  • Page 7: Operation

    IDEAL VISCOSITY Water based paints and 25 - 75 seconds Varnishes Manufacturer’s ratio emulsions Aluminium paints Manufacturer’s ratio Oil based paints 45 - 50 seconds Wood stains Manufacturer’s ratio Wood preservatives No dilution Primers 45 - 50 seconds This spray applicator can be used with products having a viscosity ranging from 25 to in ex- cess of 75 seconds.

  • Page 8: Spray Pattern

    SPRAY PATTERN Fig.4 The spray applicator has 3 different spray patterns – Horizontal, Vertical and Round (Fig.4) The horizontal and vertical are Vertical Jet Horizontal Jet Round Jet recommended for large surfaces. The round spray is used for small objects or for areas - such as corners – that are difficult to reach. To adjust the spray pattern, loosen the Air Cap Ring (1), adjust the position of the Air Cap (2) to obtain either a vertical, horizontal or round pattern then re-tighten the aircap ring.

  • Page 9: Cleaning Instructions

    CLEANING INSTRUCTIONS Remember to disconnect the unit from the mains power when undertaking any cleaning of the SprayPort. THE SPRAY APPLICATOR MUST BE THOROUGHLY CLEANED IMMEDIATELY AFTER USE. IF THE PAINT DRIES INSIDE THE GUN, CLEANING WILL BECOME MUCH MORE DIFFICULT AND MAY RENDER THE APPLICATOR INOPERABLE.

  • Page 10: Maintenance

    Check the needle and fluid tip on a regular basis for excessive wear, and replace as necessary. See the ● cleaning instructions for the correct procedure for removing these parts. Replacement needle sets are available from Earlex Ltd. Keep all moving parts lubricated with a light smear of petroleum jelly. ●...

  • Page 11: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE ACTION REQUIRED The paint runs Paint too diluted Add undiluted material or sags? Paint volume Reduce the paint flow too high by turning Fluid Adjusting Screw Moving too slowly Increase speed of application Spray gun trigger being Release trigger earlier held for too long Spray gun too close...
  • Page 12 Whilst every possible care is taken by Earlex to ensure that our products leave the factory in good working order, Earlex cannot under any circumstances accept liability for problems or damage caused by their subsequent use.
