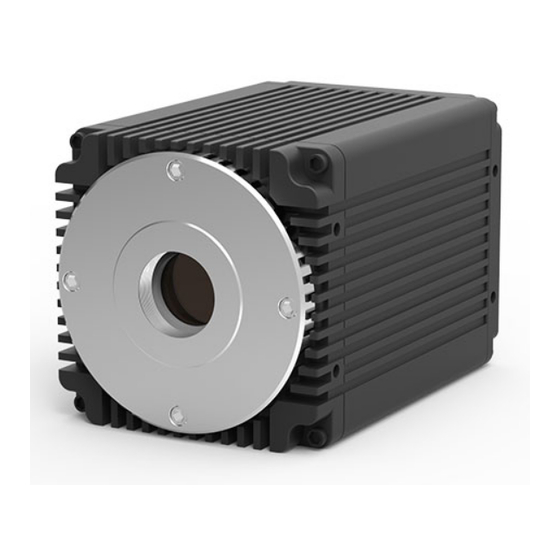

Tucsen Dhyana 400DC Quick Start Manual
  1. Manuals
  2. Brands
  3. Tucsen Manuals
  4. Digital Camera
  5. Dhyana 400DC
  6. Quick start manual

Tucsen Dhyana 400DC Quick Start Manual

Scmos camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Copyright © Tucsen Photoelectric Co., Ltd. , All rights reserved.
This guide is for information purposes only and does not constitute
any commitment.
If there is inconsistency between the image and the actual product,
the actual product shall govern.
Dhyana sCMOS camera
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dhyana 400DC and is the answer not in the manual?

Questions and answers

Related Manuals for Tucsen Dhyana 400DC

Summary of Contents for Tucsen Dhyana 400DC

  • Page 1 Copyright © Tucsen Photoelectric Co., Ltd. , All rights reserved. This guide is for information purposes only and does not constitute any commitment. If there is inconsistency between the image and the actual product, the actual product shall govern. Dhyana sCMOS camera...

  • Page 2: Table Of Contents

    Content 1. Instructions of camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2. Camera interface description - - - - - - - - - - - - - - - - - - - - - - - 3.

  • Page 3: Instructions Of Camera

    1. Instructions of camera Dhyana 400BSI V2 Dhyana 95 V2 Dhyana 4040 Dhyana 400D Dhyana 400DC Dhyana 401D/201D Key features Key features 1.2’’ sensor size 2’’ sensor size 3.2’’ sensor size 1.2’’ sensor size 1.2’’ sensor size 1.2’’ / 1’’ sensor size 6.5um pixel size...

  • Page 4: Camera Interface Description

    2. Camera interface description Dhyana 95 V2 Dhyana 4040 Serial No. Serial No. Part name Function Part name Function DC12V/8A DC12V/8A Power supply Power supply Switch Control camera power Switch Control camera power LED indicator LED indicator Indicates if the camera is working Indicates if the camera is working Cameralink interface Cameralink interface...
  • Page 5 2. Camera interface description Dhyana 400BSI V2 Dhyana 95 / Dhyana 400BSI / Dhyana 400D Data interface Water-cooled interface Data interface Serial No. Serial No. Part name Function Part name Function DC12V/8A Power supply DC12V/8A Power supply Switch Control camera power USB fixed hole Fixed USB 3.0 data cable...
  • Page 6 2. Camera interface description Dhyana 400DC Dhyana 401D/201D Data interface Serial No. Serial No. Part name Function Part name Function DC12V/8A LED indicator Power supply Indicates if the camera is working USB fixed hole Fixed USB 3.0 data cable USB3.0 interface Camera data transmission USB3.0 interface TRI_IN (Standard mode)

  • Page 7: Water-Cooled Interface Installation

    3. Water-cooled interface installation 3.2 Disconnect procedures of water-cooled pipe Currently only Dhyana 400BSI V2 and Dhyana 95 V2 offer water-cooled mode， 1、Disconnect power for camera and all other equipments including the circulating Installation schematic diagram is as follows water cooler.
  • Page 8 7、According to the experimental data, condensation water will occur in water valves 3.3 Installation precautions and water pipes under inappropriate environmental conditions, and there is a potential risk of damage to the equipment. In order to ensure the normal operation of 1、switching the cooling mode the equipment, the following provisions are made on the ambient temperature and humidity (refer to the figure below).

  • Page 9: Data Interface Installation

    USB interface with SS logo； (2) Dhyana 95/400BSI V1/400D/400DC only support USB3.0； (3) Dhyana 400BSI V2, Dhyana 95 V2 and Dhyana 4040 support both USB3.0 and Cameralink； (4) When USB3.0 and cameralink interfaces are connected at the same time, the default is USB3.0 interface.

  • Page 10: Software Installation

    5.3 The driver Installation of CameraLink 6. Software Installation 6.1. Double-click the software to start the installation and follow the [Next] button to Turn off the computer and open the cover of the host. Select the appropriate PCIe finish the installation. slot (Bandwidth is more than 850 MB/s) to insert the CameraLink frame grabber.

  • Page 11: Maintenance

    1.Avoid removing the lens cap in a dusty environment. Tucsen carries out two years of free warranty service, warranty starts from the date of product acceptance. Except for the special provisions of the contract, 7 days after 2.When removing the lens cap or mounting a lens, hold the camera face down to prevent dust from falling on the sensor surface.

  • Page 12: After-Sale Support

    1. Obtain software-related information and technical support information from the official website [support] -> [FAQ]. 2. Contact technical support: ·TEL: +86-591-88194580-811 ·Email: service@tucsen.com ·Or landing the official website to leave a message: http://www.tucsen.com. please have the following information prepared: 1)Camera model and S/N (product serial number);...
