- Page 1 FL 26BW User Manual V1.0.0 Copyright 2011-2024 Tucsen Photonics Co., Ltd. All rights reserved. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 2: Table Of Contents
3.14.2. Trigger Output Sequence Diagram ....................30 3.15. Cooling ..............................30 4. Installation ..............................32 4.1. Camera installation ............................ 32 4.2. Camera USB driver installation ........................33 4.3. Software installation and uninstallation ....................35 4.3.1. Installation ............................35 Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 3 8. After-sales Support ............................. 44 Appendix 1: Dimensions ..........................45 Appendix 2: Specifications ..........................46 Appendix 3:Third party software applications ....................48 Appendix 4: Third party certification ......................49 Appendix 5: Update log ..........................51 Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 4: Introduction
In any case, TUCSEN shall not be liable for any losses or damages arising from or related to the unauthorized use of the content of this document, whether direct, indirect, special, incidental, consequential or other reasons, whether caused by infringement or other reasons. - Page 5 3) This document may contain technical or printing errors. Under no circumstances shall TUCSEN be liable for any loss or damage caused by unauthorized use of the content of this document, whether direct, indirect, special, incidental, consequential or otherwise.
-
Page 6: Safety And Warning Information
⚫ Please ensure that there is at least 10 cm of space around the device ventilation opening to ensure airflow flow. Do not block the ventilation openings of the equipment during use, otherwise it may cause internal temperature to be too high and damage the equipment. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 7 ⚫ If the voltage applied to the camera is greater than or less than the nominal voltage of the camera, the camera may be damaged or malfunction. Caution ⚫ Please refer to the specification table for the nominal voltage of the camera. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 8: Product Specifications
USB flash drive Software and Drivers Silver color pan head Phillips with washer mechanism screws (Cross M3*14mm recessed pan head with washer screws) M3*6+3mm; Diameter Single head hexagonal of opposite side: studs Ф4.7mm Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 9: Quantum Efficiency Curve
2.2. Quantum efficiency curve Figure 2-1 Quantum efficiency curve of FL 26BW 2.3. Window curve Figure 2-2 Transmission curve of a standard glass window Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 10: Camera Power And Signal Connection
Pin1:Trigger In, External trigger interface Pin2,Pin3:GND, Pin4:Exposure Start Default corresponds to Port3 of the software Pin5:Readout End Default corresponds to Port1 of the software Pin6:Global Exposure Default corresponds to Port2 of the software Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 11 If the software has been shut down but the camera light remains orange, it indicates that the camera has not been fully released and needs to be completely exited from the camera thread or be restarted before the indicator light will return to red. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 12: Features And Functions

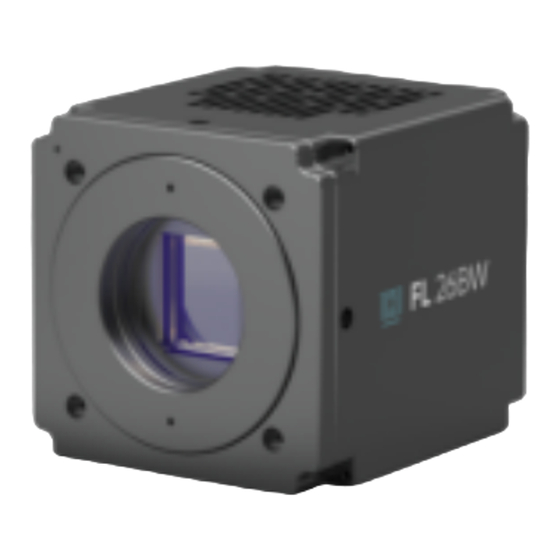

3. Features and Functions 3.1. Camera Introduction The FL 26BW camera utilizes a SONY back-illuminated CMOS chip for excellent imaging performance. The camera has a quantum efficiency of 92%, a low readout noise of 0.9 e-, and no glow. The dark current level is as low as 0.0005 e-/p/s, equivalent to that of a depth-cooled CCD, which provides good performance support for long-exposure imaging. - Page 13 5) Data output: Processed image data can be transmitted to computers or other devices for display, analysis, and storage through various interfaces such as USB, Ethernet, etc. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 14: Shutter Mode
3.3. Shutter Mode The FL 26BW camera supports Rolling shutter readout and Global Reset readout. In Rolling shutter readout, the camera reads out rows sequentially, with different rows exposed at the same time, but with different starting exposure time points between rows, and the difference... -
Page 15: Front-Illuminated And Back-Illuminated Cmos Technology
FL 26BW camera adopts a back-illuminated chip, achieving a peak QE of around 92%. Figure 3-5 Front-Illuminated and Back-Illuminated diagram. Technical Support Email: service@tucsen.com... -
Page 16: Readout Noise
(σ) reflects the value of the readout noise for the corresponding pixel. 3.6. Defective Pixel Correction (DPC) There are always a few abnormal values on the CMOS camera chip. Through the camera's Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 17: Gain Mode
3.7. Gain Mode The FL 26BW camera can be selected with four gains, Gain0, Gain1, Gain2 and Gain3, and there are differences in readout noise and saturation capacity under different gains, so it is necessary to select the appropriate mode according to the actual scene to obtain high-quality imaging results. - Page 18 6240 85.8 84.8 6240 148.0 138.1 6240 272.2 255.4 272.2 255.4 Table 3-3 Measured frame rates for typical ROI areas at 6240x4168 (Low Noise) resolution for the FL 26BW Resolution Column(Pixel) Row(Pixel) Rolling GlobalReset 6240 4168 6240 2084 6240 1040 13.0...
-
Page 19: Binning Readout
1031.6 Note: 1) The minimum supported ROI for FL 26BW on Mosaic V3 is: 32 (columns) x 32 (rows). 2) The frame rate is affected by the configuration of the computer system, it is recommended to use it on a computer with an i5 processor or above and a 64bit system. - Page 20 The software Binning seclection on Mosaic V3 is shown below: Figure 3-8 The FL 26BW camera also supports Chip Binning, which can be selected at the resolution option (SenBin), and with this method the frame rate can be improved to some extent: Figure 3-9 Technical Support Email: service@tucsen.com...
-
Page 21: Timestamp
[.csv] format file. Figure 3-10 Timestamp Export Schematic Note: Applications requiring timestamp functionality generally have high time precision requirements, and it is recommended to use the To RAM image storage mode. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 22: Frame Rate Calculation
Standard line 85.8 272.2 4168 2084 1040 69.3μs 1/(T *(Vn+74)) 6240 24.3 line Noise 43.3 71.9 136.8 2084 35.5 1040 min{1/(Vn/3000/Y SenBin 12.58μs 3120 265.3 ),1/(T *(Vn+40))} SenBin line 473.4 764.3 1103.6 Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 23 (T ) is greater than the readout time, Rolling mode frame rate = 1/ (s); ） The above formula is for reference, Standard mode frame rate is affected by both Sensor Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 24: Incident Photon Calculation
"internal trigger" (live mode), users can click Live/Stop to control the camera to turn on and off the live mode, and click Capture to get the image. Figure 3-11 Users can set the exposure time, working mode and other camera parameters, and preview Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 25: Software Trigger Mode
Snap of the output of only one picture. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 26: Hardware Trigger Mode
Figure 3-15 Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 27 8 line cycles T .Therefore, the total delay time of the external trigger logic input to the beginning of the exposure T idelay logic Figure 3-17 Rolling Mode Trigger Delay Schematic Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
- Page 28 Level trigger mode is not for continuous shooting, and is often used to take pictures of stationary or slow moving objects. Figure 3-19 Level Trigger Mode Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
- Page 29 Figure 3-20 Edge Trigger Mode The FL 26BW camera supports single-trigger multi-frame acquisition, which can be modified by setting the frame/signal in the standard trigger mode (refer to Figure 3-15) to modify the...
-
Page 30: Trigger Output
Figure 3-21 Single-trigger multi-frame acquisition timing diagram 3.14. Trigger Output 3.14.1. Hardware Trigger output circuit Figure 3-22 Note: The camera's external trigger output level is a fixed value of 3.3V and supports a maximum drive current of 20mA. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 31: Trigger Output Sequence Diagram
Camera cooling can effectively minimize the "dark current noise" and the effect of hot pixels. The camera adopts semiconductor refrigeration, using the Peltier effect, composed of N, P- type materials, a pair of thermocouples, when the thermocouples into the DC current, due to Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 32 The FL 26BW camera is air-cooling. The air inlet and outlet markings in air-cooled mode are shown below.
-
Page 33: Installation
4. Installation 4.1. Camera installation Figure 4-1 FL 26BW Camera Connection Diagram ① FL 26BW Camera ② Power adapter ③ USB 3.0 data cable Connect one end of the USB 3.0 data connection cable to the PC, the USB needs to be connected to the USB 3.0 port on the back of the host. -
Page 34: Camera Usb Driver Installation
(4) Selecting the contents of the installation, by default check the box to install Microsoft runtime libraries vcredist_2008 and vcredist_2013, unchecking the box may result in the software or third-party plug-ins not working; Figure 4-3 (5) Waiting for the driver installation to be completed; Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 35 If a yellow symbol appears, it indicates that the driver needs to be reinstalled. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 36: Software Installation And Uninstallation
(3) Select the installation content. By default, select the option to install drivers and Microsoft runtime library vc-redist_2015, canceling the installation can result in the camera not being recognized by the software; Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 37 Figure 4-8 (4) Configure installation parameters and select whether to generate desktop shortcuts; Figure 4-9 (5) After confirming all installation parameters, click "Install" to start executing the installation action; Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 38: Uninstallation
There are three ways to uninstall Mosaic software: (1) By uninstalling through the installation package, the existing version on the computer will be uninstalled when the installation package runs, and the default C drive path will take effect; Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 39 (2) Under the installation path, find unins000.exe to uninstall, double-click uninstall; Figure 4-13 (3) Uninstall from the computer program management interface; Note: After uninstalling and reinstalling the software, all software configuration information and calibration table data will be deleted. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 40: Maintenance
4) After wiping, use air blowers and other items to let the alcohol evaporate completely before continuing to use the window surface. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 41 2) If the dirt still exists after following the above steps, try wiping again according to the above steps. If this does not solve the problem, consider that the chip is internally dirty. Please be sure to contact us at this time. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 42: Troubleshooting
3) Make sure you are using the correct data transmission interface, USB needs to use USB3.0 interface, if you use a non-3.0 interface, the frame rate may not be able to reach the nominal frame rate; Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 43 4) If you are using USB3.0 interface, but adapted HUB/extension/expansion operation, it will also lead to failure to achieve the nominal frame rate. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 44: Faqs
If it is an ambient light source, turning off the illumination source is sufficient. If from an irradiated sample light source, a regulated light source is required for illumination. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 45: After-Sales Support
3) Contact technical support: ⚫ TEL: +86-591-28055080-818 ⚫ Email: service@tucsen.com ⚫ Or landing the official website to leave a message: http://www.tucsen.com. 4) Please have the following information prepared: ⚫ Camera model and S/N (product serial number); ⚫ Software version number and PC system information;... -
Page 46: Appendix 1: Dimensions
Appendix 1: Dimensions Unit: mm, Diameter: ø. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 47: Appendix 2: Specifications
2 × 2, 3 × 3, 4 × 4, 5 × 5, 6 × 6, 8 × 8, 16 × 16 Cooling Method Air cooling Max. Cooling Below ambient temperature 47°C Trigger Mode Hardware, Software Output Trigger Signals Exposure start, Global, Readout end, High, Low Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 48 Power Consumption Dimensions 85 mm x 85 mm x 97 mm Weight 945 g Operating System Windows/Linux Note: The parameters in this table are typical values and are subject to change without notice. Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 49: Appendix 3:Third Party Software Applications
Appendix 3:Third party software applications Provide plugins for third-party software (LabVIEW, Matlab, Micro-Manager, etc.). Please click the link to download the configuration:Tucsen camera software download - Tucsen Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... -
Page 50: Appendix 4: Third Party Certification
Appendix 4: Third party certification Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826... - Page 51 Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
-
Page 52: Appendix 5: Update Log
Appendix 5: Update log Version Date Modify Content V1.0.0 2024-5-31 Create documents Technical Support Email: service@tucsen.com TEL: +86-591-28055080-818 Fax: +86-591-28055080-826...
