Tucsen HD1600T Quick Start

Camera installation
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Enlarged version
HD1600T Quick Start

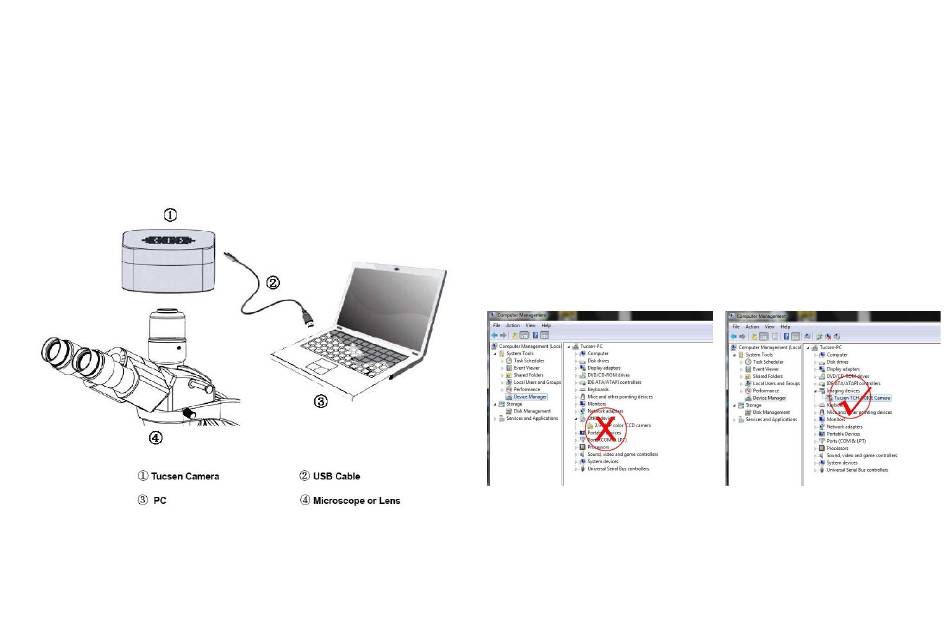

Camera Installation

Driver Installation

1. Connect the camera to the PC. Insert the CD comes with the
camera, copy the driver "Tucsen Camera Driver (H Series) Setup.exe"
to the computer. Double click on it to start the installation. Follow the
[Next] button to finish the installation.
2. Go to the Device Manager and check whether the driver is
installed properly. If there is
under
Imaging Device in Device
successfully (see Figure 1).
NO YELLOW FLAG
with the camera
Manager, the driver is installed

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD1600T and is the answer not in the manual?

Questions and answers

Related Manuals for Tucsen HD1600T

Summary of Contents for Tucsen HD1600T

  • Page 1: Driver Installation

    HD1600T Quick Start 1. Connect the camera to the PC. Insert the CD comes with the camera, copy the driver “Tucsen Camera Driver (H Series) Setup.exe” to the computer. Double click on it to start the installation. Follow the Camera Installation [Next] button to finish the installation.

  • Page 2: Software Installation

    created on the desktop. Software Installation Note: If previous version ISCapture was installed in your PC, the 1. Copy the software ISCapture installer to the PC. Double-click on it installer will automatically detect it and ask to remove it first before to start the installation.
  • Page 3 If get the “No Camera” or “Initialization Failed” error, it could be the camera is not detected by the PC or the driver is not installed properly. Please go to Device Manager to check the camera driver installation status. Normally Auto Exposure function can get proper brightness preview. ISCapture Parameter Settings If preview is still dark, manually set Gain...
  • Page 4 Click the Lock tag to lock/unlock the preview and capture To get better white balance result, please move the sample to the blank area and then hit White Balance button, then move back the resolution. Unlocking it allows to set different preview and capture sample.
  • Page 5 Every time click Capture button , the file save dialog will pop up to ask to set file name, save directory and image format. b. Select Use File Save Dialog to use pop up dialog to set capture image file name, save directory and format.
