KITE Ceiling

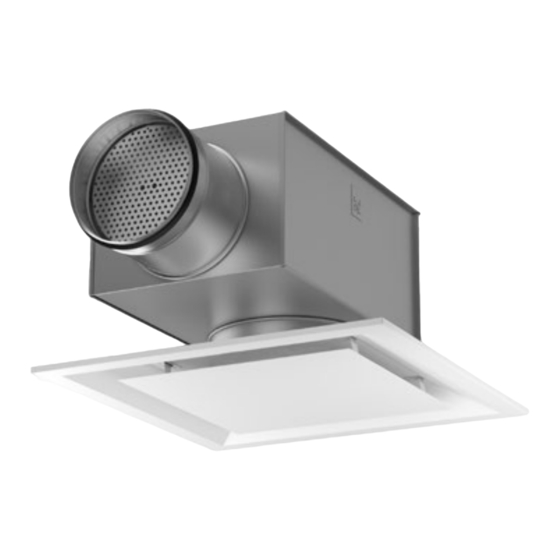

Square ceiling diffuser for supply air
QUICK FACTS
○
Square slot diffuser designed for suspended ceiling
system 600x600
○
Flush design
Supply air diffuser also works for extract air
○
Easy Access gives fast and easy installation and com-
○
missioning
Commissioning box ALS with one- or two-dimensional
○
changes between duct and air diffuser connection
Available in a version with low installation height
○
Standard colour White RAL 9003
○
-
5 alternative standard colours
-
Other colours upon request
AIR FLOW - SOUND PRESSURE ROOM (Lp10A) *)
25 dB(A)
KITE CR
Size
l/s
125-600
53
160-600
66
200-600
88
250-600
114
315-600
125
25 dB(A)
KITE CR
ALS
Size
Size
l/s
125-600
100-125
33
160-600
125-160
47
200-600
160-200
75
250-600
200-250
101
315-600
250-315
129
The table shows supply air data for fully open damper.
*) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m
room's absorption area.
30 dB(A)
35 dB(A)
m
3
/h
l/s
m
3
/h
l/s
191
63
227
73
238
76
274
87
317
102
367
119
410
132
475
153
450
147
529
174
30 dB(A)
35 dB(A)
m
/h
l/s
m
/h
l/s
3
3
119
39
140
47
169
56
202
67
270
87
313
102
364
118
425
137
464
149
536
172
m
3
/h
263
313
428
551
626
m
/h
3
169
241
367
493
619
