Swegon CASA
Ventilation unit with rotary heat exchanger
►
Ventilation unit for residential houses, multi-storey
buidings and holiday cottages under 170 m
is equipped with rotary heat exchanger. Suitable also
for renovation projects.
►
Maximum air volume: 80 l/s.
►
Temperature efficiency: up to 80 %.
►
Low sound level.
►
For installation in a kitchen, machine room, storage
space, laundry room, etc.
►
Can also be located together with a cooker hood at
the place intended for a spice rack above the cooker.
►
The extract air from the cooker hood can be con-
nected at the bottom or the top, and it does not pass
through the heat exchanger.
►
The ventilation system can be controlled from a sepa-
rate control panel or from the cooker hood.
►
Premium control engineering.
R85B_f_EN-p
R85
®
. The unit
2
HOME VENTILATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swegon CASA R85 Series
Summary of Contents for Swegon CASA R85 Series

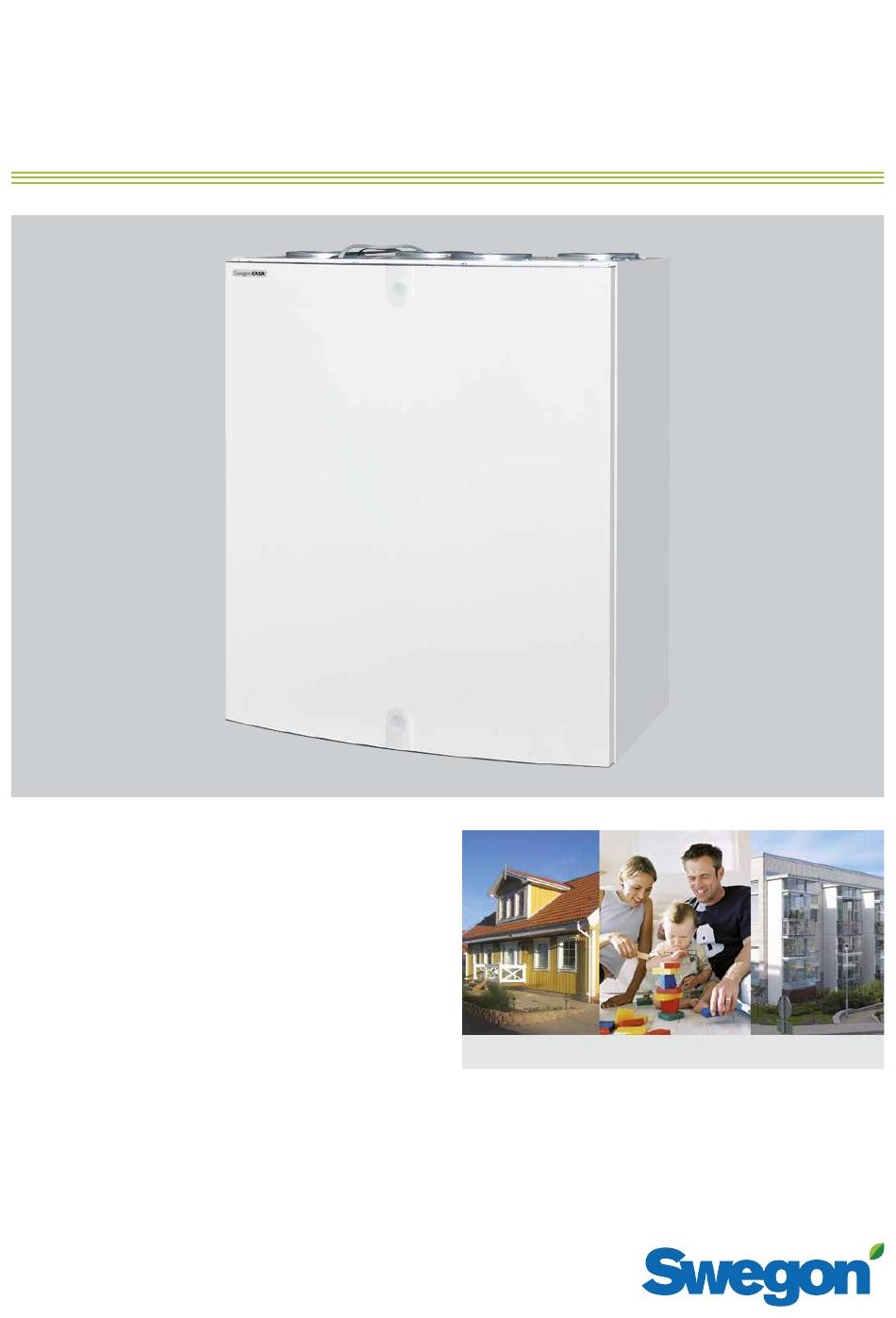

- Page 1 Swegon CASA ® Ventilation unit with rotary heat exchanger ► Ventilation unit for residential houses, multi-storey buidings and holiday cottages under 170 m . The unit is equipped with rotary heat exchanger. Suitable also for renovation projects. ► Maximum air volume: 80 l/s.
-
Page 2: Technical Data
HOME VENTILATION Technical data General The Swegon CASA R85 is an ideal ventilation unit for homes and similar premises. The unit has a RECOnomic rotary heat exchanger for high heat recovery performance. The ventilation unit is designed to be mounted on a wall by means of the wall mounting bracket supplied with the unit. - Page 3 There are also flows below the pressure equalizer in the heat exchanger and the heat recovery efficiency is thus not affected. The R85 wall-mounted in a laundry room. Swegon reserves the right to alter specifications. www.swegon.com...
-
Page 4: Control System
The fan speed can be selected. • Cooling energy recovery In the summer, when the indoor air is cooler than the outdoor air, the heat exchanger starts up. Swegon reserves the right to alter specifications. www.swegon.com/... - Page 5 • Humidity sensor. The sensor detects when the humidity rises and transmits a signal to the ventilation unit to increase the fan speed. It can be located in a sauna, a bathroom, a laundry room, etc. Swegon reserves the right to alter specifications. www.swegon.com...
-
Page 6: Optional Equipment
Replacement filters There are 2 class F7 fine filters in the set of filters. Mounting frame with moisture barrier Swegon reserves the right to alter specifications. www.swegon.com/... - Page 7 The ventilation unit is a part of an economical and attractive ventilation system for homes. Swegon offers a complete series of products for home ventila- tion. In that all the components are supplied by the same sub- contractor, you are assured that they operate reliably together and this enables you to select properly sized products.
-
Page 8: Installation
The ventilation unit can receive a status signal from the cooker hood, to activate the negative pressure compensation function when the power roof ventilator starts up. 3. Separate controllable cooker hood and power roof ventilator. Swegon reserves the right to alter specifications. www.swegon.com/... - Page 9 500 W Total output 250 W 750 W Cooker hood 15 W 15 W 265 W 765 W Total output with cooker hood * connected to the bottom of the R85 vetilation unit Swegon reserves the right to alter specifications. www.swegon.com...
-
Page 10: Acoustic Data
Sound power level broken down into octave bands, L , dB Weighted sound wokt setting power level , dB(A) 63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz Swegon reserves the right to alter specifications. www.swegon.com/... - Page 11 Mounted on cabinet together with a wall the cooker hood *) Equivalent to a normally insulated room. If the values are changed to , dB(A)-values, 4 units (dB) should be added to them. Swegon reserves the right to alter specifications. www.swegon.com...
-
Page 12: Power Connection
Cable with modular connectors for entering settings or service work Mains power plug connection 230 V, 10 A Cooker hood Premium Modbus gateway. (no provision for power control panel cord extension) Modbus RTU Swegon reserves the right to alter specifications. www.swegon.com/... - Page 13 - Control of fan speed - Control of temperature Misc. When the control voltage is interrupted, 2 x 0.5 the control system returns to the user mode for use by the occupants. Swegon reserves the right to alter specifications. www.swegon.com...
- Page 14 4 x 0.5 W130 EC - Emergency stop W230 EC - Operating status/fans R85 EC - Operating status/temperature Presence detector R120 EC 4 x 0.5 Misc. 2 x 0.5 2 x 0.5 Swegon reserves the right to alter specifications. www.swegon.com/...
- Page 15 This is important, since extra bends in the ducting increase the Bottom pressure and the fans have to overcome a heavier load. Swegon CASA R85 L Swegon CASA R85 R Swegon reserves the right to alter specifications. www.swegon.com...
- Page 16 Mounting frame with moisture barrier PR085YP ∅ 100 mm 102LT10 Water trap ∅ 125 mm 102LT12 Front plate of the front panel ∅ 160 mm 102LT16 Stainless steel PR085B6R Filter set, 2 pc. F7 PR085FS Swegon reserves the right to alter specifications. www.swegon.com/...
