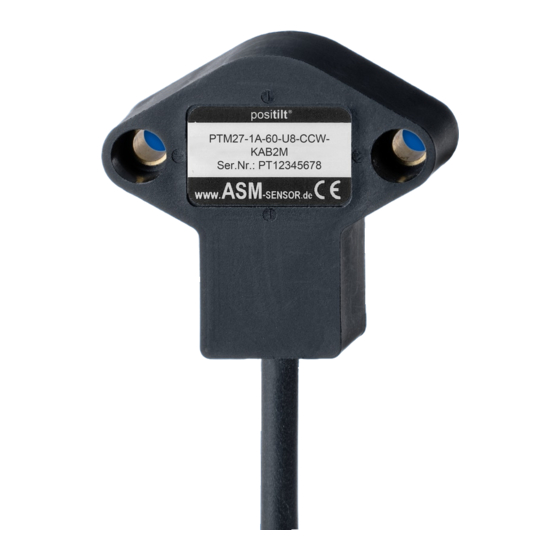

ASM positilt PTM27 Installation And Operation Manual

ASM positilt PTM27 Installation And Operation Manual

Inclination and gyro-compensated inclination sensors

Advertisement

Quick Links

positilt
®
Inclination Sensors
positilt
®
Gyro-compensated Inclination Sensors
Installation and operation manual
Please read carefully before installation and operation!
PTM Series
PTK Series
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the positilt PTM27 and is the answer not in the manual?

Questions and answers

Summary of Contents for ASM positilt PTM27

  • Page 1 positilt ® PTM Series Inclination Sensors positilt ® PTK Series Gyro-compensated Inclination Sensors Installation and operation manual Please read carefully before installation and operation!
  • Page 2 © ASM Automation Sensorik Messtechnik GmbH, 2020 All rights reserved. Am Bleichbach 18 - 24 85452 Moosinning Germany...
  • Page 3: Table Of Contents

    3.4 Position of the inclination axis and output characteristics ............... 8 4 Maintenance and disposal ..................13 4.1 Maintenance and disposal ......................13 4.2 Disposal ............................13 5 Output specification ....................14 5.1 Analog output (only PTM sensors) ....................14 5.2 Digital output ..........................17 Version 1.0.0 www.asm-sensor.com...
  • Page 4: Safety Instructions

    Check whether the protection class of the sensor is suitable for the application. Mechanical damage or destruction of the sensor Do not open the sensor. • Avoid impact and shock to the sensor. • Pos : 11 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 5: Intended Use

    The specified torques and mounting methods are general recommendations and can differ according to application and operating conditions. Mounting method Torque [Nm] Screws M4 Pos : 18 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 6: Electrical Connection

    It is important that the knurled nuts on the connectors are tightened to the correct • torque for each different size of the connector: • M12-ASM connectors / couplings: 1.0 Nm connectors / couplings of other manufacturers: according to manufacturer • instruction.
  • Page 7: Operating Temperature

    -40 … +85°C ® positilt PTK29 -40 … +85°C ® positilt PTK6 -40 … +85°C ® positilt PTK7 -40 … +85°C ® Pos : 23 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 8: Position Of The Inclination Axis And Output Characteristics

    Sensor position as shown equals 0°. 1 Measuring axis 2 Measuring axes Axis orientation Axis orientation Axis orientation Axis orientation Axis orientation Axis orientation Output signal Pos : 26 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 9 Sensor position as shown equals 0°. 1 Measuring axis 2 Measuring axes Axis orientation Axis orientation Axis orientation Axis orientation Axis orientation Axis orientation Output signal Pos : 28 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 10 For CAN output, the axis orientation can be set by the user via software. Sensor position as shown equals 0°. 2 measuring axes Axis orientation 2A Axis orientation 2B Axis orientation 2C Output signal Pos : 30 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 11 Sensor position as shown equals 0°. 2 measuring axes Axis orientation 2A Axis orientation 2B Axis orientation 2C A = Marking Output signal Pos : 32 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 12 For CAN output, the axis orientation can be set by the user via software. Sensor position as shown equals 0°. 2 measuring axes Axis orientation 2A Axis orientation 2B Axis orientation 2C A = Marking Output signal Version 1.0.0 www.asm-sensor.com...
  • Page 13: Maintenance And Disposal

    Damaged parts: Put sensor out of Loose mounting parts: Screw service and replace damaged tight mounting parts with parts resp. send sensor to ASM recommended torque, if for repair applicable use bolt adhesive Pos : 36 /Bedienungs anl eitungen/Posiwire/W S_Ents orgung @ 6\mod_1507649730932_78.docx @ 48485 @ 2 @ 1 4.2 Disposal...
  • Page 14: Output Specification

    Stability (temperature) ±50 x 10 / °C f.s. (typical) Protection Reverse polarity, short circuit Operating temperature -40 … +85 °C DIN EN 61326-1:2013 Pos : 43 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 15 Signal wiring Output signals Cable color 2 axes (excitation voltage) brown Output X white blue OUTPUT Y black Do not connect! grey Pos : 46 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 16 (excitation voltage) brown Analog output X axis white blue Analog output Y axis black Do not connect! grey View to the sensor connector Pos : 48 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 17: Digital Output

    100 mA max. Measuring rate 0.5 kHz standard Stability (temperature) ± 0,2° (-20 … +40 °C) ± 0,4° (-40 … +85 °C) Repeatability 1 LSB Operating temperature -40 … +85 °C Protection Reverse polarity, short circuit DIN EN 61326-1:2013 Version 1.0.0 www.asm-sensor.com...
  • Page 18 CANopen – Set up (MCANOP) Download • A detailed specification of this interface can be downloaded from the ASM website: www.asm-sensor.com/en/downloads.html > Configuration files Risk of injury by unexpected machine movement Change parameters only when machine is in a safe condition! •...
  • Page 19 Byte 3 A0h+n Identity Number n..nh Byte 2 Byte 1 Proprietary PGN - Configuration data PGN EFddh Proprietary-A Manufacturer (PDU1 peer-to-peer) specific Parameter Process data PGN FFnnh Proprietary-B Group Numbers (PDU2 broadcast); nn Group Extension (PS) configurable Version 1.0.0 www.asm-sensor.com...
  • Page 20 Pos : 54 /Bedienungs anl eitungen/Positape/SAE J 1939/SAE J 1939_setup @ 7\mod_1527060993387_78.docx @ 56033 @ @ 1 SAE J1939 – Set up (MCANJ1939) Download A detailed specification of this interface can be downloaded from the ASM website: • www.asm-sensor.com/en/downloads.html > Configuration files...
  • Page 21 0.5 m. Connect terminating resistors 120 Ohm at both ends of the trunk line. Termination resistor T piece CAN cable sensor Pos : 57 /########### Sei tenum bruch ################################### @ 0\mod_1353584168894_0.docx @ 336 @ @ 1 Version 1.0.0 www.asm-sensor.com...
  • Page 22 150 years Working life 20 years Service and calibration interval annually Reference conditions 60°C Temperature ϑ Supply voltage U 24V±10% Standards Failure rate of electronic SN29500 components (Siemens) === Ende der Liste für T extm arke Inhalt === Version 1.0.0 www.asm-sensor.com...
  • Page 23 ® Inclination Sensors PTM series Gyro-compensated Inclination Sensors PTK series Version 1.0.0 www.asm-sensor.com...
  • Page 24 Tel. +44 845 1222-123 Tel. +49 8123 986-0 Fax +1 630 832-3204 Fax +44 845 1222-124 Fax +49 8123 986-500 info@asmsensors.com info@asm-sensor.com info@asm-sensor.com © ASM Automation Sensorik Messtechnik GmbH, 2020 All rights reserved. Subject to changes without notice. See protection note DIN34.
