Weekly cleaning
procedure
A-61557 December 2006
A weekly cleaning should be performed approximately every fourth
regular cleaning cycle.
1. Before starting this procedure, perform the daily cleaning procedure
as outlined in the previous section.

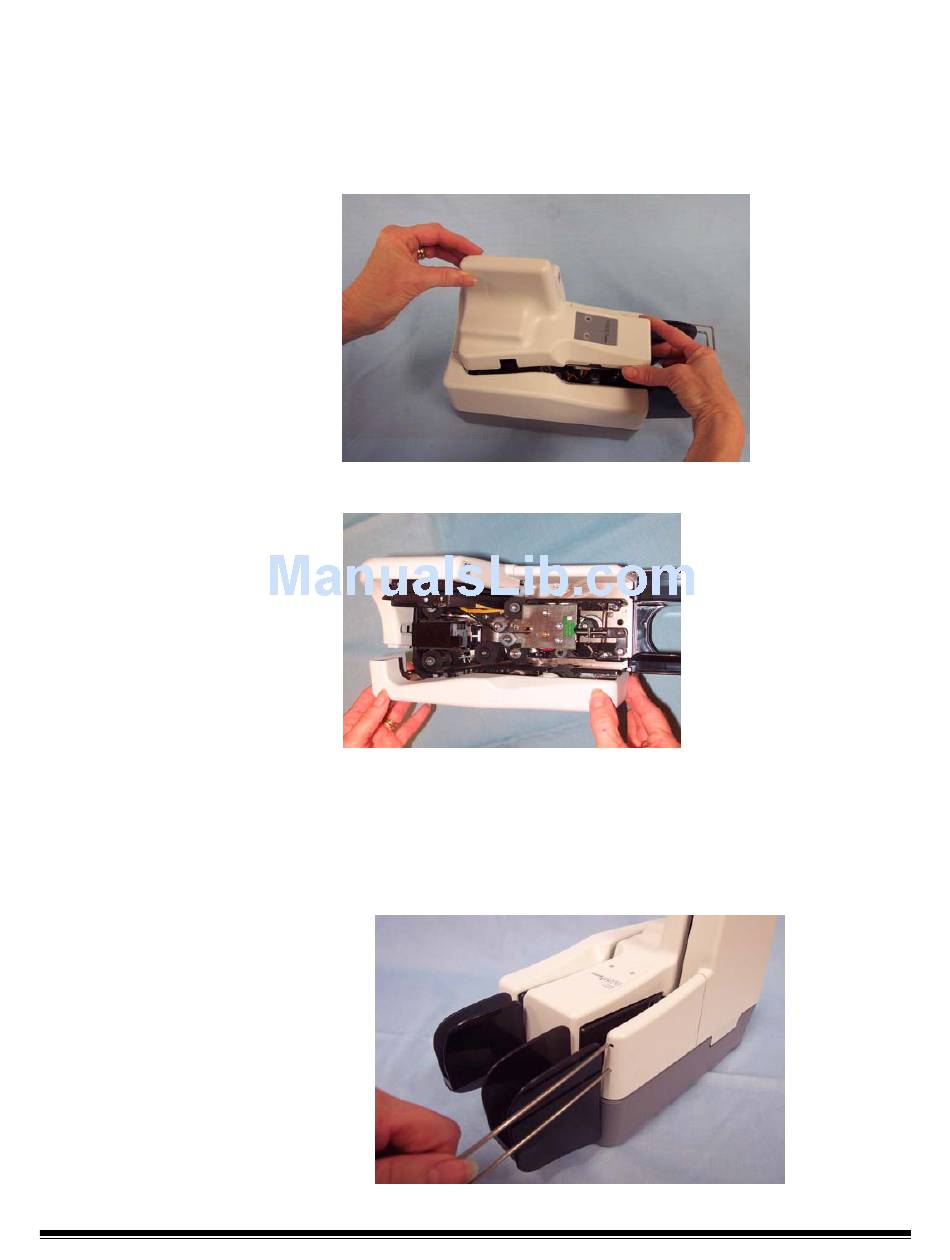

2. Turn the scanner off.
3. Remove the scanner top cover.
4. Lift and remove the side cover.
5. Pull the exit stop wire out about 4 inches to provide adequate
clearance for removing the back cover.
NOTE: Do not remove the exit stop wire from the scanner. If you should
accidently remove it, when you reinsert it you will need to align
the exit wire with the holes in the scanner and wiggle it back into
place.
