Scanner components

A-61557 December 2006

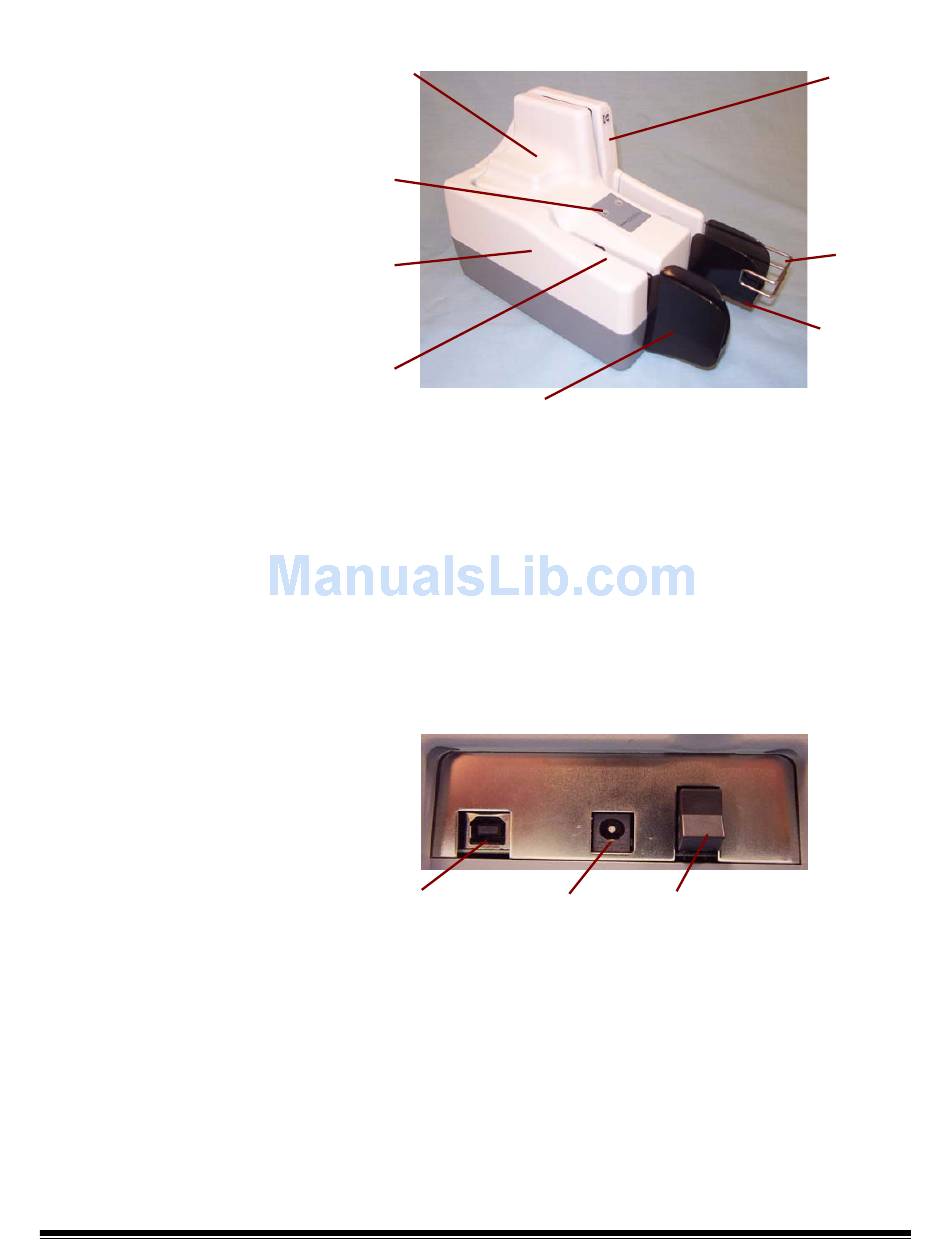

Front view
Scanner top
cover
Indicator
lights
Side cover
Automatic
feeder
Automatic feeder and input tray — depending on the document
thickness and condition, holds up to 50 documents. Place documents in
the input tray for scanning ( i6060 and i6090 Scanners only) .
Indicator lights (LEDs) — illuminates or flashes indicating scanner
status. See Chapter 5, "Indicator lights" for more information.
Exit tray/Exit stop wire — collects the scanned documents.
Scanner covers — the scanner has three scanner covers (top, side
and back covers) which can be removed for maintenance or clearing
document jams.
Back view
USB port
USB port — connects the scanner to the PC.
Power port — connects the power cord to the scanner.
Power switch — turns the scanner on and off.
Input tray
Power switch
Power port
Back
cover
Exit
stop
wire
Exit tray
19
