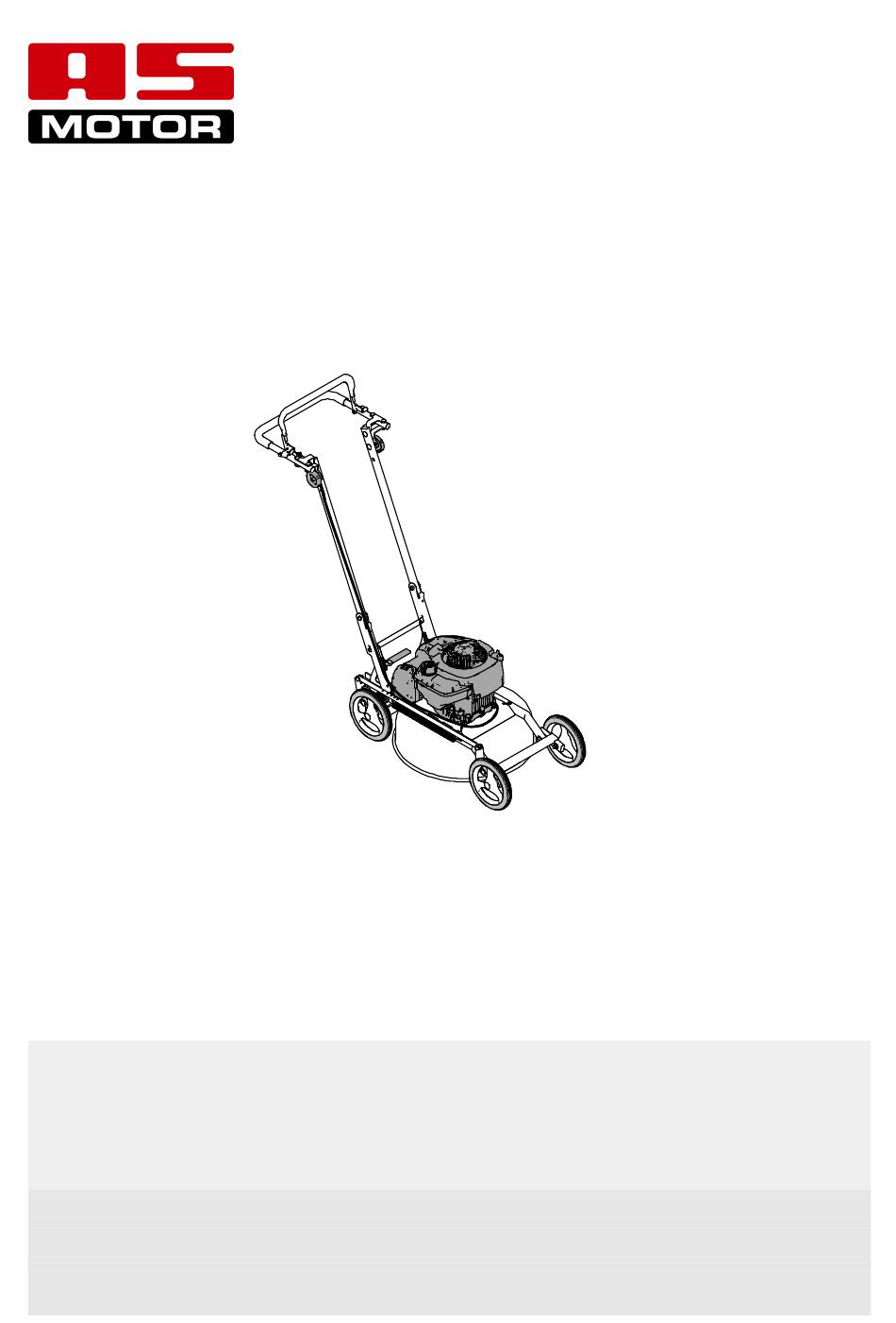

- Page 1 Operating Instructions Mulching Mower AS 420 4T, AS 470 4T From serial number: 420 4T: 032418050001, 470 4T: 033318100001 Issued: 09 January 2020, V8.1 EN-Translation of the Original Operating Instructions...
-
Page 2: Notes On The Operating Manual
dummy Intended use Notes on the operating manual The device is exclusively intended for mowing well maintained grassed lawn areas. Dear customer, Any other use exceeding this purpose is inad- Congratulations on your purchase. You have missible. acquired a reliable quality product by “AS-Mo- Observe the instructions chapter for Mainten- tor Germany”. -
Page 3: Table Of Contents
Contents Maintenance..........Notes on the operating manual..... Maintenance overview......18 Contact ............ Cleaning the device......... 20 Device data..........General inspection........20 Maintaining the engine......20 Intended use..........Checking the engine oil level....20 Explanation of the symbols....Checking the spark plugs......21 Symbols in the instructions...... -
Page 4: Explanation Of The Symbols
dummy Inhaltsverzeichnis Notice! Explanation of the symbols Danger of property damage Indicates a possible risk of damage Symbols in the instructions of the device and its surroundings. In these operating instructions, the following symbols are used to denote special dangers. Signs on the device Warning. - Page 5 Clean the ventilation grid! The cooling air of the mo- tor is sucked in through the ventilation grid of the engine cover. Always keep the entire surface open and free! Noise is causing health prob- lems. Use personal ear protec- tion to avoid hearing damage.
-
Page 6: Safety Instructions
Safe handling of fuel Safety instructions Fuel is toxic and highly flammable. There is a Get informed! burn and explosion hazard! Keep fuel away from ignition sources and do For your safety, read these operating instruc- not smoke during handling. tions carefully. -
Page 7: Check The Device Prior To Use
First aid Danger area When swallowing fuel or inhaling fuel vapours, do not force vomiting and immediately consult a doctor. In case of skin contact, immediately wash with water and soap. Change your soiled clothing as soon as you can. Measures in case of a fire In case of a fire, use foam, dry powder extin- guisher, or carbon dioxide (CO... -
Page 8: Use Caution During Operation
Use caution during operation Prior to mowing Danger of injury during motor start Personal protective measures Do not start the engine During mowing, always wear – if fuel was spilled. safety shoes with good grip and long trousers. Do not mow with –... -
Page 9: Caution When Mowing Slopes
Mowing surfaces with fire hazard – Carry a sufficient amount of suitable extin- guishing agent. – If side inclination is too great, fuel may leak Fig. 2: from the carburetor or the tank. This poses a Avoid mowing damp grass, there is a sliding fire hazard! risk! –... -
Page 10: When Work Is Completed
Devices fitted with a four stroke engines may Use caution during maintenance only be operated on less than 20° slopes. Oth- and repair erwise, the four stroke engine can by damaged Only carry out work as described in these op- due to insufficient oil lubrication. -
Page 11: Device Description
Device description Fuel valve Cutting height adjustment (40 mm, 50 mm, 60 mm, 70 mm, 80 mm) Air filter Spark plug connector Type plate Guide bar with control elements Bar release Starter grip Silencer 10 Ventilation grid 11 Tank filler spout 12 Oil filler opening 13 Cover... -
Page 12: Control Elements
Mounting handlebar one position lower Control elements Fig. 5: 1. Unscrew the knob (2) from the left and right guide bar. 2. Unscrew the screw (1) from the left and right guide bar. Engine brake lever (1) 3. Screw the screws (1) back down on posi- The engine brake lever is a guard device. -
Page 13: Information On Mowing
Recommendations for mowing with Information on mowing mulching mowers: – Mow only 1/3 of the grass height. Prior to mowing, check your device for com- pleteness, proper functioning, and cleanliness. – Do not set the brush height to the lowest po- A dirty ventilation grid causes overheating of sition. -
Page 14: Prior To Starting
Adjusting cutting height Prior to starting Adjust the cutting height setting only when the Fuel engine is switched off. As fuel, use unleaded petrol (see operating in- Set the cutting height so that the blade does structions of the engine manufacturer). not touch the ground even in case of terrain unevenness. -
Page 15: Starting
Starting Driving Danger! Danger! During startup, there is a risk of in- Risk of injury caused by tripping or jury caused by the rotating blade. sliding while pushing the mower, moving it backwards and turning it Make sure that no one is within the round. -
Page 16: Switching Off And Parking
Switching off and parking Transport Switch off the engine and wait until the blade Caution! comes to a stop before you lift the device. It On a slope, the device can roll takes two persons to safely lift the device. away. -
Page 17: Maintenance
Notice! Maintenance Risk of damage due to incorrect fastening of straps. Warning! Fasten the straps only at the points Risk of injury due to unexpected shown in the figure. movement. When inspections are carried out, the device can move un- Do not overtighten the straps. -
Page 18: Maintenance Overview
Maintenance overview Component Action Maintenance interval Device Check for safe working condition (basic inspection). ■ ▲ Clean. ■ Customer service. ▲ Fuel Check fuel level. ■ Is the tank cap closed? ■ Tank, fuel valve, Check parts for leaks and check for good condition. ■... - Page 19 Flammable material Remove easily flammable debris buildup from the engine ■ ▲ and the device. Tyres Check tyres and, if necessary, the tyre pressure. ■ ▲ Before and after each use. Annually or every 50 h. ■ By the user when the engine is not running. □...
-
Page 20: Cleaning The Device
Cleaning the device Check all parts that that contain fluids for leaks and proper condition. These can be: Fuel tank, fuel valve, fuel lines, carburetor, engine, gears, battery, hydraulic system. In case of leaks, contact an authorised service centre. Maintaining the engine Caution! If the speed is set too high, objects can be ejected. -
Page 21: Checking The Spark Plugs
Checking the spark plugs Checking the blade Danger! Warning! Wear or damage on the blades and The ignition system generates an the fastening elements can result in electromagnetic field. the blades or the fastening elements Wearers of pacemakers must not coming off. -
Page 22: Checking Engine Brake
The material weakens, can suffer cracks, en- Assembly dangering people and material assets. Ejected broken pieces can cause severe injuries. Scope of delivery Unusual vibrations are an indication that The device is shipped in a carton. – blades are missing or broken, The scope of delivery included: –... -
Page 23: Mounting Guide Bar And Handlebar
Mounting guide bar and handlebar Storage Storing the device Keep the device in a closed, dry, and well vent- ilated room and out of reach of children. Al- ways eliminate all problems of the device be- fore you store it so that the device is always in a safe-to-operate state. -
Page 24: Spare Parts
Spare parts Warranty The reliable and safe operation of the device Please see our AS-Motor website for warranty also depends on the quality of the spare parts information. used. Only use original spare parts and ac- Please print out the documents that you re- cessories that were approved by ceive during the online registration. -
Page 25: Troubleshooting
Troubleshooting The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. You can find an authorised service centre on our home page www.as-motor.de. Problem Possible cause Remedy Engine does not start Engine brake bar is not Press the engine brake bar towards the pressed. - Page 26 The blade slides Replace friction discs. Authorised service centre. Strong vibrations dur- Imbalance of the blade caused Have blade resharpened and balanced ing operation by incorrect sharpening or by an authorised service centre. Re- chips on the blade. place a damaged blade immediately. Blade drive shaft is bent due to Authorised service centre.
-
Page 27: Technical Specifications
Technical specifications Type AS 420 4T AS 470 4T Range of application (temperature) 0 - 30 °C For temperatures below 5 °C, observe the engine manu- facturer's information regarding the engine oil. Engine Type One cylinder four stroke engine Manufacturer Briggs & Stratton Type Series 850, IC Cylinder capacity 190 cm Performance... -
Page 28: Accessories
Accessories Spray paint 400 ml, colour orange: G00011050 Operating hours counter: G06927008 Clinometer: G06950027... -
Page 29: Declaration Of Conformity
Declaration of conformity AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the lawnmowers Type AS 420 4T AS 470 4T Cutting width 42 cm 47 cm starting from serial no. 032418050001 033318100001 as brought into circulation by us conform to all relevant safety and - 2006/42/EC health requirements of the EC directives listed.
