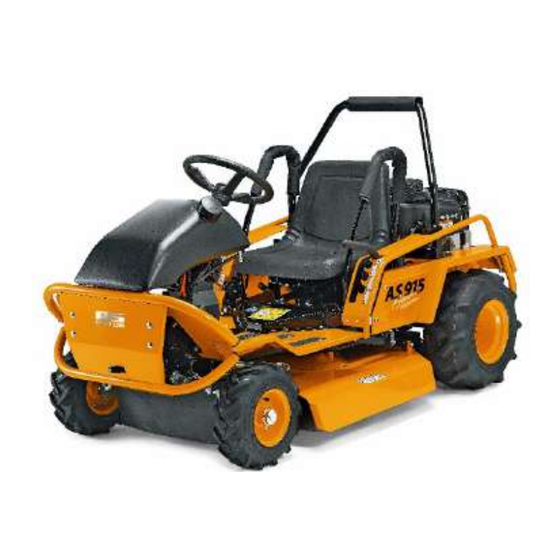

- Page 1 Workshop Manual version Status 03.01.2019 AS-Motor 980 Enduro AS-Motor 915 Enduro AS-Motor 900 Enduro Service Information Adjustment, maintenance and repair instructions www.as-motor.de...
-
Page 2: Table Of Contents
Workshop Manual AS-MOTOR AS 900, AS 915, AS 980 Enduro Table of contents: Tip: You can navigate in the document via mouse-over click – click page number and click www.as-motor.de to return to the table of contents. • Genarator Power Supply, Blade Clutch p. -
Page 3: Introduction
Disconnect the battery via the negative terminal. This symbol signals a warning. Failure to comply with the warning can result in accidents, injuries and damage! WH 900/915/980 Enduro 01/2019 DE Page www.as-motor.de... - Page 4 Guarantee claims Access to the online portal "parts-and-more.org": Every official AS-Motor dealer has access to the online service portal via his customer number. Login access to the system occurs via the website: www.parts-and-more.org WH 900/915/980 Enduro 01/2019 DE Page www.as-motor.de...
-
Page 5: Online Service Portal "Parts-And-More.org" (Pam) 2/2
Print function Language Magnifying glass selection function Shopping cart Complete overview Device and Parts direct selection assembly selection highlighted red Spare parts list Spare part function Parts information Change notifications Availability Other useful functions WH 900/915/980 Enduro 01/2019 DE Page www.as-motor.de... -
Page 6: General Information
(lb-ft) (lb-ft) 6 Nm (4.5) 8 Nm (5.9) 12 Nm (8.6) 15 Nm (11.1) 25 Nm (18.5) 35 Nm (25.9) 55 Nm (40.6) 70 Nm (51.7) 90 Nm (66.4) 120 Nm (88.6) WH 900/915/980 Enduro 01/2019 DE Page www.as-motor.de... -
Page 7: Quick Reference
0,9 m/s² Tyre Pressure Front 1 bar (14,5 ) 1 bar (14,5 ) 1 bar (14,5 ) Tyre Pressure Rear 1,5 bar (21,5 ) 1,5 bar (21,5 ) 1,5 bar (21,5 ) Seite 7 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 8: Declaration Of Conformity
Declaration of conformity Declaration of conformity Seite 8 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... - Page 9 Workshop Manual version Status 03.01.2019 AS-Motor 980 Enduro www.as-motor.de...
-
Page 10: Maintenance Overview
Maintenance AS 980 Enduro Maintenance overview AS 980 Enduro Seite 10 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 11: Trouble Shooting
Generall (Trouble Shooting) Trouble Fault Help WH 900/915/980 Enduro 01/2019 DE Seite 11 www.as-motor.de... -
Page 12: Blade Belt Change
Belt Drive Line Blade Belt change(1/2) Disconnect plug of seat contact Release the belt cover switch Remove screws from seat Release front belt guide Fold the seat forward Release rear belt guide Seite 12 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... - Page 13 Belt Drive Line Blade Belt change (2/2) Release tensioning pulley Remove the V-belt Installation in reverse order Seite 13 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de...
-
Page 14: V-Belt Changing
"Changing the mower belt" Release the cover of the cooling loop Run the V-belt forward Lift the cooling loop Relax belt tensioner Installation in reverse order Tension the belt to the mark Seite 14 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 15: Clutch Blade Change
Underbuild the machine and Remove Belt remove the left rear wheel Release holder of blade Loosen the screw and remove coupling the coupling pay attention to the feather key Seite 15 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 16: Front Axle, Single Parts
Front Axle Single parts Bearing on the Journal King Pin Half bearing disc axle fist Steering Rod Insert bearing with grease Bushing Axle fit Parts on PAM Seite 16 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 17: Steering
Steering Single Parts (PAM) Seite 17 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... - Page 18 Workshop Manual version Status 03.01.2019 AS-Motor 900 Enduro AS-Motor 915 Enduro www.as-motor.de...
-
Page 19: General Data
Mass Tollerances U 0,5 m/s Mass Tollerances U 0,5 m/s Whole body vibration a 0,9 m/s Whole Body vibratiion a 0,9 m/s Mass Tollerances U 0,5 m/s Mass Tollerances U 0,5 m/s WH 900/915/980 Enduro 01/2019 DE Seite 19 www.as-motor.de... -
Page 20: Maintenance
General Maintenance Seite 20 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 21: Tyre Size ,Tyre Pressure
14 psi / 1,00 bar Serie 22 psi / 1,50 bar AS 915 Enduro 17x8.00-8 Serie 23 psi / 1,60 bar 13x5.00-6 Rasen Optional 18x8.50-8 12 psi / 0,80 bar Rasen Optional Seite 21 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 22: Electrical System
& measure Select measuring range, connect measuring leads, in the flow direction Resistance diode a low resistance value is shown, in the blocking direction a resistance value in the MΩ range is shown WH 900/915/980 Enduro 01/2019 DE Page www.as-motor.de... -
Page 23: Circuit Diagram As 900 / 915
Elektric Circuit diagram AS 900 / 915 Seite 23 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 24: Circuit Diagram As 900 / 915 Ignition
Elektric Circuit diagram AS 900 / 915 Ignition On Seite 24 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 25: Circuit Diagram As 910/2
Electric Circuit diagram AS 910/2 Seite 25 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 26: Genarator Power Supply, Blade Clutch
SW 14 until the probe touches. You will do the same for both other openings. Check the braking time of the knife. The knife must stand still in five seconds Seite 26 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 27: Blade Clutch Change
4. Hexagonal duty screw "192" remove 5. Rear bumper "664" decrease 6. In exhaust fixture "690" dismantle the screws "45" 7. Engine raise (crane, hoist witness) 8. Knife coupling down remove 9. Installation in reverse order Seite 27 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 28: Neutral Position Switch, Transport Position Switch
If the lever is moved to the transport position while the knife is running, the knife Switch Neutral Position Switch Transport Position Hight Position Drive Lever axle WH 900/915/980 Enduro 01/2019 DE Seite 28 www.as-motor.de... -
Page 29: Position Of The Parts
Elektric Position of the Parts The two relays (No. 642) were replaced by an electronic control unit (No. 862) from the year of construction at the end of 2014. WH 900/915/980 Enduro 01/2019 DE Seite 29 www.as-motor.de... -
Page 30: Function Of The Odometer
Select the font "OIL CHANGE" or "LUBE" by pressing the white button until it flashes in the display. Then press and hold the button for 6 seconds until the text stops flashing. Knopp Seite 30 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 31: Belt Drive Line, Adjust Tensioning Roller Blade Drive
Adjust the tensioner pulley as shown in the sketch Attention: If the adjustment is not correct, the belt drive of the blade drive wears Frame Roller quickly or jumps down and gets damaged. Seite 31 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... -
Page 32: Hydrostat Belt Change
(pos. 611) and G06680111 into the square remove the washer (pos. 82) tube so that the rectangular and spring (pos. 308). recesses are superimposed. The picture shows how it looks ready mounted Seite 32 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de... - Page 33 308 E07441 FEDER RIEMENSPANNER 433 E07247 SICHERUNGSSCHRAUBE 458 E02949 6KT.SCHRAUBE 495 E08051 PAßSCHEIBE 611 E10213 GEWINDEBOLZEN 627 E10253 RIEMENSCHEIBE HYDROSTAT 628 E10254 DISTANZRING 629 E10256 DISTANZHÜLSE 630 E10257 DISTANZSCHEIBE 631 E10258 DISTANZRING 632 E05862 SPERRKANTSCHEIBE WH 900/915/980 Enduro 01/2019 DE Seite 33 www.as-motor.de...
- Page 34 Tighten until arrow points to the always washer (44mm) Arrow direction Mount motor You always have to change both V-belts See arrow Pulley with distance Always mount to the top See arrow Installation position G 6680111 Seite 34 WH 900/915/980 Enduro 01/2019 DE www.as-motor.de...
-
Page 35: Personal Notes
Personal notes: WH 900/915/980 Enduro 01/2019 DE Seite 35 www.as-motor.de... - Page 36 AS-MOTOR Germany GmbH & CO.KG Ellwanger Straße 15 D – 74424 Bühlertann www.as-motor.de info@as-motor.de www.parts-and-more.org Alle Rechte vorbehalten. Nachdruck, Vervielfältigung und Veröffentlichung ohne Genehmigung sind nicht gestattet. Technische Änderungen vorbehalten. V.1.0 02/2018 DE www.as-motor.de...
