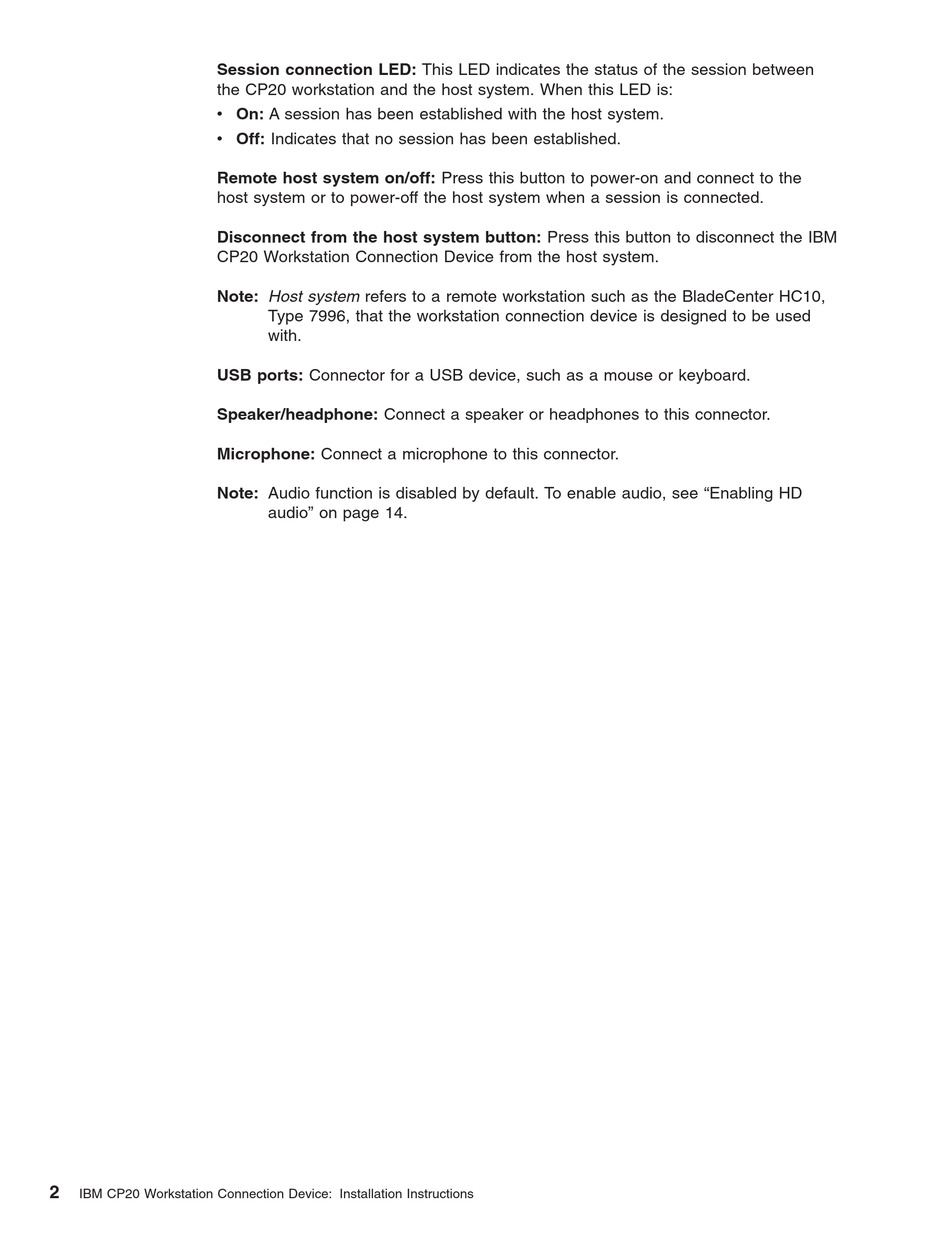

Session connection LED: This LED indicates the status of the session between
the CP20 workstation and the host system. When this LED is:
v On: A session has been established with the host system.
v Off: Indicates that no session has been established.
Remote host system on/off: Press this button to power-on and connect to the
host system or to power-off the host system when a session is connected.
Disconnect from the host system button: Press this button to disconnect the IBM
CP20 Workstation Connection Device from the host system.
Note: Host system refers to a remote workstation such as the BladeCenter HC10,
USB ports: Connector for a USB device, such as a mouse or keyboard.
Speaker/headphone: Connect a speaker or headphones to this connector.
Microphone: Connect a microphone to this connector.
Note: Audio function is disabled by default. To enable audio, see "Enabling HD
2
IBM CP20 Workstation Connection Device: Installation Instructions
Type 7996, that the workstation connection device is designed to be used
with.
audio" on page 14.
