New Product

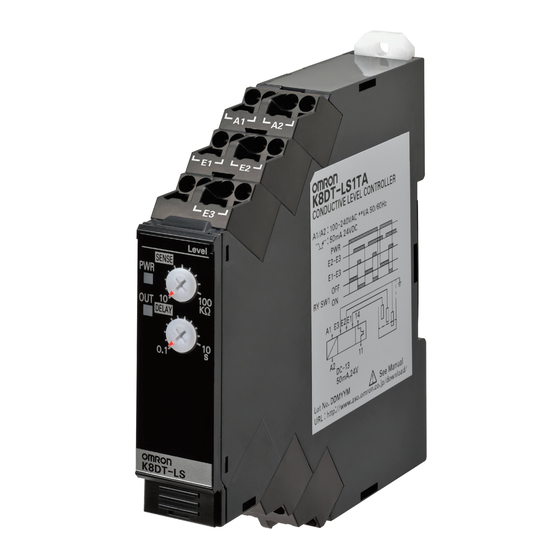

Conductive Level Controller
K8DT-LS
Ideal for water level control.
Sensitivity adjustment and timer for easy usage.
• Sensitivity adjustment from 10 k to 100 kΩ.
• Enables easy onsite adjustment.
ON-delay timer from 0.1 to 10 s.
Ideal as countermeasure for waves on liquid surfaces.
• Width of 17.5 mm to reduce space required in panels.
• Push-In Plus Terminal that reduce wiring work.
The use of cage clamps enables wiring with bare stranded wires.
Double-insertion holes for crossover wiring (all terminals).
• UL listed for easy shipping to North America.
• Models with transistor outputs added for low contact wear.
Refer to Safety Precautions on page 7.
Ordering Information
Conductive Level Controller
Power supply
Output
voltage
Relay: SPDT contact output
24 VAC/DC
Transistor
Relay: SPDT contact output
100 to 240 VAC
Transistor
Options (Order Separately)
Front Cover
Appearance Model
Y92A-D1A
Model
K8DT-LS1CD
K8DT-LS1TD
K8DT-LS1CA
K8DT-LS1TA
For the most recent information on models
that have been certified for safety
standards, refer to your OMRON website.
1
