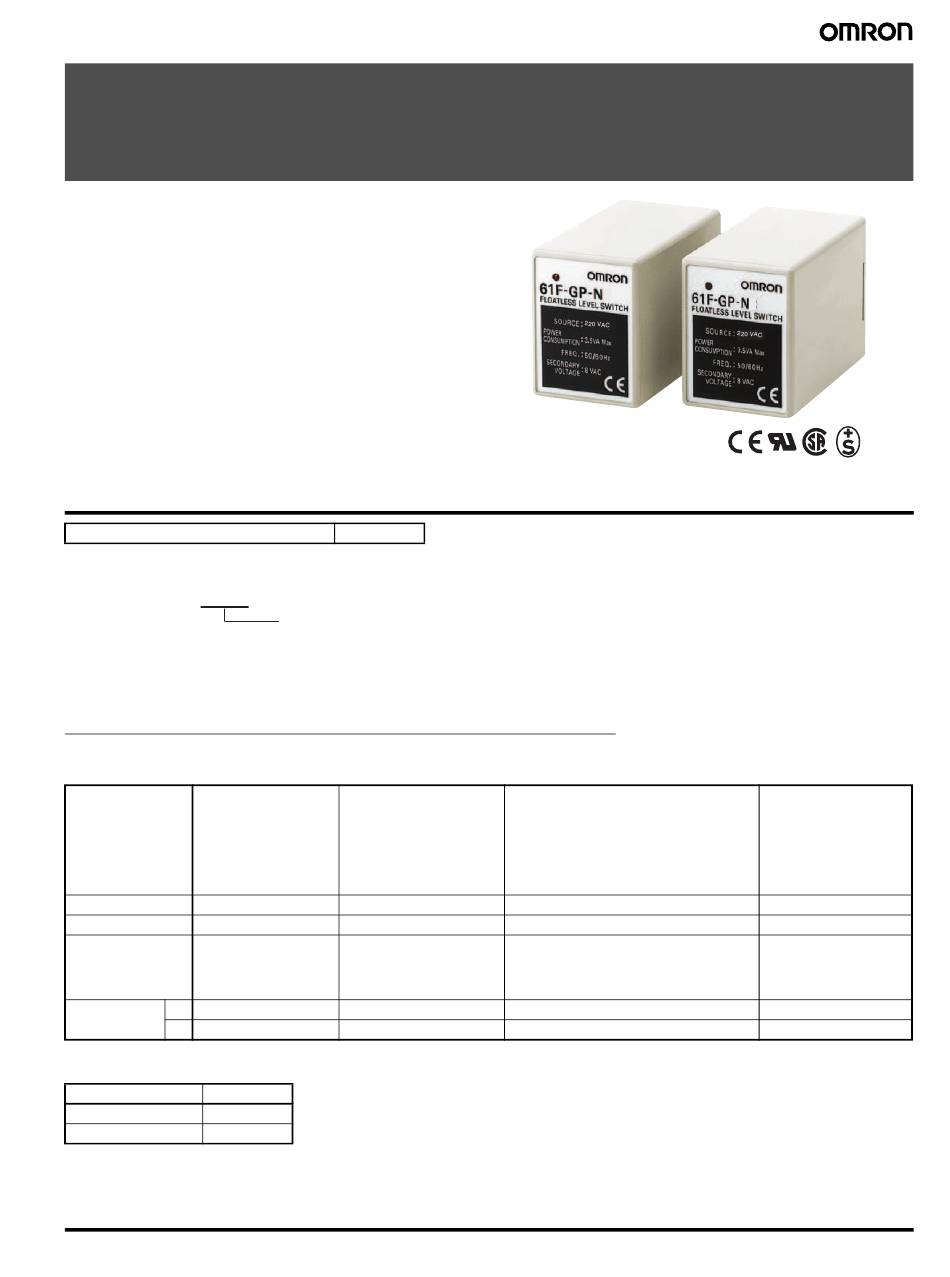

Conductive Level Controller
61F-GP-N2
Automatic Water Supply and Drainage
Control
• Ideal for level control of any conductive liquid.
• Compact plug-in controller for single- or two-point control of
conductive liquid level.
• 24/110/120/220/230/240 VAC operation possible.
• Easy installation on DIN rail.
• Low voltage (AC) electrodes.
• Full surge protection.
Ordering Information

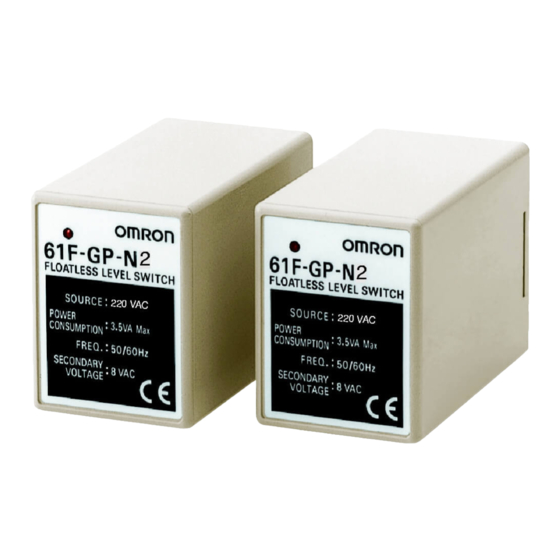

Compact plug-in conductive level controller
When placing your order, be sure to specify the desired operating voltage.
Example: 61F-GP-N2 120 VAC
■ Accessories (Order Separately)

Selection Guide for Electrode Holders and Separators

For city water and other
general-use elec-
trodes. Easy-to-replace
separate versions facili-
tate maintenance of
electrodes.
Mounting style
Flange
Insulator material
Phenol resin
Max. temperature
No. of elec-
1
---
trodes
3
PS-3S
No. of electrodes
Model
1
F03-14-1P
3
F03-14-3P
61F-GP-N2
Rated supply voltage
When mounting space is
limited. Special 3-pole
holder of small size and
light weight. Ideal for soft
drink vendors, etc., where
only limited space is avail-
able.
Screw
Phenol resin
70
C (without water drips
or vapour on the surface of
the electrode holder)
---
PS-31
2
For low specific liquids. Used for sewage,
sea water, etc., having a low specific resis-
tance. In sewage use, electrode holders
must be installed 10 to 20 cm apart from
one another. For acids, alkalis and sea wa-
ter, electrode holders may be as much as
1 meter apart to operate properly.
Flange
Ceramics
150
C (without water drips or vapour on
the surface of the electrode holder)
BF-1
---
Conductive Level Controller
2
When resistance to high
pressure is required. Ide-
al for use in tanks where
temperature or pressure
inside the tank is high,
e.g. 250
C
Screw
Teflon
250
C (without water
drips or vapour on the
surface of the electrode
holder)
BS-1
---
61F-GP-N2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 61F-GP-N2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Omron 61F-GP-N2

  • Page 1 Ordering Information Compact plug-in conductive level controller 61F-GP-N2 When placing your order, be sure to specify the desired operating voltage. Example: 61F-GP-N2 120 VAC Rated supply voltage ■ Accessories (Order Separately) Selection Guide for Electrode Holders and Separators Electrode Holders...
  • Page 2 2,000 VAC, 50/60 Hz for 1 min., between power terminals and electrode terminals, and between elec- trode terminals and contact terminals Ambient temperature Operating: –10 • C to 55 • Ambient humidity Operating: 45% to 85% Life expectancy Mechanical: 10,000,000 operations min. Weight Approx. 190 g *Secondary voltage of transformer 61F-GP-N2 Conductive Level Controller...
  • Page 3 Dimensions Note: Note:All units are in millimeters unless otherwise indicated. 61F- GP-N2 49.4 PF083A 61F-GP-N2 Conductive Level Controller...
  • Page 4 P=0.7 SUS304 (M4) P=0.7 P=1.5 24-dia. M18 P=1.5 Nut (iron) (fine screw thread) BS-1S Width across flats: 20 BS-1S1 Terminal bolt BS-1S2 Two, M4 P=0.7 SUS304 (M4) P=0.7 P=1.5 24 dia. M18 P=1.5 (fine screw thread) 61F-GP-N2 Conductive Level Controller...
  • Page 5 When taping one of the electrodes to prevent it from contacting the other electrodes in water, do not tape the electrode entirely but leave Note that the Conductive Level Controller 61F-GP-N2 is capable of at least 100 mm of its end uncovered.
  • Page 6 • Be sure to ground common electrode terminal(s). Doing so can reduce some effects of noise. • Use the product within the noted supply voltage and rated load. 61F-GP-N2 Conductive Level Controller...
  • Page 7 Warranty and Limitations of Liability WARRANTY OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS.
  • Page 8 To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. N071-E1-03 In the interest of product improvement, specifications are subject to change without notice. OMRON Corporation Industrial Automation Company Industrial Devices and Components Division H.Q.
