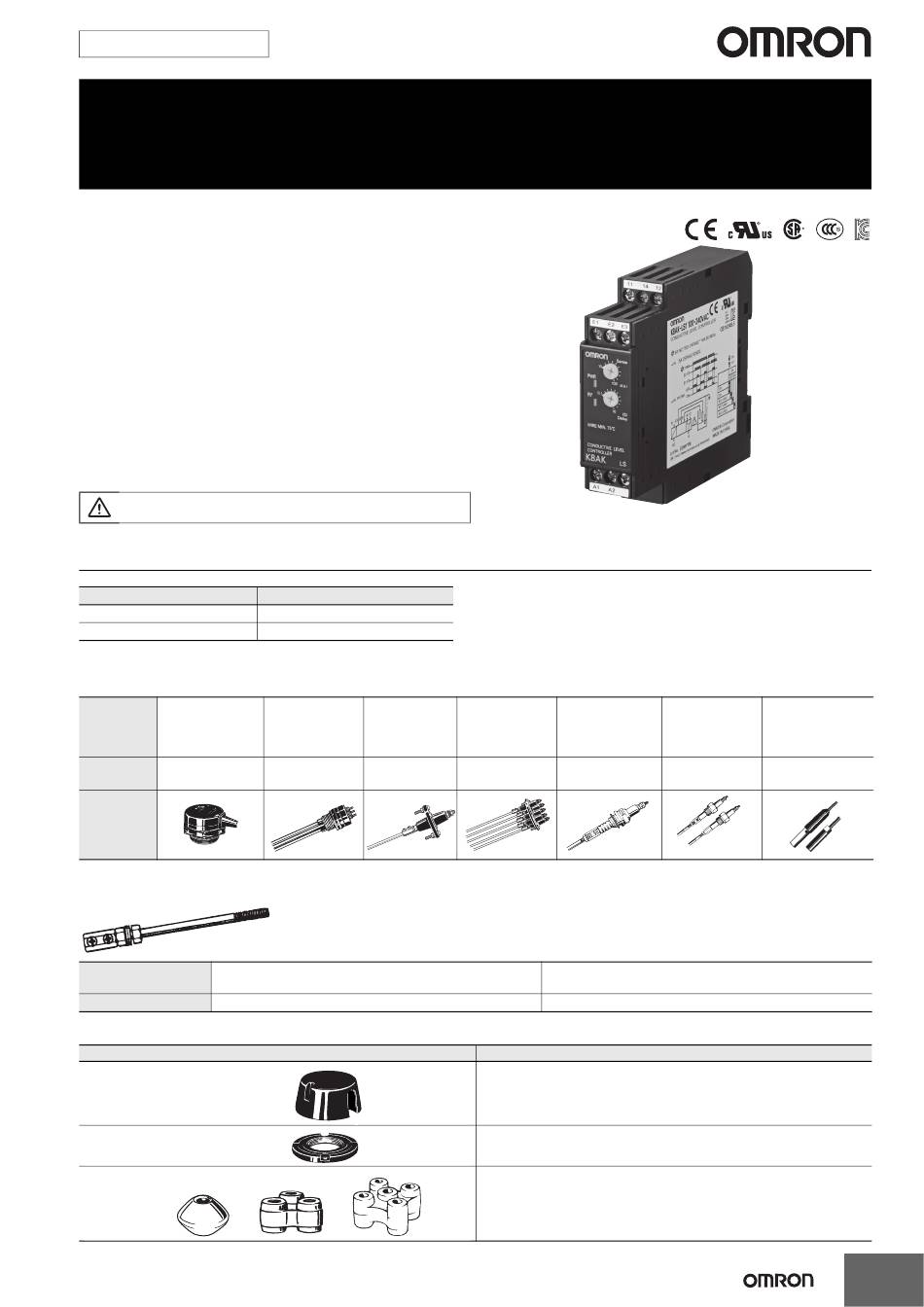

New Product
Conductive Level Controller
K8AK-LS
Ideal for Liquid Level Control in
Industrial Facilities and Equipment.
• Self-holding circuit implemented with circuit processing that is
not depending on external wiring.
• Switch between water supply and discharge with a DIP switch
setting.
• Sensitivity adjustment of operating resistance from 10 to 100 kΩ
for application to a wide range of liquids.
• Prevents chattering of relay contacts that occurs with ripples.
• Easy wiring with ferrules.
• Use 2 × 2.5 mm solid wire or 2 × 1.5 mm
2
• Applicable as a floatless switch.
Refer to Safety Precautions on page 7.
Ordering Information
Power supply voltage
24 VAC/DC
100 to 240 VAC
Accessories (Order Separately)
●Electrode Holders/Underwater Electrodes
For general-pur-
Application pose use, such as
water supply lines
Model PS-3S/-4S/-5S
Appearance
●Electrode Rods
Electrode Rods are available in sets with the connection nuts, lock nuts, and tightening screws.
Application Purified water service, industrial water, and sewage
Model F03-60 SUS304
●Others
Protective Cover
(Electrode Holders for the PS
or BF Series)
Mounting Piece
(Electrode Holder for the PS Series)
Separator (to prevent contact between electrodes)
2
ferrules.
Model
K8AK-LS1 24 VAC/DC
K8AK-LS1 100−240 VAC
For areas with For liquids with
limited space low resistance
PS-31
BF-1
SUS304, 300 mm
Item
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
For resistance to
When mounting
high-temperature
strength is re-
or high-pressure
quired
liquids
BF-3/-5 BS-1
Purified water service, industrial water, sewage, and weak
alkaline solutions
F03-60 SUS316
F03-11
F03-12
F03-14 1P (one pole)
F03-14 3P (three poles)
F03-14 5P (five poles)
For installation at
For resistance
long distances
against corrosion
from the liquid level
BS-1T PH-1/-2
SUS
PH-2
HAS
PH-1
titanium
Model
