  • Page 1 Product Manual Thrii_ST Thrii_SS Thrii_DIS_SS Stainless steel Solid Surface Solid Surface Disabled Wallgate Ltd. tel: +44 (0) 1722 744594 WallgateThrii® PRODUCT MANUAL Issue 5_3 Crow Lane, Wilton, fax: +44 (0) 1722 742096 Salisbury, Wiltshire, email: service@wallgate.com ORIGINAL INSTRUCTIONS © 2013Wallgate Ltd.

  • Page 2: Table Of Contents

    Care, Routine maintenance, Service & Repair ................26 Care /Cleaning ........................26 Routine maintenance ......................26 Service and Repair......................26 Spare parts ........................27 P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 3: Disclaimer& Copyright Notice

    Disclaimer& Copyright notice Every effort has been made to supply information within this manual which is correct. Wallgate Limited will not be liable for any damage or loss that arises if the person installing, operating or maintaining the unit has not read or not complied with the manual In any event, and without prejudice to any warranties in Wallgate Limited’s terms and conditions...

  • Page 4: Conventions

    Certain conventions are used in this manual to make it easier to read and understand. They are shown in the sections below.It is recommended that you read and understand these warnings before you install and commission the Wallgate Thrii. Warning A boxed WARNING! is used to give information about hazards associated with electric current and high voltages that can cause damage, injury or death.

  • Page 5: Glossary

    Thrii fascia. Power up The external electricity supply is provided to the Thrii. Thrii® is a registered trademark of Wallgate Limited Description sourced from Wikipedia at http://en.wikipedia.org/wiki/British_standard_pipe_thread P a g e Wallgate Thrii®...

  • Page 6: Technical Specification

    *Based on 12°C supply temperature, 3Bar dynamic pressure & 230V supply. Water Water resistivity must not be less than 1300 Ωcm Resistivity (refer EN603355-2) AS 3498 Certificate No 23167 P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 7: Overview

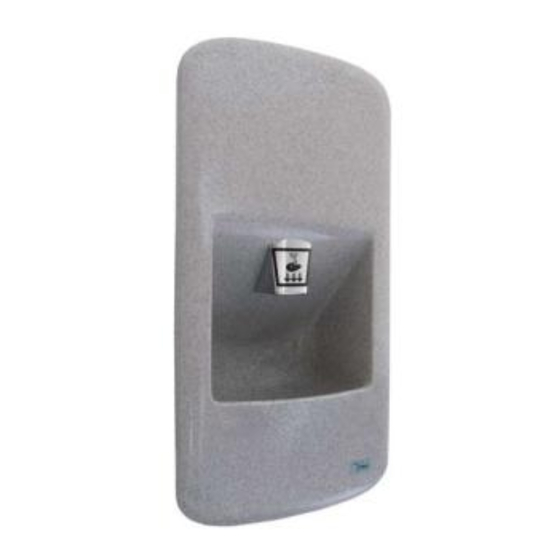

    Overview The Wallgate Thrii is an integrated hand wash dryer unit with automatic infra-red sensor operation. It is available in a solid surface or stainless steel (grade 304) material. The unitshould only be installed in a frost free environment, to avoid damage.
  • Page 8 Fig. 1 Fascia Front View Item Description Item Description Fascia IR Sensor Fascia Lock (hidden) Soap Outlet Wash Bowl Water Outlet Dispensing Unit Label (optional) Dryer Outlet P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.
  • Page 9 Mounting Frame Engine Cover fixing Clamp bracket Control Fascia Lock LCD Control (see fig. 18) Drain Mains Power socket Waste Outlet Soap Selection Knob P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 10: Installation And Commissioning

    Installation and Commissioning The Wallgate Thrii handwash-drier unit is a three-part assemblyconsisting of a flush support frame and a hinged fascia and engine assembly. It is necessary to install the mounting frame and prepare the services (electrical, water and waste) prior to installing the fascia.

  • Page 11: Installing The Support Frame, Water And Waste Connections And Electric

    Terminate the cold water supply with a suitable isolating tap. For optimum operation a dynamic water flow pressure of between 1 & 3 bar is required. Request advice from Wallgate before you connect the unit to a gravity-fed water supply. ...
  • Page 12 New Zealand = 675mm Finished Floor Level Fig.4 Typical site preparation for Wallgate Thrii unit. (Dimensions in millimetres) Note hinge positions on the right-hand side when looking from the front P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS ©...
  • Page 13 Rear View Side View Fig.5 Fascia Dimensions (in millimetres) Model Fascia height dimension Thrii_SS 870mm Thrii_DIS 793mm Thrii_ST 870mm P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.
  • Page 14 Thrii or from the rear without having to open the fascia 2 – 3 mm Fig.6 Typical site installation of Wallgate Thrii unit showing clamping bracket (view on rear) P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS ©...
  • Page 15 Failure to do so may result in damage and failure of the unit. 9. Connect the supplied electrical cable to the 13 amp spur connection unit. P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 16: Mounting The Fascia

    Fig. 10a. Do not over-tighten as this may result in the fascia damaging the wall finish. Horizontal adjustment of the fascia door can be configured, (see Fig. 10b) however note this is factory set. P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.
  • Page 17 Fig. 11a, and when the lock bar has been fully engaged, relocate the top screw fixing into the locking position below, as shown inFig. 11b Fig.11 Securing the unit for rear-access only, 11a showing hinge side locks, 11b showing fixing repositioning P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 18: Engine Installation

    4. Replace the securing pin through both mounting plates and engine ensuring it passes fully through this assembly Fig. 14 Fig.14 Fitting the securing pin P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.
  • Page 19 5. Replace the engine cover, ensuring the flexible hose and soap hose attached does not foul upon reassembly, and secure the cover into place with the fixing provided Fig. 15 Fig.15 Replacing the engine cover P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 20: Electrical And Water Connections

    Ø15mm Connector ½“ BSP FM Adapter (Optional - UK) Cold Water Supply Fig.16 Engine water supply hose connection to water connector on wall frame P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 21: Commissioning For Use

    Failure to do so may result in leakage. 4. Switch ON the fused spur, this will power-up the Wallgate Thrii ready for use. 5. Upon initial power-up the Wallgate Thrii automatically runs through a 15 second water calibration cycle.
  • Page 22 12. Upon completion ensure that a copy of the instruction manual (or leaflet), the instruction label (if not fitted) and the fascia lock key are passed to the customer. P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 23: Programme Settings

    Any service or repair work must be done by a qualified engineer. During the warranty period, the service or repair must only be done by a Wallgate engineer or appointed service agent. Refer to the Wallgate terms and conditions for warranty information.

  • Page 24: Operation

    To change the speed the unit must be powered up (The fan does not need to be operating). On the LCD Control there is a small push button labelled ‘Fan Speed’ see Fig.18. Press and hold this P a g e Wallgate Thrii® PRODUCT MANUAL Issue 5_3 ORIGINAL INSTRUCTIONS © 2013 Wallgate Ltd.

  • Page 25: Advanced Adjustment

    Menu Select button. A 20 second period of inactivity will automatically exit the programming mode and revert to displaying the time. Instructions can be downloaded from the Wallgate web site or contact Wallgate Ltd to:  Restore the unit to factory default settings.

  • Page 26: Care, Routine Maintenance, Service & Repair

    Care /Cleaning  A range of compatible liquid soaps & specifications are available from Wallgate.  For cleaning see the Wallgate cleaning guide, this can be found on the Wallgate website.  Cleaning kits are available from Wallgate Ltd. Routine maintenance...

  • Page 27: Spare Parts

    Any service or repair work must be done by a qualified engineer. During the warranty period, the service or repair must only be done by a Wallgate engineer or appointed service agent. Refer to the Wallgate terms and conditions for warranty information.
