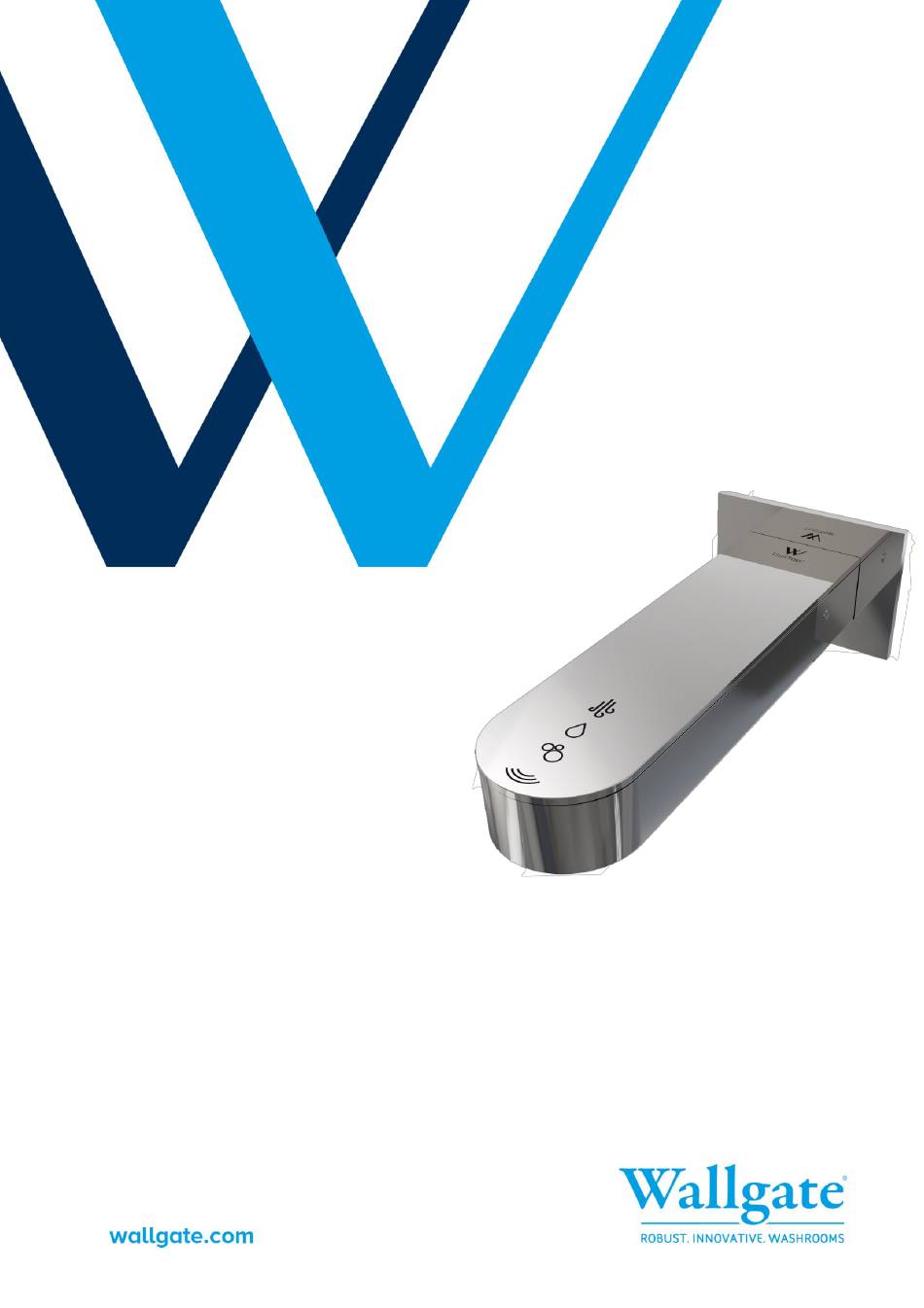

- Page 1 Product Manual ThriiTap Hand Wash Dryer ThriiTap Wall Mounted Original Instructions...
- Page 2 Product Manual ThriiTap Wall Mounted Hand Wash Dryer Revision 5...
-
Page 3: Safety Information
Product Manual ThriiTap Wall Mounted Hand Wash Dryer Safety Information WARNINGS! The appliance must be earthed. The means for disconnection from the mains supply must be incorporated in the fixed wiring in accordance with the wiring rules. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 4: Table Of Contents
Product Manual ThriiTap Wall Mounted Hand Wash Dryer Table of Contents Safety Information ........................... 3 1. Disclaimer & Copyright Notice ......................6 2. Conventions ............................7 2.1. Warning ............................7 2.2. Note ..............................7 2.3. Numbered procedures ........................7 2.4. Bullet lists ............................7 2.5. - Page 5 Product Manual ThriiTap Wall Mounted Hand Wash Dryer 9.3. Service and Repair ......................... 37 9.4. Spare Parts ............................. 37 Revision 5...
-
Page 6: Disclaimer & Copyright Notice
Every effort has been made to supply the information within this manual which is correct. Wallgate Limited will not be liable for any damage or loss that arises if the person installing, operating, or maintaining the unit has not read or not complied with the manual. -
Page 7: Conventions
Certain conventions are used in this manual to make it easier to read and understand. It is recommended that you read and understand these warnings before you install and commission the Wallgate ThriiTap 2.1. Warning A warning with white text on a red background is used to give information about hazards that can cause injury or death. -
Page 8: Glossary
(male) with an internal (female) thread. Power up The external electricity supply is provided to the ThriiTap ThriiTap ® is a registered trademark of Wallgate Limited. Description sourced from Wikipedia at http://en.wikipedia.org/wiki/British_standard_pipe_thread Revision 5... -
Page 9: Technical Specification
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 4. Technical Specification Weight Item Weight Tap Head 1.5 kg Control Module 8.2 kg Full soap container 2.6 kg Total 12.3kg Tap Head Width 60mm Dimensions Height 68mm Length 223mm Control Module Width 344 mm Dimensions... -
Page 10: Overview

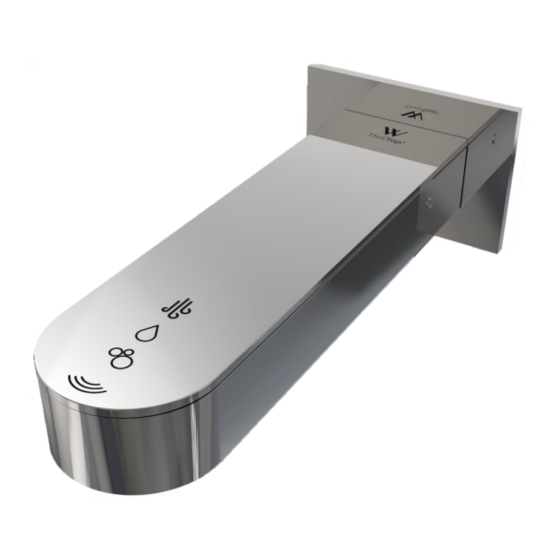

Product Manual ThriiTap Wall Mounted Hand Wash Dryer 5. Overview The Wallgate ThriiTap is an integrated hand wash dryer unit with automatic infra-red sensor operation. There are two model options that are otherwise identical except for the Tap head mounting method. It is available as a wall mounted configuration to be installed with... - Page 11 Product Manual ThriiTap Wall Mounted Hand Wash Dryer Figure 2: Tap head outlet nozzles. Revision 5...
-
Page 12: Package Contents
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 6. Package Contents Before you begin the installation, make sure that you have the following items: ✓ 1 Tap head ✓ 1 Installation instructions ✓ 1 Air hose – with 2 jubilee clips ✓... -
Page 13: Installing The Support Frame, Water, Waste And Electrical Connections
Terminate the water supply with a suitable isolating tap. For optimum operation, a dynamic water flow pressure of between 1 & 3 bar is required. Note: Request advice from Wallgate before you connect the unit to a gravity- fed water supply. Revision 5... -
Page 14: Wall Mounted Tap Head
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 7.1.1. Wall Mounted Tap Head Measure, mark and core a hole through wall substrate or panelling to the dimensions shown in figure 3 below. Figure 3: Wall Mounted Tap Head mounting dimensions. Revision 5... -
Page 15: Front Fixed Wall Mounted Tap Head
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 7.1.2. Front Fixed Wall Mounted Tap Head The front fix mounting method may be used when chasing the services for the tap into the wall. If this is the case carefully route the hoses into the chased opening (54mm wide x 90mm deep) See 7.2.3.2 Front Fix Wall Mounted Tap Head for further details. -
Page 16: Mounting Guidelines
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 7.2. Mounting Guidelines 7.2.1. Control Module Mounting Guidelines Figure 5: Wall mounting of Thrii-Tap Control Module The control module can be mounted either with the inputs and outputs pointed downwards for through wall installations, or upwards for both through wall and under basin installations. - Page 17 Product Manual ThriiTap Wall Mounted Hand Wash Dryer The module must have a clearance envelope of 100mm (see Fig 6). Figure 6: Minimum control module clearance When the module is securely mounted to the wall the power cable should be connected to an easily accessible switched UK plug socket or switched fused spur (depending on installation requirements).
-
Page 18: Soap Hook Mounting Guidelines
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 7.2.2. Soap Hook Mounting Guidelines The soap hook can be installed remotely from the module in a position convenient for access, and within space constraints. 0.6m of soap tube is supplied for connection between the soap bottle and the module. -
Page 19: Tap Head Mounting Guidelines
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 7.2.3. Tap Head Mounting Guidelines 7.2.3.1. Wall Mounted Tap Head 1. Remove 2x M6 nuts and mounting bracket from tap head. 2. Carefully pass tap head hoses through hole made in wall/panel before seating tap head against the wall as shown in figure 8. - Page 20 Product Manual ThriiTap Wall Mounted Hand Wash Dryer 4. Continue by threading the mounting bracket over the two fixing studs and against the wall. Note: This may require two people, one to hold the tap head and the other to fix the bracket in place.
-
Page 21: Front Fix Wall Mounted Tap Head
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 7.2.3.2. Front Fix Wall Mounted Tap Head The front fix mounting method may be used when chasing the services for the tap into the wall. If this is the case carefully route the hoses into the chased opening (54mm wide x 90mm deep). - Page 22 Product Manual ThriiTap Wall Mounted Hand Wash Dryer Figure 12: Front fix wall mounting plate. Mount the tap head into position on the mounting plate, feed the hoses through the plate opening and secure the tap into position using the two M6 fixing bolts.
-
Page 23: Connecting The Control Module To The Tap Head
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 7.3. Connecting the Control Module to the Tap head Figure 14: Wall mounted tap shown without vanity top. Figure 15: Control Module I/O arrangement. Revision 5... - Page 24 Product Manual ThriiTap Wall Mounted Hand Wash Dryer 1. First connect air hose to tap. Ensure jubilee clips are positioned roughly 15mm from each end of air hose. Push one end of air hose over black air hose spigot protruding from the tap head. Then push the other end over the “air outlet spigot”...
- Page 25 Product Manual ThriiTap Wall Mounted Hand Wash Dryer 3. Now take the flexi hose and check rubber O-ring is fitted correctly in half inch BSP female nut. Then screw on to Control Module “water outlet” by hand. Tighten with 23mm spanner. Figure 17: Flexi hose / water outlet connection 4.
- Page 26 Product Manual ThriiTap Wall Mounted Hand Wash Dryer 5. Take 2x soap hoses from bottom of tap head and push over “soap and air outlets” indicated in fig 15. Use 2x cable ties to secure soap tube onto outlet spigots. Figure 19: Soap Air outlet connections.
-
Page 27: Mains Water Connection To Control Module
3. Fully open the mains water supply isolating tap. Check the incoming water connections for leaks. 4. Switch ON the power to the Control Module, this will power-up the Wallgate ThriiTap ready for use. - Page 28 Product Manual ThriiTap Wall Mounted Hand Wash Dryer 7. To install the soap container, place the soap container onto its mounting hook, ensure the soap bottle is level and stable. Figure 20: Soap bottle installation/connection. 8. Unscrew the cap from the soap container and replace with the push-fit cap pre-connected to the soap tube pushing fully into place ensuring no leaks.
-
Page 29: Programmed Settings
Any service or repair work must be done by a qualified engineer. During the warranty period, the service or repair must only be done by a Wallgate engineer or appointed service agent. Refer to the Wallgate terms and conditions for warranty information. - Page 30 Product Manual ThriiTap Wall Mounted Hand Wash Dryer The display cover must be removed to allow settings to be changed. This can be done by removing the two M3 thumb screws from the cover either by hand or with a flat head screwdriver (Fig 22).
-
Page 31: Operation
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 8.1. Operation The hand wash and dry cycle is activated when your hands are placed centrally under the tap and dispensing nozzles. An infra-red hand sensor initiates the cycle when it detects hands under the tap head. When the cycle starts, a sequence of soap, warm water and hand dryer air are dispensed. -
Page 32: Dryer Operation
Product Manual ThriiTap Wall Mounted Hand Wash Dryer 8.1.2. Dryer Operation There are 3 dryer speed settings. The control to adjust the speed is located on the Control Module LCD control panel. To change the speed, the control module must be powered up (The fan does not need to be operating). -
Page 33: Advanced Adjustment
IR sensor trigger or activation length. Warning! Incorrect alterations to the default hand wash settings may result in malfunctions or possible unit damage. If in any doubt, contact “Wallgate after-sales service” for advice & information. Description Factory... -
Page 34: Hygiene Purge Adjustment
Instructions can be downloaded from the Wallgate web site or contact Wallgate Ltd ✓ Restore the control module to factory default settings. ✓ Instructions to change the cycle sequence of soap – water – hand dryer. -
Page 35: Care, Routine Maintenance, Service And Repair
If you need any further information or advice, please contact Wallgate Customer Services. 9.1. Care and Cleaning The ThriiTap should be cleaned daily. -
Page 36: Routine Maintenance
• Foaming ingredients • Bleach or abrasive cleaners Contact us for more information: 01722 744594 www.wallgate.com. 9.2. Routine Maintenance The following routine regular maintenance in between service intervals will help to prevent premature parts failure: • Flush the soap pump system with warm water to remove congealed soap within the pump, tube &... - Page 37 Any service or repair work must be done by a qualified engineer. During the warranty period, the service or repair must only be done by a Wallgate engineer or appointed service agent. Refer to the Wallgate terms and conditions for warranty information.
- Page 38 Product Manual ThriiTap Wall Mounted Hand Wash Dryer Appendix Description Range Remarks Mode Defaults Water Time A Seconds Water Time D Seconds Drier Time B Seconds Soap Time A Seconds. (Note 5) Manual Mode Soap Time Soap Time B Seconds Delay Time B 10.0 Seconds...
- Page 39 Product Manual ThriiTap Wall Mounted Hand Wash Dryer Operation Counter 9999 Press and Hold Select to (Note 6) Reset. (X 100 Operations) Liquid Pump Iterations (Note 7) F100 Foam Pump Iterations (Note 7) F134 Soap Counter X 100 Operations. F135 Fan Counter Fan Usage in Hours.
- Page 40 Wallgate Ltd. Crow Lane, Wilton, Salisbury, Wiltshire, SP2 0HB, England tel: +44 (0) 1722 744594 fax: +44 (0) 1722 742096 email: service@wallgate.com web: www.wallgate.com...
