- Page 1 Product Manual Model PSH-20 series Hand Wash Dryer...
- Page 2 Product Manual PSH-23 Revision 7...
-
Page 3: Table Of Contents
Table of Contents 1. Disclaimer .......................... 4 2. Conventions ........................4 3. Warning ..........................4 4. Note ........................... 4 5. Numbered procedures ......................4 6. Bullet lists ........................... 4 7. Menu items ......................... 5 8. Glossary ..........................5 9. Overview ..........................6 10. -
Page 4: Disclaimer
1. Disclaimer The specifications of Wallgate products can change without notice because of developments in design and manufacturing. Conventions Certain conventions are used in this manual to make it easier to read and understand. They are given in the sections below. -
Page 5: Menu Items
7. Menu items Menu items, submenu items and settings, where available, are given in bold. 8. Glossary The glossary lists all words, abbreviations and technical terminology used in this manual, along with a short description of these terms. Term Description Anti-Ligature Recently we have become aware that there is some inconsistency in the market as to the exact meaning of "anti-... -
Page 6: Overview

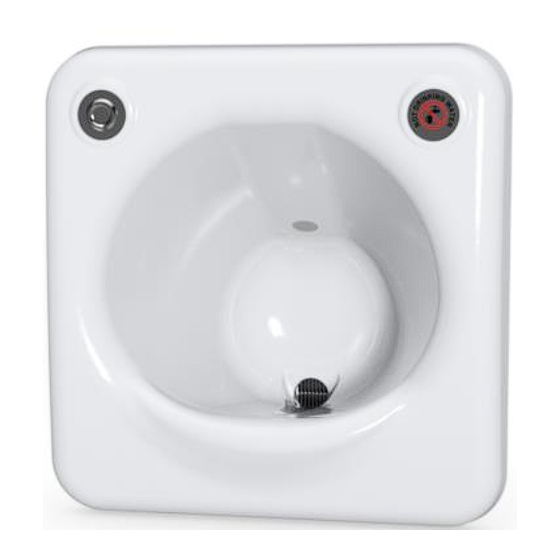

9. Overview The PSH is an extremely safe in-cell hand wash solution. It includes integral soap dispenser, instantaneous warm water heater, an optional cold water outlet, and warm air hand dryer, all managed integrally. An optional plug-in module for WC flush is available. Revision 7... -
Page 7: Installation And Commissioning
If the unit is to be connected to a gravity (tank) fed supply, further advice should be requested from Wallgate as the minimum required water pressure as stated above is important to the performance of the unit water dispensing system. -
Page 8: Mounting The Control Unit And Basin
be terminated to a suitable deep seal waste trap (not supplied) located 200mm (Min) below the centreline of the basin waste pipe tail. Warning! THIS APPLIANCE MUST BE EARTHED 10.3 Mounting the control unit and basin • Remove the basin fascia, with attached waste pipe, M10 studs, installation brackets (and air ducting if relevant to the variant being installed) from the packaging. -
Page 9: Cabinet Preparation And Fitting
• The front of the basin must be sealed to the wall face with hard set no pick mastic such as Arbokol 1025 or Sikadur 33. The fascia has a 6mm chamfer running around the rear mounting face for mastic sealing to the wall. •... -
Page 10: Water Supply Connection
alignment. Once in place insert the two M5 bolts supplied, through the bottom flange of the horizontal fixing plate into the threaded holes in bottom of cabinet. Fitting & aligning the cabinet onto its brackets can be seen on the drawing on page 15 of this document. -
Page 11: Electrical Supply Connection
pipes must be flushed through so as to remove any debris & air locks. WARNING! FAILURE TO CARRY THIS OUT MAY RESULT IN DAMAGE AND FAILURE OF THE UNIT. • Make the water supply connection to the 15mm connection on the unit water inlet stop tap on the PSH. -
Page 12: Soap Liquid Fitting
connector positions in a row along the LH underside. The connector position nearest to mounting wall is position ‘1’ and furthest away is position ‘2’. Attach appropriate button operating flying leads into the relevant mating connectors on the underside of cabinet as follows: o Position ‘1’: Hand Wash piezo button. -
Page 13: Technical Specifications
10.9 Technical Specifications models PSH**-20 series Table 1. Technical specifications Models with built in water heater Thermal Cut Out 46°C (+/- 3°C) Temp of water with Raises the ambient by 15°C ±2° flow rate 1.8 ltr/min Water Supply Minimum pressure 2 Bar (Static) Maximum pressure 3 Bar (Static) Supply pipe size 15mm copper ... - Page 14 Revision 7...
- Page 15 Revision 7...
- Page 16 Revision 7...
- Page 17 Revision 7...
- Page 18 Revision 7...
- Page 19 Revision 7...
-
Page 20: User And Maintenance Instructions
If these user instructions are followed, the unit will give reliable efficient service. If you need any further information or help, please contact Wallgate Ltd. • Activating the Hand Wash button, the unit dispenses (depending on the relevant model) liquid soap, warm water &... -
Page 21: Replenishing The Soap
A range of recommended soaps and their specification are available direct from Wallgate or your supplier. For Police holding cells the recommended soap type is Wallgate type SA2092 that includes an addictive to deter human consumtion. -
Page 22: Adjusting The Water Temperature
• The cold water outlet if fitted is also fitted with a flow regulator (0.8LPM). 11.5 Maintenance • Wallgate operates a comprehensive spare parts service. Contact our service department for all spare part & servicing requirements. WARNING: IN MODELS WITH A WATER HEATER) THE WATER HEATER IS A... -
Page 23: Warranty
During the warranty period contact Wallgate for warranty work & advice. 11.6 Warranty Refer to the terms & conditions for warranty information, available upon request from Wallgate. Customers should contact Wallgate at the following address, as soon as a warranty claim occurs. Revision 7... - Page 24 Wallgate Ltd. Crow Lane, Wilton, Salisbury, Wiltshire, SP2 0HB, England tel: +44 (0) 1722 744594 fax: +44 (0) 1722 742096 email: service@wallgate.com web: www.wallgate.com Revision 7...
