- Page 1 Product Manual PSH-30 series Hand Wash Dryer...
- Page 2 Product Manual PSH-30 series Hand Wash Dryer Revision 1...
-
Page 3: Safety Information
Product Manual PSH-30 series Hand Wash Dryer Safety Information WARNINGS! The appliance must be earthed. The means for disconnection from the mains supply must be incorporated in the fixed wiring in accordance with the wiring rules. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 4: Table Of Contents
Product Manual PSH-30 series Hand Wash Dryer Table of Contents Safety Information ........................... 3 Disclaimer & Copyright Notice ......................5 Conventions ............................. 6 2.1. Warning ............................6 2.2. Note ..............................6 2.3. Numbered procedures ........................6 2.4. Bullet lists ............................6 2.5. -
Page 5: Disclaimer & Copyright Notice
Every effort has been made to supply the information within this manual which is correct. Wallgate Limited will not be liable for any damage or loss that arises if the person installing, operating, or maintaining the unit has not read or not complied with the manual. -
Page 6: Conventions
Product Manual PSH-30 series Hand Wash Dryer 2. Conventions Certain conventions are used in this manual to make it easier to read and understand. It is recommended that you read and understand these warnings before you install and commission the Wallgate PSH-30. -
Page 7: Glossary
Product Manual PSH-30 series Hand Wash Dryer 3. Glossary The glossary lists all words, abbreviations and technical terminology used in this manual, along with a short description of these terms. Term Description Anti-Ligature Where we use this phrase in connection with our... -
Page 8: Technical Specification
Product Manual PSH-30 series Hand Wash Dryer 4. Technical Specification Weight Item Weight Fascia & frame 23.0kg Control Module 13.0 kg Full soap container 2.6 kg Total 38.6kg Fascia Width 420mm Dimensions Height 430mm Depth 300mm Control Module Width 344 mm... -
Page 9: Overview

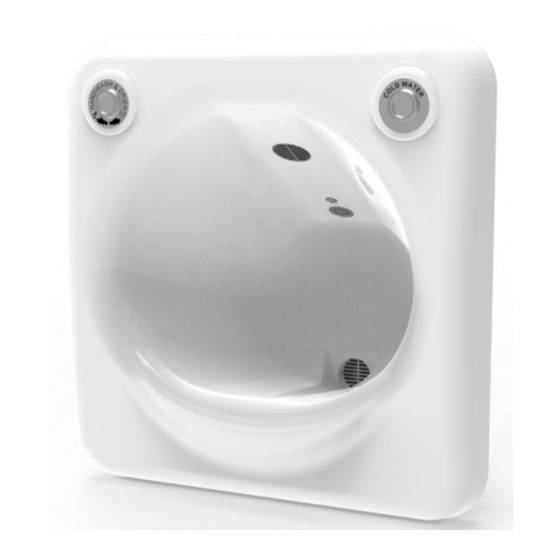

Product Manual PSH-30 series Hand Wash Dryer 5. Overview The Wallgate PSH-30 is an integrated hand wash dryer unit with piezo button operation. The PSH was commissioned by The UK Home Office for use in police holding cells as an extremely safe in-cell hand wash solution. It includes integral soap dispenser, instantaneous warm water heater and air dryer, all managed integrally. -
Page 10: Package Contents
Product Manual PSH-30 series Hand Wash Dryer 6. Package Contents Before you begin the installation, make sure that you have the following items: ✓ 1 Fascia ✓ 1 Installation instructions ✓ 1 Control Module ✓ 1 Container of liquid soap (2.5 litres) ✓... -
Page 11: Installing The Support Frame, Water, Waste And Electrical Connections
• Prior to final connection of the water supply to the PSH unit, the water supply pipes must be flushed through to remove any debris & air locks. Note: Request advice from Wallgate before you connect the unit to a gravity- fed water supply. -
Page 12: Aperture Pre-Installation
Product Manual PSH-30 series Hand Wash Dryer 7.1.3. Aperture pre-installation Note: When selecting a mounting position, it is important to consider the suitability of the wall construction. It must support the weight of the assembled unit as shown in the technical specification. The control module has a mass of 13.0kg and the bowl has a mass of 23.0kg... -
Page 13: Fascia Mounting Guidelines
Product Manual PSH-30 series Hand Wash Dryer 7.1.4. Fascia Mounting Guidelines Figure 2: PSH-30 installation dimensions Revision 1... - Page 14 Product Manual PSH-30 series Hand Wash Dryer 1) Remove the basin fascia, with attached waste pipe, M10 studs, installation brackets and air ducting relevant to the variant being installed from the packaging. Figure 4: Fascia clamping brackets Figure 3: PSH-30 fascia dimensions To fit the four threaded studs into the mounting points on the rear side of the hand basin, apply ‘Loctite 270’...
-
Page 15: Control Module Mounting Methods
Product Manual PSH-30 series Hand Wash Dryer 3) The front of the basin must be sealed to the wall face with a suitable hard set no pick mastic. The fascia has a 6mm chamfer running around the rear mounting face for mastic sealing to the wall. - Page 16 Product Manual PSH-30 series Hand Wash Dryer When affixing the mounting bracket to the fascia brackets use 4x M8x16 screws with star washers. When mounting in thin walls (below 128mm thickness) spacer brackets are to be fitted, to allow clearance for hoses and connections, these are attached with an additional 4x washers and 4x screws.
- Page 17 Product Manual PSH-30 series Hand Wash Dryer When the mounting bracket has been fastened to the wall, the control module, water heater bracket and pipe work can all be connected. The most efficient time to install the fittings will vary depending on whether the control module is being direct mounted or remotely mounted.
-
Page 18: Connecting The Control Module To The Fascia
Product Manual PSH-30 series Hand Wash Dryer 7.1.6. Connecting the control module to the fascia Figure 11: control module mounted to fascia Figure 12: Control Module I/O arrangement. Revision 1... - Page 19 Product Manual PSH-30 series Hand Wash Dryer 1) Check the installation position of the control module relative to the bowl, then cut the air hose to length, a hacksaw or snips may be required to cut through the core of the hose. The hose can then be attached to the fascia air duct adaptor using one of the jubilee clips provided.
- Page 20 Product Manual PSH-30 series Hand Wash Dryer 4) Install the 15mm push fit connector onto the 15mm stem on the back of the bowl. For units with drinking water, the push fit is a tee connector, for other units the push fit is a 90-degree elbow.
- Page 21 Product Manual PSH-30 series Hand Wash Dryer 7) Install the Control module onto the mounting brackets or wall as required. For standard installations mount the control module to the threaded inserts in the fascia mounting brackets. Use 4x M8 nuts and star washers provided.
- Page 22 Product Manual PSH-30 series Hand Wash Dryer 11) Insert the 2x piezo cables into the jack sockets on the engine. Ensure the XLR cable to the solenoid valve is fully inserted. handwash Drinking water Figure 21: Piezo and XLR connections 12) Install the M5 end of the earth cable onto the earth point on the control module body using the fasteners provided.
- Page 23 Product Manual PSH-30 series Hand Wash Dryer 14) Connect the water inlet hose to the water connection on the left of the unit. Ensure that the isolator and check valve fitting is installed in the correct orientation on the inlet hose an arrow with the direction of flow is shown on the body of the valve.
-
Page 24: Soap Hook Mounting Guidelines
Product Manual PSH-30 series Hand Wash Dryer 7.1.7. Soap Hook Mounting Guidelines The soap hook can be installed remotely from the module in a position convenient for access, and within space constraints. 0.6m of soap tube is supplied for connection between the soap bottle and the module. -
Page 25: Mains Water Connection To Control Module
Product Manual PSH-30 series Hand Wash Dryer 7.2. Mains Water Connection to Control Module The hand wash unit can be used with various water input methods with all internal components suitable for contact with water up to 60°C. The water temperature can be either controlled by an affixed water heater or supplied from an external mixed water supply. -
Page 26: Commissioning For Use
3. Fully open the mains water supply isolating tap. Check the incoming water connections for leaks. 4. Switch ON the power to the Control Module, this will power-up the Wallgate PSH-30 ready for use. 5. Upon initial power-up, the Wallgate PSH-30 automatically runs through a 15-second water calibration cycle. - Page 27 Product Manual PSH-30 series Hand Wash Dryer 8. Unscrew the cap from the soap container and replace with the push-fit cap pre-connected to the soap tube pushing fully into place ensuring no leaks. 9. Press the soap prime switch on the underside of the Control Module (an access hole has been put into the water heater mounting bracket) until soap is consistently dispensed into the bowl.
-
Page 28: Programmed Settings
Any service or repair work must be done by a qualified engineer. During the warranty period, the service or repair must only be done by a Wallgate engineer or appointed service agent. Refer to the Wallgate terms and conditions for warranty information. - Page 29 Product Manual PSH-30 series Hand Wash Dryer Item Description Item Description MED Fan speed LED indicator Menu Select button LOW Fan speed LED indicator UP Button Air Heater ON/OFF DOWN Button Air Heater OFF LED indicator ENTER Button Air Heater ON LED indicator...
-
Page 30: Operation
Product Manual PSH-30 series Hand Wash Dryer 8.1. Operation The hand wash and dry cycle is activated when the “Handwash & Drier” piezo button is pressed. When the cycle starts, a sequence of soap, warm water and hand dryer air are dispensed. Note that the water dispensing, and hand dryer functions include a feature to auto-cancel a cycle that is in operation should the user remove their hands from underneath the tap head before either cycle has completed its preset time. -
Page 31: Advanced Adjustment
IR sensor trigger or activation length. Warning! Incorrect alterations to the default hand wash settings may result in malfunctions or possible unit damage. If in any doubt, contact “Wallgate after-sales service” for advice & information. Description Factory... - Page 32 Instructions can be downloaded from the Wallgate web site or contact Wallgate Ltd ✓ Restore the control module to factory default settings. ✓ Instructions to change the cycle sequence of soap – water – hand dryer.
-
Page 33: Hygiene Purge Adjustment
Product Manual PSH-30 series Hand Wash Dryer 8.2.1. Hygiene Purge Adjustment Follow the instructions in the previous section to enter and navigate the F-Functions menu. F54 and F55 sets the time of day to purge, F56-F62 enable/disable specific days to purge, the repeat setting (F63) refers how many purges required, interval is the time between purges (F64) and the run time (F65) is the water purge time. -
Page 34: Care, Routine Maintenance, Service And Repair
Product Manual PSH-30 series Hand Wash Dryer 9. Care, Routine Maintenance, Service and Repair The PSH-30 is well designed and manufactured from high-quality materials. If you install, operate, and maintain it according to the instructions given in this manual, the unit will give reliable and efficient service. -
Page 35: Service And Repair
Any service or repair work must be done by a qualified engineer. During the warranty period, the service or repair must only be done by a Wallgate engineer or appointed service agent. Refer to the Wallgate terms and conditions for warranty information. -
Page 36: Spare Parts
EMC Filter FU0500-FBA-1-AH-C Fan Blower Unit Figure 33: Spare Parts List A large range of Wallgate spares and replacements can be found and ordered directly at www.shop.wallgate.com Wallgate Ltd offers comprehensive after-sales and service support. For more information, contact Wallgate Ltd 01722 744594 or visit www.wallgate.com... - Page 37 Product Manual PSH-30 series Hand Wash Dryer Appendix Description Range Remarks Mode Defaults Water Time A Seconds Water Time D Seconds Drier Time B Seconds Soap Time A Seconds. (Note 5) Manual Mode Soap Time Soap Time B Seconds Delay Time B 10.0...
- Page 38 Product Manual PSH-30 series Hand Wash Dryer 9999 Press and Hold Select to Operation Counter (Note 6) Reset. (X 100 Operations) Liquid Pump Iterations (Note 7) (Note 7) F100 Foam Pump Iterations F134 Soap Counter X 100 Operations. F135 Fan Counter Fan Usage in Hours.
- Page 39 Wallgate Ltd. Crow Lane, Wilton, Salisbury, Wiltshire, SP2 0HB, England tel: +44 (0) 1722 744594 fax: +44 (0) 1722 742096 email: service@wallgate.com web: www.wallgate.com...
