Hand Wash Drier
Models FMX-20 & 25
Product Manual.
For technical advice, or further information on Wallgate products,
Contact our Customer Services Department
Tel: (01722) 744594 Fax: (01722) 742096 Sales, or 742933 Service,
Email: sales@wallgate.com, service@wallgate.com
Crow Lane, Wilton, Salisbury, Wiltshire SP2 0HB
www.wallgate.com
Advertisement
Table of Contents
Related Manuals for Wallgate FMX-20
Summary of Contents for Wallgate FMX-20

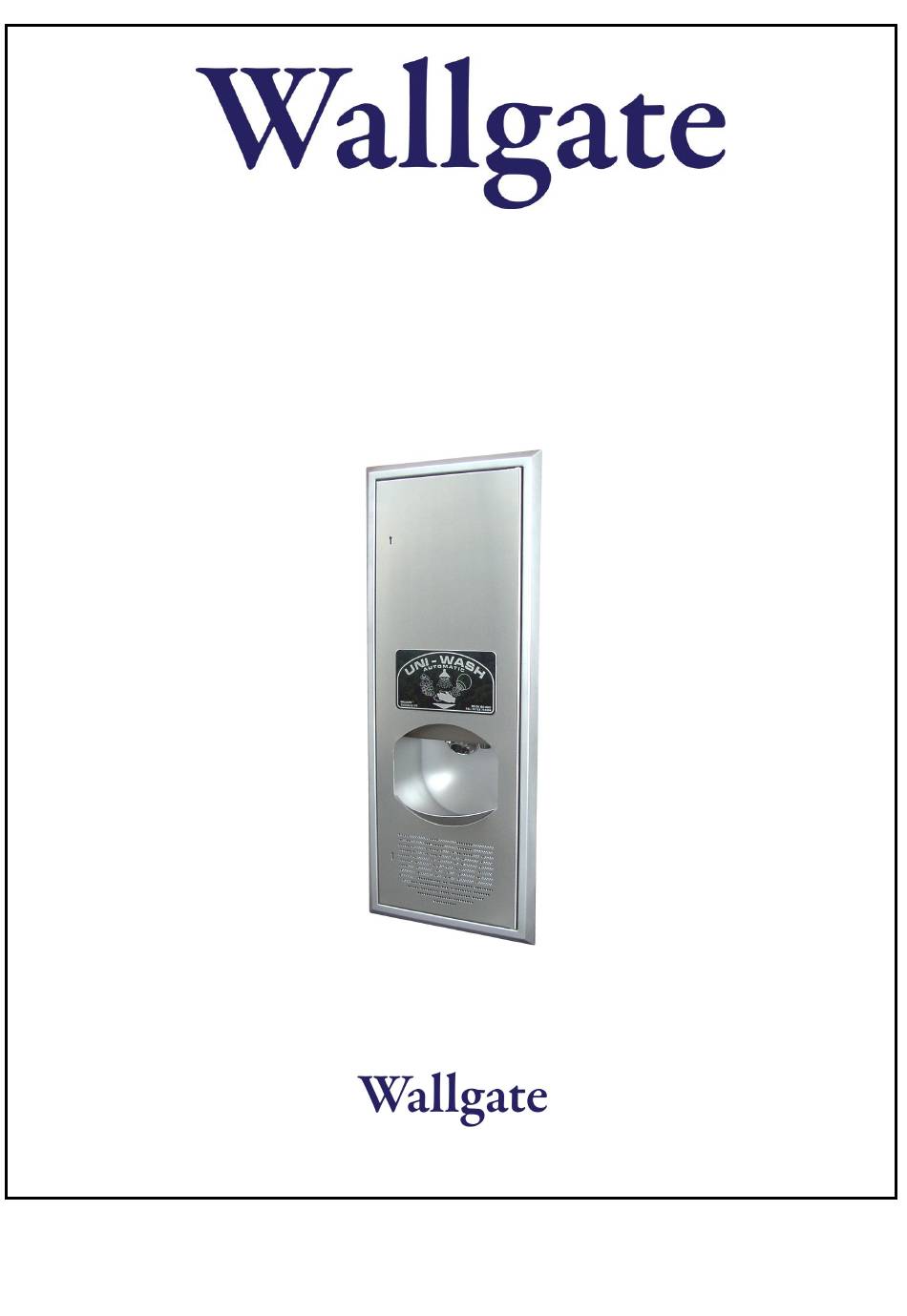

- Page 1 Hand Wash Drier Models FMX-20 & 25 Product Manual. For technical advice, or further information on Wallgate products, Contact our Customer Services Department Tel: (01722) 744594 Fax: (01722) 742096 Sales, or 742933 Service, Email: sales@wallgate.com, service@wallgate.com Crow Lane, Wilton, Salisbury, Wiltshire SP2 0HB...
- Page 2 INSTALLATION & COMMISSIONING INSTRUCTIONS. HAND WASH DRIER MODELs FMX-20 & 25. CONTENTS Ensure the following items are in the box on unpacking: 1 x FMX Hand wash drier unit - 2 x Installation plates 4 x Door keys - 1 x 2.5ltr Soap container 1 x Installation &...
- Page 3 c) Terminate the supply cable into the terminal block positions "L E N" located on the left side of the cabinet and secure it within the cable clamp. The cable must not come into contact with any other components or wiring within the unit. d) Earth bonding should be carried out to comply with Nationally Approved Regulations (IEE).
- Page 4 Wallgate as detailed on the front cover of this manual. The FMX hand wash drier is available in two model versions, the FMX-20 is push button operated & the FMX-25 is infra-red sensor operated. Both versions dispense liquid soap, warm water and warm air.
- Page 5 Priming the soap through the tube system: For the FMX-20 manual version, operate the soap button repeatedly until the soap is discharged into the bowl. For the FMX-25 infra red sensor version, press the soap prime button, located on the internal plastic insulation cover next to the electrical isolation switch.
