ELUX4 / ELUX8 / ELUX16
4 / 8 / 16 CH, H.264, 1080p Full HD Hybrid DVR
Quick Installation Guide
Copyright © EverFocus Electronics Corp.
Release Date: June, 2018
All the images including product pictures or screen shots in this document are for example only.
The images may vary depending on the product and software version. Information contained in
this document is subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eZ.HD ELUX16 and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus eZ.HD ELUX16

Summary of Contents for EverFocus eZ.HD ELUX16

  • Page 1 4 / 8 / 16 CH, H.264, 1080p Full HD Hybrid DVR Quick Installation Guide Copyright © EverFocus Electronics Corp. Release Date: June, 2018 All the images including product pictures or screen shots in this document are for example only.

  • Page 2: Front Panel

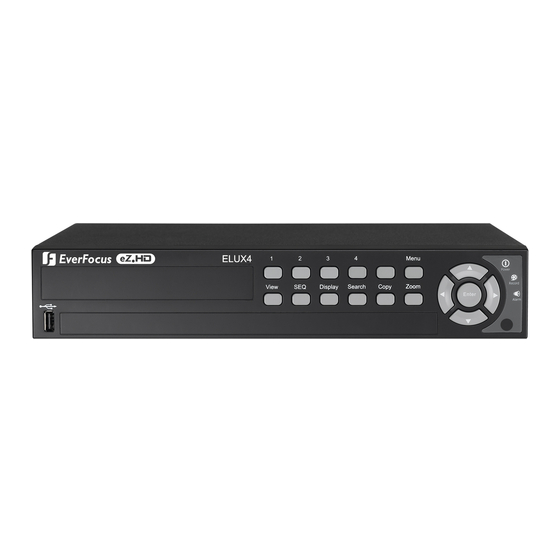

    ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR 1. Overview 1.1 Front Panel ELUX4 ELUX8 ELUX16...
  • Page 3 ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR No. Name Description Channel 1~4 / Press to display the channel in full screen. 1~8 / 1~16 Menu Press to enter/exit the Main Setup Menu. Power LED: Indicates the power is on. Status LED Record LED: Indicates the DVR is recording.

  • Page 4: Rear Panel

    ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR 1.2 Rear Panel ELUX4 CVBS ELUX8 (with 4 Alarm Inputs) ELUX8 (with 8 Alarm Inputs) Loopout 1-8 Audio In G 7 6 5 G 4 3 2 1 G NC C NO Audio In 3-8 Alarm In Alarm Out...
  • Page 5 HDMI cable (see 3.1 Monitor Connection). The USB2.0 port for connecting to a mouse, external storage USB2.0 Port device or EKB200 keyboard. Connects to the RS-485 device, such as EverFocus’ EKB-500 RS-485 Port keyboard. Connects to the DC 12V power source using the supplied Power Power Port Cord.

  • Page 6: Ez. Controller Function Description

    OSD through Preset 95. Note: 1. The eZ.Controller function for PTZ control is only supported for EverFocus AHD (1080p, 720p) PTZ cameras. 2. After connecting the PTZ camera to the DVR through the coaxial cable, you will have to go...
  • Page 7 Diagram A below. It will take extra effort, time and people to adjust the camera. Now, EverFocus’ eZ.Controller allows users to control the camera OSD simply on the monitor at the DVR end as illustrated in Diagram Use eZ.Controller to Control Camera OSD...

  • Page 8: Packing List

    Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.

  • Page 9: Hard Disk Drive Installation

    ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR 2. Hard Disk Drive Installation 2.1 ELUX4 You can install one 3.5” HDD inside the ELUX4 DVR for recording videos. Make sure the DVR is power-off. Unscrew the three housing screws on the rear panel of the DVR. Push the housing cover a little bit backward and then remove the housing cover.
  • Page 10 ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR Connect the internal power cable to the HDD. Screw back the housing cover to the DVR. Format the HDD after the installation is complete. 2.2 ELUX8 / ELUX16 You can optionally install two 3.5” HDDs inside the ELUX8 / ELUX16 DVR for recording videos. Follow the first three steps above to remove the DVR cover.

  • Page 11: Hard Disk Compatibility List

    2.3 Hard Disk Compatibility List Please go to the ELUX4 / ELUX8 / ELUX16 Web page on our website http://www.everfocus.com.tw to see the latest Hard Disk Compatibility List. It’s recommended to use the hard disk models listed in the Hard Disk Compatibility List to ensure your hard disks will be compatible.

  • Page 12: Basic Connection

    5. Use a standard RJ-45 cable to connect the DVR to the network for remote viewing or using EverFocus surveillance system (VANGUARD CMS) . 6. Optionally connect a mouse to the DVR to control the system. You can also control the system using the supplied IR Remote Control or the control keys on the front panel.

  • Page 13: Monitor Connection

    ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR 3.1 Monitor Connection Connect the monitor to the HDMI, VGA or BNC port on the rear panel of the DVR. The DVRs provide 2 main monitor outputs (HDMI and VGA) and 1 call monitor output (BNC). The main monitor output can deliver full HD output resolution (1920x1080, progressive, 60 Hz.
  • Page 14 ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR 3.2 Alarm I / O You can connect the DVR to alarm input and output devices. The number of alarm input and output are described as below: Model Elux4 Elux8 Elux16 Alarm Input 4 (N.O.

  • Page 15: Turning On/Off The Power

    The RS-485 port, located on the rear panel of the DVR, can be used to connect to an RS-485 keyboard, such as EverFocus’ EKB500, for controlling PTZ cameras or connect to a POS device. For details on the RS-485 configurations on the DVR, please refer to 6.9.5 I/O Control in the User’s Manual.

  • Page 16: Checking The Dynamic Ip Address

    You can look up the IP address and access the Web interface of the DVR using the IP Utility (IPU) program, which is included in the software CD. The IP Utility can also be downloaded from EverFocus’ Website: . Please connect the DVR on the same LAN of your http://everfocus.com.tw...
  • Page 17 ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR 3. To optionally configure the Machine Name, IP Address, IP Type or Port Number using the IPU: a. Log in the DVR by checking the desired model and then click the Log in icon.
  • Page 18 ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR If you log in for the first time, follow the instruction steps on the interface to update the latest Plugin version (ePlayer). After reloading the webpage, the login window pops up again. Type the user ID and password to log in again.
  • Page 19 ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR If you encounter the following problem or still can’t access the remote Web interface, please see below:  If the Error window appears, please be sure to close ALL the Web browser windows first then click Retry.
  • Page 20 ELUX4 / ELUX8 / ELUX16 Full HD Hybrid DVR  If your PC or laptop is running with Windows, it’s required to run the browser as administrator when first entering the remote web page of the device. Go to C:\Program Files (x86)\Internet Explorer, right-click the browser and then click Run as administrator.

  • Page 21: Specification

    OSD Menu System Control Front Panel Buttons, Mouse, IR Remote Control Pentaplex Operation Simultaneous Live, Recording, Playback, Archive and Remote Viewing PTZ Protocol Supported EverFocus, Pelco D, Pelco P, Samsung, Transparent Video Compression Format H.264 Video Format NTSC / PAL...
  • Page 22 LAN Speed 10 / 100 / 1000 Mbps (RJ45) IE11 and later, Firefox 50 and earlier, Chrome 44 and earlier, EF Web Browser browser 1. EverFocus’ VANGUARD CMS. Other Remote Application 2. EverFocus’ mobile app: MobileFocus (iOS and Android); MobileFocusHD (iPad).
