4. WIRING
Note: For whole house line seizure with DSL service present on the phone line, you must install a filter. It is suggested to
use the DSL alarm filter model manufactured by Excelsus Technologies, or equivalent. This filter simply plugs into the
RJ31X jack and allows alarm reporting without breaking the internet connection.
D-302887
PHONE WIRING IN NORTH AMERICA
ZONE 29 & SIREN WIRING
MAGNETIC CONTACT
OR ANY OTHER
(NOT A DETECTOR)

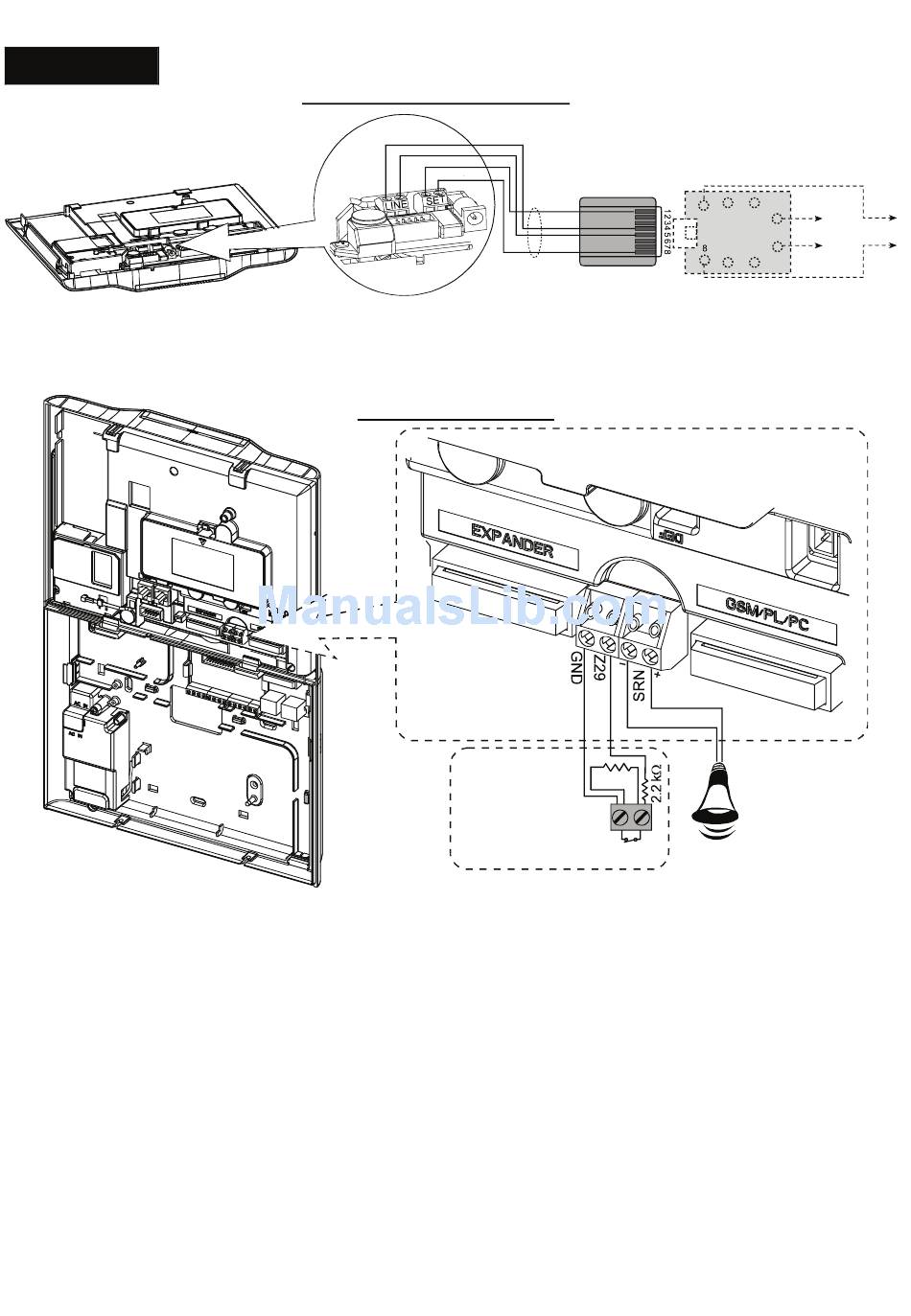

Figure 4 - Wiring
8-POSITION
RJ-31X PLUG
BROWN
RED
GREEN
GRAY
RJ-31X
CORD
2.2 kΩ
CONTACT
Alarm
N.C.
RJ-31X JACK
GRAY
RED
2 3 4
1
LINE
HOUSE
FROM
RJ-31X
PHONES
STREET
5
7 GRN
6
BROWN
SITE EXTERNAL SIREN
MG ELECTRONICS
MG441PDS OR SIMILAR
SIREN
(6-12VDC, 150mA max.)
