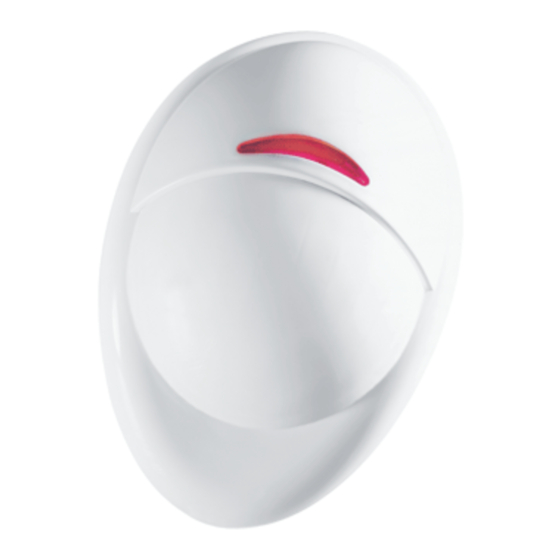

Visonic NEXT PG2 Datasheet

Next PG2/
Next-K9 PG2
Two-way
Wireless PIR/
Pet-immune
Motion
Detectors
•
PowerG two-way Frequency Hopping
®
Spread Spectrum FHSS-TDMA technology -
provides robustness and reliability closer
than ever to wired
•
15m (50ft) 90
o
with "wall" creep zone
•
Pet tolerant model (Next-K9 PG2)
ignores pets weighing up to 38kg (85lb)
•
Large transmission range enabling
repeater-free installations
•
Longer battery life (up to 6 years with
typical use)
•
Visible signal quality indication shown
on the device
•
Enhanced false alarm immunity by
combined Fresnel and cylindrical optics
•
Visible and transmitted low battery
indication
•
Compatible with PowerMaster systems
and PowerG receivers
, Next, PowerG and PowerMaster are registered trademarks of Visonic Ltd. Other names are the
property of their owners. Visonic reserves the right to change information or specifications without notice.
multiple-curtain coverage
Next PG2 and Next-K9 PG2 are two-way
®
wireless digital PIR detectors which are
compatible with PowerMaster
systems. Based on Visonic's ground-
breaking PowerG technology, these
detectors combine several field-proven
advanced technologies which deliver
longer transmission range and battery
life, as well as unmatched advan-tages
for professional installers, central moni-
toring stations and end-users alike.
Specifications:
Battery type:
Weight
(including battery):
Operating
temperature:
Operating
environment:
Dimensions:
alarm
®
3V, CR-123A
Lithium battery
70g (2.5oz)
-10°C to 50°C
(14°F to 122°F)
Indoor
94.5 x 63.5 x 53mm
(3.7 x 2.5 x 2.06in)
