Visonic NEXT PLUS Series Installation Instructions

NEXT PLUS NEXT PLUS NEXT PLUS NEXT PLUS
PIR, K9-85, DUO, DUO K9-85, DUO AM, DUO AM K9-85
Installation instructions for PIR, Pet-Tolerant, Dual technology PIR/MW, Pet-
English
Tolerant Dual Technology PIR/MW, Dual technology PIR/MW Anti-Masking, Pet-
Tolerant Dual technology PIR/MW anti-masking Detectors.
Instrucciones de instalación de Detectores PIR, inmune a mascotas, Doble
Español
tecnología PIR/MW, Doble tecnología PIR/MW inmune a mascotas, Doble
tecnología PIR/MW anti-enmascaramiento, Doble tecnología PIR/MW anti-
enmascaramiento e inmune a mascotas
Instruções de instalação dos Detectores PIR, Tolerante animais de companhia,
Portuguese
Dupla tecnologia PIR/MO, Dupla tecnologia tolerante animais de companhia
PIR/MO; Dupla tecnologia PIR/MO anti-máscara, Dupla tecnologia PIR/MO anti-
máscara imune a animais.
ENGLISH ENGLISH
ENGLISH ENGLISH
1. FEATURES
• Combined Fresnel and cylindrical optics improves detection range and
false alarm immunity.
• Advanced True Motion Recognition algorithm (patented) reduces false alarms.
• Easy installation, free of vertical adjustment.
• "Creep zone", down looking optics.
• Pet tolerant (K9-85, DUO K9-85 & DUO AM K9-85 only) up to 38 kg (85lb)
• Optical chamber - sealed for insects.
• A TEST input permits switching the detector to walk-test mode remotely,
without removing the front panel.
• Microprocessor-controlled.
• 1 or 2 consecutive motion events trigger an alarm (selected by a jumper).
• The NEXT PLUS K9-85 is similar to NEXT PLUS PIR, but with Target
Specific Imaging™ ™ ™ ™ (TSI) for distinguishing between human beings and
pets - it is immune to pets weighing up to 35 kg (85lb).
• The NEXT PLUS DUO K9-85 is similar to NEXT PLUS DUO, but with
Target Specific Imaging™ ™ ™ ™ (TSI) for distinguishing between human
beings and pets - it is immune to pets weighing up to 38 kg (85lb).
• The NEXT PLUS DUO AM uses MW (microwave) adaptable to the
protected area by a range selector and includes anti-masking feature.
• The NEXT PLUS DUO AM K9-85 is similar to NEXT PLUS DUO AM but
with Target Specific Imaging and is immune to pets weighing up to 38 kg
(85lb).
2. SPECIFICATIONS
Input Voltage: 9 to 16 VDC
Note:
Power to the detector should be provided by:
1. Control panel with IEC 60950-1 safety approved SELV/LPS DC output
or,
2. External power supply with IEC 60950-1 safety approved SELV/LPS DC output
Max. STBY Current Drain @ 12 VDC: 9 mA (PIR & K9-85)
22 mA (DUO, DUO K9-85, DUO AM & DUO AM K9-85)
Selectable Ranges (DUO, DUO K9-85 , DUO AM & DUO AM K9-85 only): 5,
10 and 15m (16, 32 and 49 feet)
Motion Detection Indication:
MODEL EVENT
PIR / K9-85 Power up
Alarm
Power up
DUO
PIR detection
DUO K9-85
MW detection
DUO AM
PIR & MW (=alarm)
DUO AM K9-85
AM (mask detected)
OPTICAL
Coverage Pattern: see fig. 2
Lens Data
No. of beams/curtains:
PIR/DUO/DUO-AM:: 18 far, 18 mid, 10 close.
K9-85/DUO K9-85/DUO AM K9-85: 18 far, 18 mid, 18 close.
Max. Coverage: 15 x 15 m (49 x 49 ft) / 90°
MW SECTION
(DUO, DUO K9-85, DUO AM & DUO AM K9-85 only)
Oscillator Type: Microstrip, DRO-stabilized
Frequency: 2.45 GHz
Detection Range: Up to 15 m
ALARM and TAMPER
Alarm Output: Solid-state relay, N.C., up to 100 mA / 30 V, ~30 Ω internal
resistance. Circuit opens for 2-5 sec. upon alarm.
Event Counter: Selectable, 1 or 2 motion events
Tamper Contacts: Normally closed, 50 mA resistive / 30 VDC
TRB Output
(DUO-AM and DUO AM K9-85 only):
39 KOhm pull up resistor, 50mA max.
MOUNTING
Surface or corner, at the height of 1.8 to 2.4 m (6 to 8 ft). Recommended height for
K9-85 & DUO K9-85 AM 1.8 - 2.1m (6 - 7ft)
Note: Base allows single-sided corner mount at 45° to wall.
ACCESSORIES
BR-1: Surface mounted swivel bracket, adjustable 30° down and 45° left/45° right
D-305903 NEXT PLUS Installation Instructions / Instrucciones de instalación / Instruções de instalação
LED indication
Red flashes
Red light (2-5 sec.)
Green & red flash alternately
Orange light (2-5 sec.)
Green light (2-5 sec.)
Red light (2-5 sec.)
Orange flashes
Open collector with
BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter
ENVIRONMENTAL
Operating Temperature: –10° C to 50° C (14° F to 122° F)
Storage Temperature: –20° C to 60° C (–4° F to 140° F)
RFI Protection: Greater than 20 V/m (20 MHz to 2000 MHz)
Compliance with Standards: EN 50131-1 Grade 2, Class II
PHYSICAL
Size (H x W x D): 94.5 x 63.5 x 49.0 mm (3-11/16 x 2-1/2 x 1-15/16")
Weight: PIR, K9-85: 50g (1-3/4 oz) approx.
DUO K9-85 AM & DUO AM: 63g (2-1/5 oz)
PATENTS
U.S. Patents 5,693,943 6,211,522
The DUO, DUO K9-85, DUO AM DUO AM K9-85 comply with the essential
requirements and provisions of Directive 1999/5/EC of the European Parliament
and of the Council of 9 March 1999 on radio and telecommunications terminal
equipment.
2.45 GHz has no restriction in any EU member state.
3. INSTALLATION
3.1 General Guidance
1. Keep away from heat sources.
2. Do not expose to air drafts.
3. Do not install outdoors.
4. Avoid direct sunshine.
Additional Guidelines for DUO, DUO K9-85, DUO AM & DUO-AM K9-
85 Detectors
A. Microwave radiation passes through glass and non-metallic walls. Be sure,
therefore, to select the correct range in accordance with the room size. This is
important to minimize the effect of movements occurring beyond room limits
which might cause the MW section to trip.
B. Large reflecting objects (especially metals) in the coverage area can distort
the microwave detector's coverage pattern.
C. If two DUO units are installed in the same room or on opposite sides of a
shared wall, they should not face each other and must be mounted at least
20 cm (0.6 ft) apart.
CAUTION! To prevent nuisance masking alerts of DUO-AM, do not install it near
doors or in narrow corridors, or in any other area where inadvertent approach to
less than 1 meter (3 ft) from the detector is likely to occur.
Important! The K9-85, DUO K9-85 & DUO AM K9-85
detectors are immune to 38 kg (85 lb) animals moving on
the floor or climbing on furniture as long as the activity
takes place below 1 m (3 ft). Above the 1 m (3 ft) height
limit, the detector is immune to 19 kg (42 lb) pets, but the
pet tolerance will decrease as the pet gets closer to the
detector. It is therefore recommended to select a mounting
location that minimizes potential close proximity of animals.
3.2 Installation Procedure
1. Mounting - see fig. 4.
2. Jumpers settings - see fig. 5.
3. Wiring - see fig. 6.
4. Walk-test the coverage area - see fig. 2. Walk across the far end of
coverage pattern in both directions. The LED should light for 2-5 seconds
each time your motion is detected.
Important! Instruct the user to walk test at least once a week to verify
proper operation of the detector.
4. SPECIAL COMMENTS
Even the most sophisticated detectors can sometimes be defeated or may fail to
warn due to: DC power failure / improper connection, malicious masking of the
lens, tampering with the optical system, decreased sensitivity in ambient
temperatures close to that of the human body and unexpected failure of a
component part. The above list includes the most common reasons for failure to
detect intrusion, but is by no means comprehensive. It is therefore
recommended that the detector and the entire alarm system be checked
weekly, to ensure proper performance.
An alarm system should not be regarded as a substitute for insurance. Home
and property owners or renters should be prudent enough to continue insuring
their lives and property, even though they are protected by an alarm system.
GB/US: Walk-Test LED
SP: LED de modo de pruebas
PT: LED do teste de passagem
GB/US: Lens
SP: Lente
PT: Lente

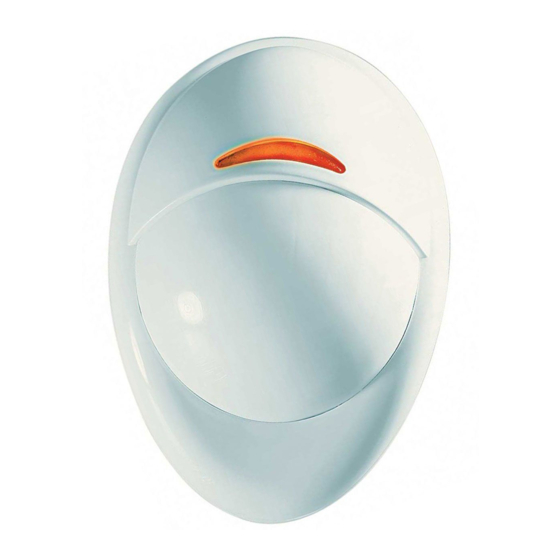

Fig. 1 - NEXT PLUS
D445,709 (other patents pending)
(see fig. 3)
5. Keep wiring away from power
cables.
6. Do not install behind partitions.
7. Mount on solid stable surface.
1
