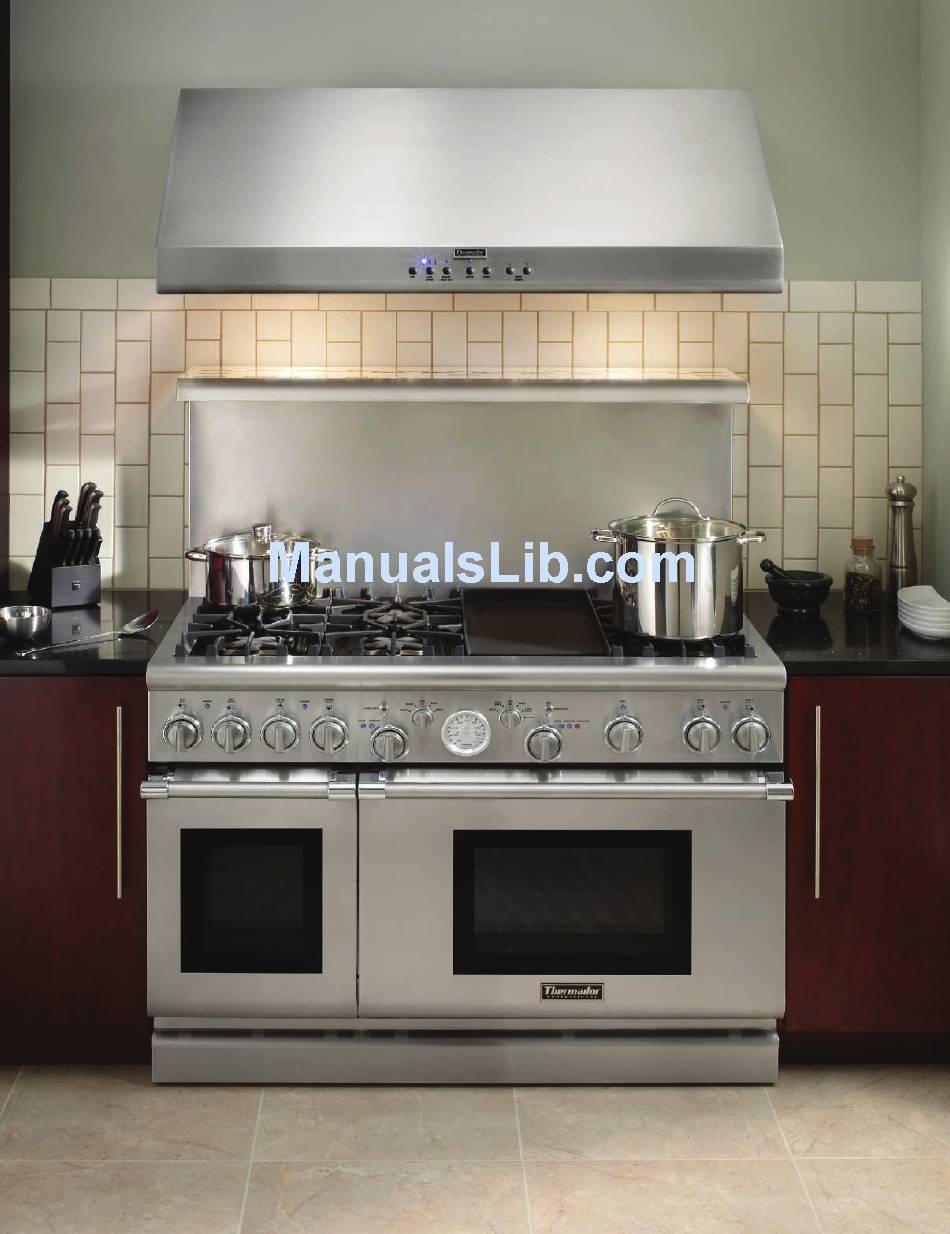

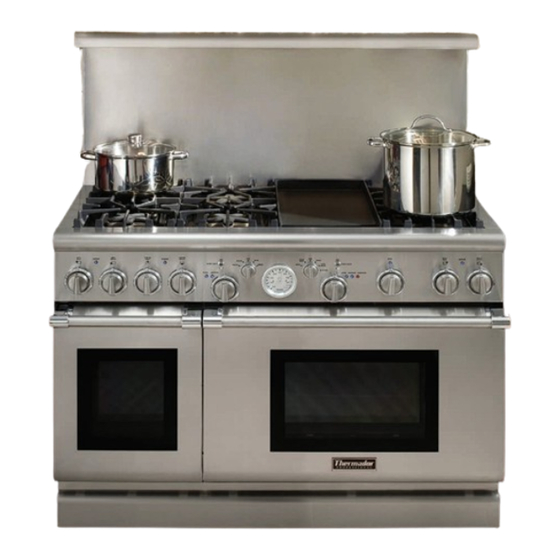

48-inch PRO GRAnD RAnGE MODEL PRD486EDPG ShOWn WiTh WALL hOOD Ph48cS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRD486EDG and is the answer not in the manual?

Questions and answers

Related Manuals for Thermador PRD486EDG

Summary of Contents for Thermador PRD486EDG

  • Page 1 48-inch PRO GRAnD RAnGE MODEL PRD486EDPG ShOWn WiTh WALL hOOD Ph48cS...
  • Page 2 PRO GRAND® RANGES 27-iNch DEPTh, DUAL-FUEL & ALL-GAS the combination of powerful performance and elegant styling makes thermador’s professional series ranges the epitome of american luxury in the kitchen. technologically advanced and visually stunning, our pro grand 27-inch depth ranges are available in highly ef cient all-gas or dual-fuel models, which marry a gas cooking surface with an electric convection oven.

  • Page 3: Features And Benefits

    It cycles the Star Burner on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring. Each and every Thermador Pro Grand Range features two ExtraLow burners.
  • Page 4 COOKTOP ChOICES Choose from classic all-stainless steel models or the new thermador models featuring a black porcelain cooking surface and multiple con gurations. ThIRD ELEMENT CONVECTION SYSTEM Our third element convection system provides superior baking and 25% time savings.

  • Page 5: Planning Information

    PLANNING INFORMATION MODEL OPTIONS DUAL-FUEL: thermador pro grand Dual-fuel ranges are dual rated, designed to be there are three sizes of thermador pro grand® ranges connected to either 240/208v aC, 60 hz, 4 wire, single-phase power supply. to choose from—30-inch, 36-inch and 48-inch—in the connection may be made with a range supply cord kit (purchased your choice of all-gas or dual-fuel con gurations.

  • Page 6: Warranty

    VENTILATION REQUIREMENTS typical placement of the electrical and gas supply We strongly recommend that a thermador professional Wall or island hood or can be found within the ”Cutout and range Custom insert be installed with all thermador pro grand ranges. Downdraft Dimensions“...

  • Page 7: Specifications

    GRAND® RANGES 30-INCh DUAL-FUEL Model: PRD304EG PRD304EG PERFORMANCE exclusive, patented star® Burner – most even heating, unsurpassed ame coverage every burner 15,000 BtU (ng) precision simmering capabilities as low as 100°f (375 BtU) with 2 extralow® simmer burners Widest range of simmer options from 375 BtU to 3,000 BtU powerful, 6-pass bake / 8-pass broil elements in large oven third element Convection offers precise air ow for cooking on multiple levels without avor transfer...

  • Page 8: Installation Options

    27-inches. these ranges can be installed in a wall or island installation. BACKGUARD the 30-inch thermador pro grand® range includes a 9-inch low backguard. an optional 22-inch high shelf backguard is also available. either backguard must be attached before sliding the range into the nal installed position.
  • Page 9 GRAND® RANGES 36-INCh DUAL-FUEL Model: PRD366EG, PRD366EPG PRD366EG AND PRD366EPG PERFORMANCE exclusive, patented star® Burner – most even heating, unsurpassed ame coverage every burner 15,000 BtU (ng) precision simmering capabilities as low as 100°f (375 BtU) with 2 extralow® simmer burners Widest range of simmer options from 375 BtU to 3,000 BtU powerful, 6-pass bake / 8-pass broil elements in large oven third element Convection offers precise air ow for cooking on...
  • Page 10 Wall or island hood or Custom insert measurement in inches be installed with all thermador pro grand ranges. Downdraft ventilation should not be used. Do not install a microwave-hood combination above the...
  • Page 11 GRAND® RANGES 36-INCh DUAL-FUEL Model: PRD364EDG, PRD364EDPG PRD364EDG AND PRD364EDPG PERFORMANCE exclusive, patented star® Burner – most even heating, unsurpassed ame coverage every burner 15,000 BtU (ng) precision simmering capabilities as low as 100°f (375 BtU) with 2 extralow® simmer burners Widest range of simmer options from 375 BtU to 3,000 BtU superior griddle results: 6-pass, 1630 watt electric griddle grill accessory is thermostatically controlled for even heating...
  • Page 12 Wall or island hood or Custom insert measurement in inches be installed with all thermador pro grand ranges. Downdraft ventilation should not be used. Do not install a microwave-hood combination above the...
  • Page 13 GRAND® RANGES 48-INCh DUAL-FUEL Models: PRD486EDG, PRD486EDPG PRD486EDG AND PRD486EDPG PERFORMANCE exclusive, patented star® Burner – most even heating, unsurpassed ame coverage every burner 15,000 BtU (ng) precision simmering capabilities as low as 100°f (375 BtU) with 2 extralow® simmer burners...
  • Page 14 Note: most hoods contain combustible components that professional Wall or island hood or Custom insert must be considered when planning the installation. be installed with all thermador pro grand ranges. measurement in inches Downdraft ventilation should not be used. Do not...
  • Page 15 GRAND® RANGES 30-INCh GAS Model: PRG304EG / PRL304EG PRG304EG / PRL304EG PERFORMANCE exclusive, patented star® Burner – most even heating, unsurpassed ame coverage every burner 15,000 BtU (ng) precision simmering capabilities as low as 100°f (375 BtU) with 2 extralow® simmer burners Widest range of simmer options from 375 BtU to 3,000 BtU powerful, 25,000 BtU bake and 17,000 BtU broil burners Convection Bake offers precise multi-level baking results...
  • Page 16 27-inches. these ranges can be installed in a wall or island installation. BACKGUARD the 30-inch thermador pro grand range includes a 9-inch low backguard. an optional 22-inch high shelf backguard is also available. either backguard must be attached before sliding the range into the nal installed position.
  • Page 17 GRAND® RANGES 36-INCh GAS Models: PRG366EG / PRL366EG, PRG366EPG PRG366EG / PRL366EG AND PRG366EPG PERFORMANCE exclusive, patented star® Burner – most even heating, unsurpassed ame coverage every burner 15,000 BtU (ng) precision simmering capabilities as low as 100°f (375 BtU) with 2 extralow®...
  • Page 18 NATURAL GAS OR LP thermador all-gas pro grand ranges are shipped by the factory to operate on natural gas or lp. Be sure to gas and electric connections...
  • Page 19 GRAND® RANGES 36-INCh GAS Model: PRG364EDG / PRL364EDG PRG364EDG / PRL364EDG PERFORMANCE exclusive, patented star® Burner – most even heating, unsurpassed ame coverage every burner 15,000 BtU (ng) precision simmering capabilities as low as 100°f (375 BtU) with 2 extralow® simmer burners Widest range of simmer options from 375 BtU to 3,000 BtU superior griddle results: 6-pass, 1,630 watt electric griddle grill accessory is thermostatically controlled for even heating...
  • Page 20 NATURAL GAS OR LP thermador all-gas pro grand ranges are shipped by the factory to operate on natural gas or lp. Be sure to gas and electric connections...
  • Page 21 GRAND® RANGES 48-INCh GAS Models: PRG486EDG / PRL486EDG, PRG486EDPG / PRL486EDPG PRG486EDG / PRL486EDG PRG486EDPG / PRL486EDPG PERFORMANCE exclusive, patented star® Burner – most even heating, unsurpassed ame coverage every burner 15,000 BtU (ng) precision simmering capabilities as low as 100°f (375 BtU) with 2 extralow®...

  • Page 22: Installation Options

    NATuRAL GAS OR LP Thermador All-Gas Pro Grand Ranges are shipped by the factory to operate on natural gas or LP. Be sure to order the correct fuel-type and verify that the type of...
