Document # PG05-001
Electrical Circuit
required
120 Vac, 60 Hz, 15 Amps.,
dedicated, grounded
ELEctRIcAL REqUIREmENts
All tolerances ±1/16" (±1.6mm) unless otherwise noted.
1 9/16"
(40mm)
Product width:
29 7/8" (759mm)
Specifications subject to change without notice.
Install all appliances according to accompanying installation instructions.
ER30G, ER30GI
30" wide, Epicure
All Gas Range
Total Connected
Load
4.0 Amps. @ 120 Vac,
60 Hz
45 9/16" (1157mm)
28 9/16" (725mm)
27 1/16" (687mm)
26 1/8" (664mm)
24" (610mm)
1 1/8" (29mm)
9" (229mm)
Backguard***
Grates extend
1" above trim
2" (51mm)
ER30GI:
Partial stainless
steel side panel
3" (76mm)
ER30G:
Full stainless
steel side panels

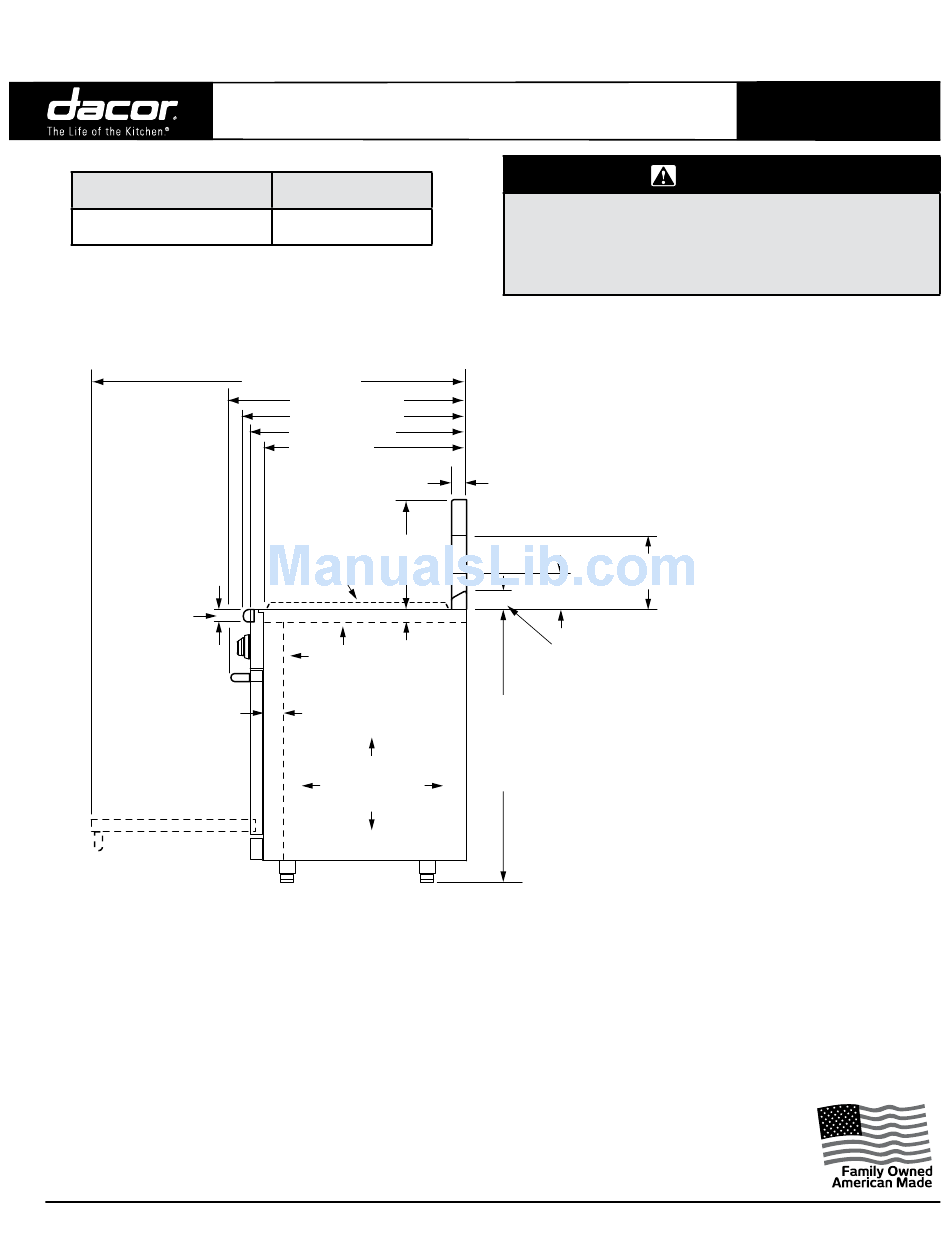

OvERALL DEPth DImENsIONs - sIDE vIEw
®
•
Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
•
This appliance must be installed in accordance with the
accompanying installation instructions.
Front of open door
Front of handle
Front edge of bullnose
Front panel
Rear of front panel
Backguard thickness
6" (152mm)
Backguard*
3" (76mm)
Backguard***
1 3/4" (44mm) Backguard**
*
Standard on model ER30G
Optional on model ER30GI, NOT
compatible with self-rimming installations
35"
(889mm)
**
Standard on model ER30GI
to
Optional on model ER30G
37 1/8"
***
Optional on both models, NOT
(943mm)
compatible with self-rimming installations
ER30G is designed for freestanding install-
ations. ER30GI is designed for installation
in a recessed cabinet or island. ER30G is
NOT equipped for self-rimming installation.
ER30G/ER30GI
www.Dacor.com
Revised 05/25/10 Page 1/3
PLANNING
GUIDE
warning
NOTE: Neither model is
compatible with a raised vent.
Phone: (800) 793-0093
5.1
Advertisement
Table of Contents
Related Manuals for Dacor Epicure ER30G
Summary of Contents for Dacor Epicure ER30G
- Page 1 Full stainless compatible with self-rimming installations steel side panels ER30G is designed for freestanding install- ations. ER30GI is designed for installation in a recessed cabinet or island. ER30G is Product width: NOT equipped for self-rimming installation. 29 7/8” (759mm) ER30G/ER30GI OvERALL DEPth DImENsIONs - sIDE vIEw Specifications subject to change without notice.
- Page 2 ER30G, ER30GI Document # PG05-001 Revised 05/25/10 Page 2/3 30” wide, Epicure PLANNING ® All Gas Range GUIDE All tolerances +1/16” -0 (+1.6mm, 0) unless otherwise noted. 30” (762mm) Minimum 37 1/8” (943mm) 30 1/16” (764mm) 36” (914mm) Recommended Maximum * See the cutout dimensions below for self-rimming installations nOTE: Self-rimming kit is included with model Er30gi.
- Page 3 ER30G, ER30GI Document # PG05-001 Revised 05/25/10 Page 3/3 30” wide, Epicure PLANNING ® All Gas Range GUIDE 12” (305mm) 12 1/2” (318 mm) 2 1/2” 14 5/8” (64mm) 1” (25mm) (371 mm) 3 1/2” 2 5/8” (89mm) (67 mm)
