GE JVB37HBB Owner's Manual & Installation Instructions page 11

36" COOKTOP/DOWNDRAFT
UNITS JVB67 AND JVB98
NOTE: Before you begin, measure and mark
Dimension 3 to ensure that adequate flat
countertop surface is available.

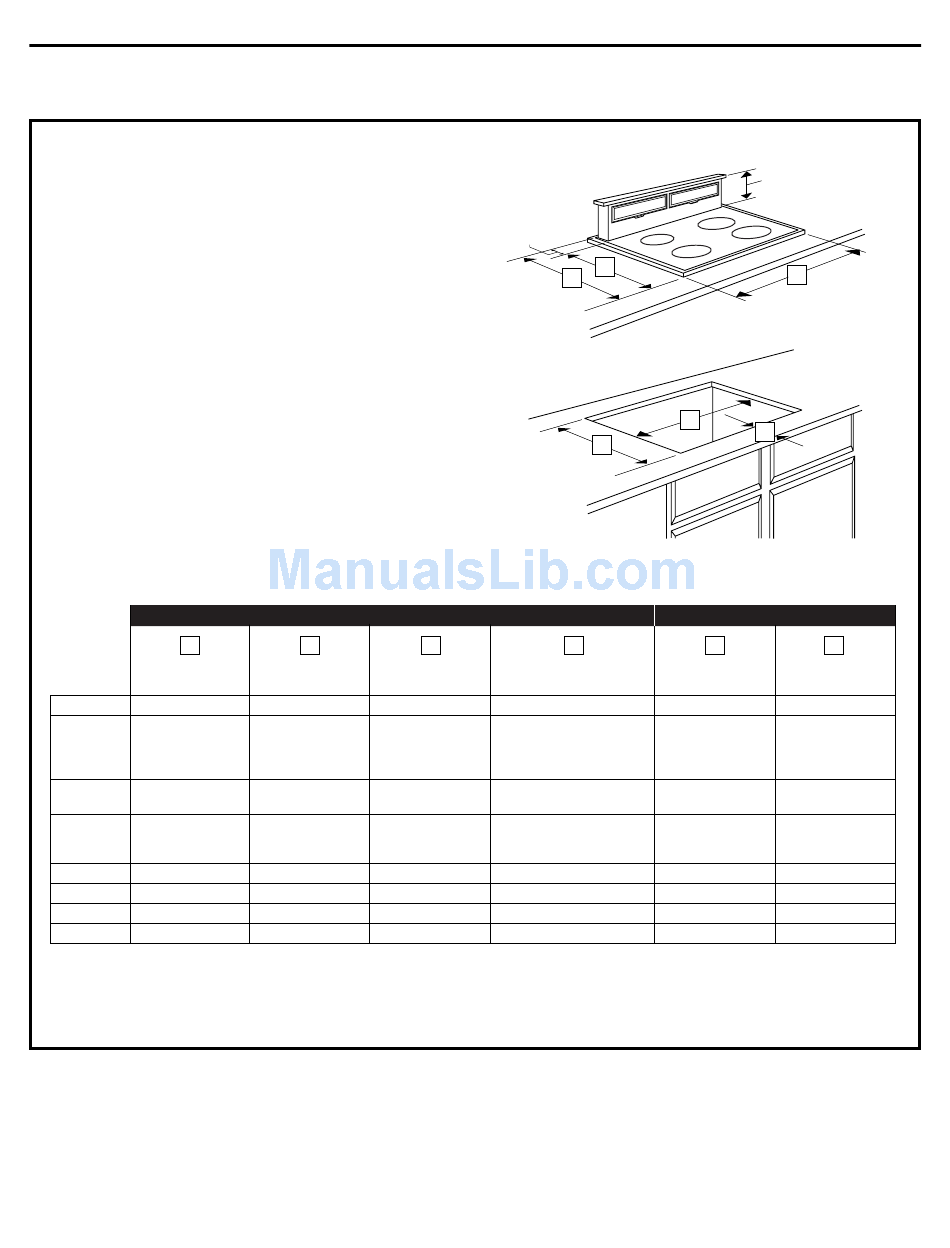

Identify the cutout illustration for the cooktop
model you are installing with this downdraft
vent system.
• Draw lines on the countertop to follow
as a cutting guide.
• Make sure sides of the opening are
parallel and rear and front cuts are
exactly perpendicular to sides.
Planning Installation 36" Electric and Gas Cooktops with Downdraft Vents
1
Overall
Model No. Width
JP626 35-1/2"
JP960
JP961
36"
JP968
JP969
JP960S
36-1/8"
JP968S
JGP628
JGP963 36"
JGP963S
JGP636 36"
JGP960S 36"
JGP962 36"
JGP962S 36-1/8"
**Includes 1/8" gap between cooktop and vent trim
**Required to maintain UL or AGA approvals
Installation Instructions
2 3
Cooktop Surface Surface Depth
Overall Depth with Downdraft*
21" 23-1/8"
20-3/8" 22-1/2"
21" 23-1/8"
21" 23-1/8"
21" 23-1/8"
21-1/4" 23-1/8"
20-7/16" 22-9/16"
21-1/16" 23-3/16"
"
2 1 ⁄
8
2
3
6
4
Minimum Setback
Cutout to Front Edge**
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
2-1/2"
11
"
8 1 ⁄
2
1
5
4
Preparing Cutout
5 6
Combined Combined
Cutout Width Cutout Depth
34" 21-1/8"
34" 21-3/4"
34" 21-7/8"
34" 21-7/8"
34" 21-7/8"
34" 22-7/8"
34" 21-3/4"
34" 22-1/8"
