Series DS-1 Dry-Type Sprinklers
5.6K Pendent, Upright, and Horizontal Sidewall
Standard Response, Standard Coverage
General
Description

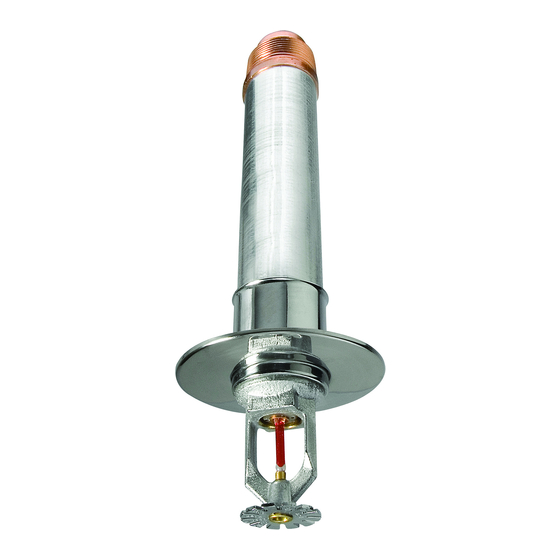

TYCO Series DS-1 Dry-Type Sprinklers,
5.6K Pendent, Upright, and Horizontal
Sidewall, Standard Response (5 mm
Bulb) and Standard Coverage, are
decorative glass bulb automatic sprin-
klers typically used where:
• pendent sprinklers are required on
dry pipe systems that are exposed to
freezing temperatures; for example,
sprinkler drops from
portions of buildings
• sprinklers and/or a portion of the
connecting piping may be exposed to
freezing temperatures; for example,
sprinkler drops from wet systems
into freezers, sprinkler sprigs from
wet systems into unheated attics, or
horizontal piping extensions through
a wall to protect unheated areas of a
building such as loading docks, over-
hangs, and building exteriors
• sprinklers are used on systems that
are seasonably drained to avoid
freezing; for example, vacation resort
areas
NOTICE
Series DS-1 Dry-Type
described herein must be installed
and maintained in compliance with this
document, as well as with the appli-
cable standards of the National Fire
Protection Association, in addition to
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and
components. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 10
www.tyco-fire.com
the standards of any other Authorities
Having Jurisdiction. Failure to do so
may impair the performance of these
devices.
Owners are responsible for maintaining
their fire protection system and devices
in proper operating condition. The
installing contractor or sprinkler manu-
facturer should be contacted with any
questions.
Series DS-1 Dry-Type Sprinklers must
only be installed in fittings that meet
the requirements of the Design Criteria
unheated
section.
Model/Sprinkler
Identification
Numbers (SINs)
TY3255 - Pendent
TY3155 - Upright
TY3355 - Horizontal Sidewall
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
Sprinklers
LPCB Approved: Ref No. 094a/11
CE Certified: EN 122.59-1
NYC Approved under MEA 352-01-E
Refer to Table A.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
1-inch NPT (Standard Order)
ISO 7-R1
Discharge Coefficient
K = 5.6 GPM/psi
(80,6 LPM/bar
Temperature Ratings
Refer to Table A.
1/2
)
1/2
MAY 2011
Finishes
Sprinkler: Natural Brass, Chrome
Plated, White Polyester
Escutcheon: White Coated, Chrome
Plated, Brass Plated
Physical Characteristics
Inlet. . . . . . . . . . . . . . . . . . . . . Copper
Plug . . . . . . . . . . . . . . . . . . . . Copper
Yoke . . . . . . . . . . . . . . Stainless Steel
Casing . . . . . . . . . . . . . . . Galvanized
Carbon Steel
Insert . . . . . . . . . . . . . . . . . . . Bronze
Bulb Seat . . . . . . . . . . Stainless Steel
Bulb . . . . . . . . . . . . . . . . . . . . . .Glass
Compression Screw. . . . . . . . Bronze
Deflector. . . . . . . . . . . . . . . . . Bronze
Frame . . . . . . . . . . . . . . . . . . . Bronze
Guide Tube . . . . . . . . . Stainless Steel
Water Tube . . . . . . . . . Stainless Steel
Spring . . . . . . . . . . . . . Stainless Steel
Sealing Assembly. . . Beryllium Nickel
Escutcheon . . . . . . . . . .Carbon Steel
*DuPont Registered Trademark
w/Teflon *
