Tyco DS-1 Series Quick Start Manual
Hide thumbs Also See for DS-1 Series:

Advertisement

Quick Links

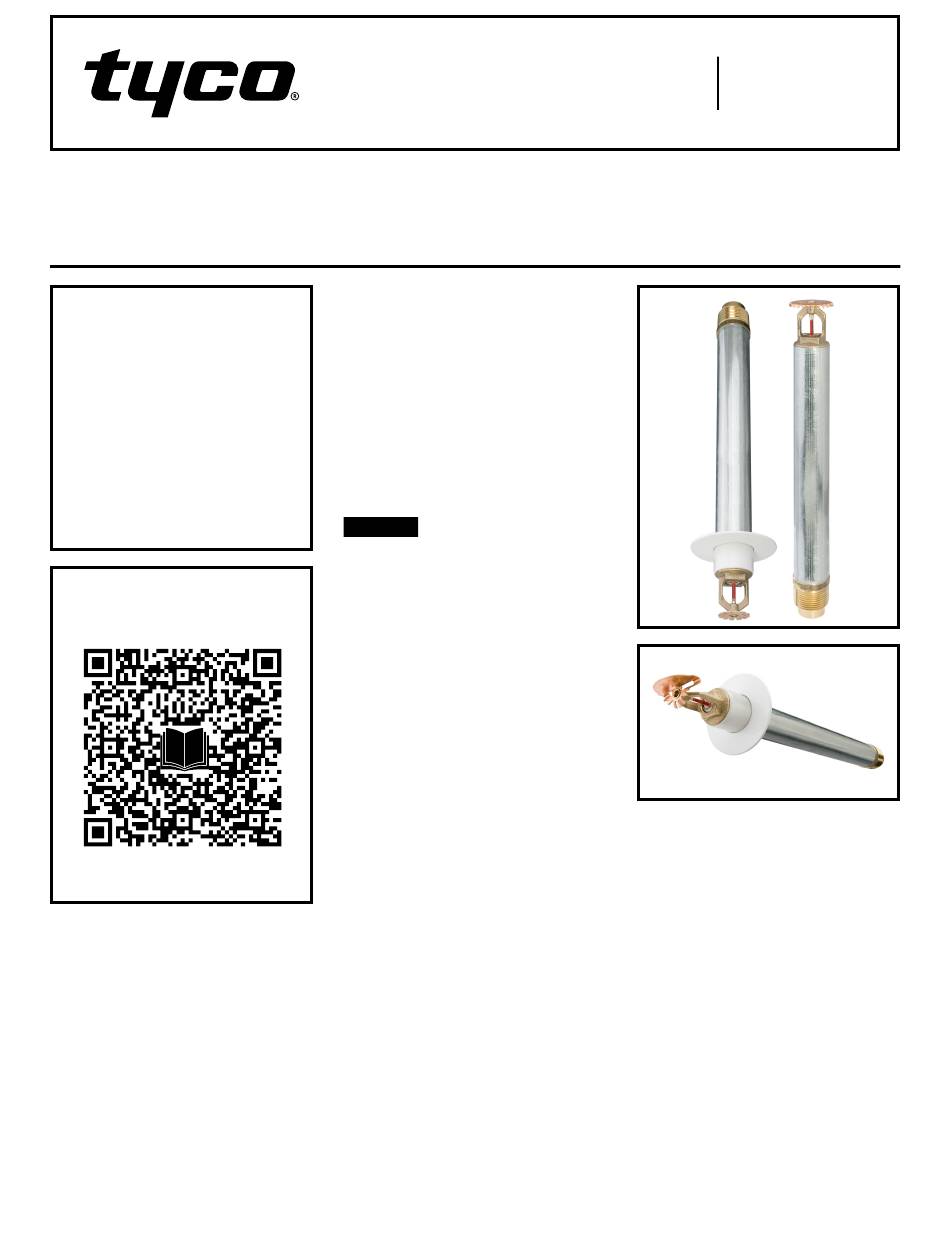

Series DS-1 Dry-Type Sprinklers
5.6K Pendent, Upright, and Horizontal Sidewall
Quick Response, Standard Coverage
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/series-ds-1-
dry-5_6-k-pen-up-side-quick
General
Description
TYCO Series DS-1 Dry-Type Sprinklers,
5.6K Pendent, Upright, and Horizontal
Sidewall, Quick Response (3 mm bulb)
and Standard Coverage are decora-
tive glass bulb automatic sprinklers
de signed for commercial use. Dry-type
sprinklers are typically used where:
• pendent sprinklers are re quired
on dry pipe systems that are
exposed to freezing temperatures;
for example, sprinkler drops from
unheated portions of buildings
Page 1 of 8
• sprinklers and/or a portion of the
connecting piping are exposed to
freezing temperatures; for example,
sprinkler drops from wet sys tems
into freezers, sprinkler sprigs from
wet systems into unheated attics, or
horizontal piping extensions through
a wall to protect an unheated areas
such as loading docks, overhangs,
and building exteriors
• sprinklers are used on systems that
are seasonally drained to avoid
freezing for example, vacation areas
NOTICE
The Series DS-1 Dry-Type Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any
authorities having jurisdiction. Failure
to do so may impair the performance
of these de vices.
The owner is responsible for maintain-
ing their fire protection system and
de vices in proper operating condi-
tion. Contact the installing contrac-
tor or product manufacturer with any
questions.
The Series DS-1 Dry-Type Sprinklers
must only be installed in fittings that
meet the requirements of the Design
Criteria section.
Sprinkler
Identification
Numbers (SINs)
3/4 in. NPT:
TY3935 – Pendent
TY3735 – Horizontal Sidewall
1 in. NPT:
TY3235 – Pendent
TY3135 – Upright
TY3335 – Horizontal Sidewall
APRIL 2022
Worldwide
www.tyco-fire.com
Contacts
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
EAC Approved
NYC Approved under MEA 352-01-E
Previous New York City Approval and MEA
certification numbers apply to product as
shown in this data sheet. In accordance with
Section BC 3502 of the Construction Code,
current NYC Approvals for use in the City of
New York apply to all products that contain
UL or FM Approvals and Listings; therefore,
not all products currently Approved for use
in the City of New York will carry an actual
MEA Certification number.
See Tables A and B for Approvals details.
TFP510
