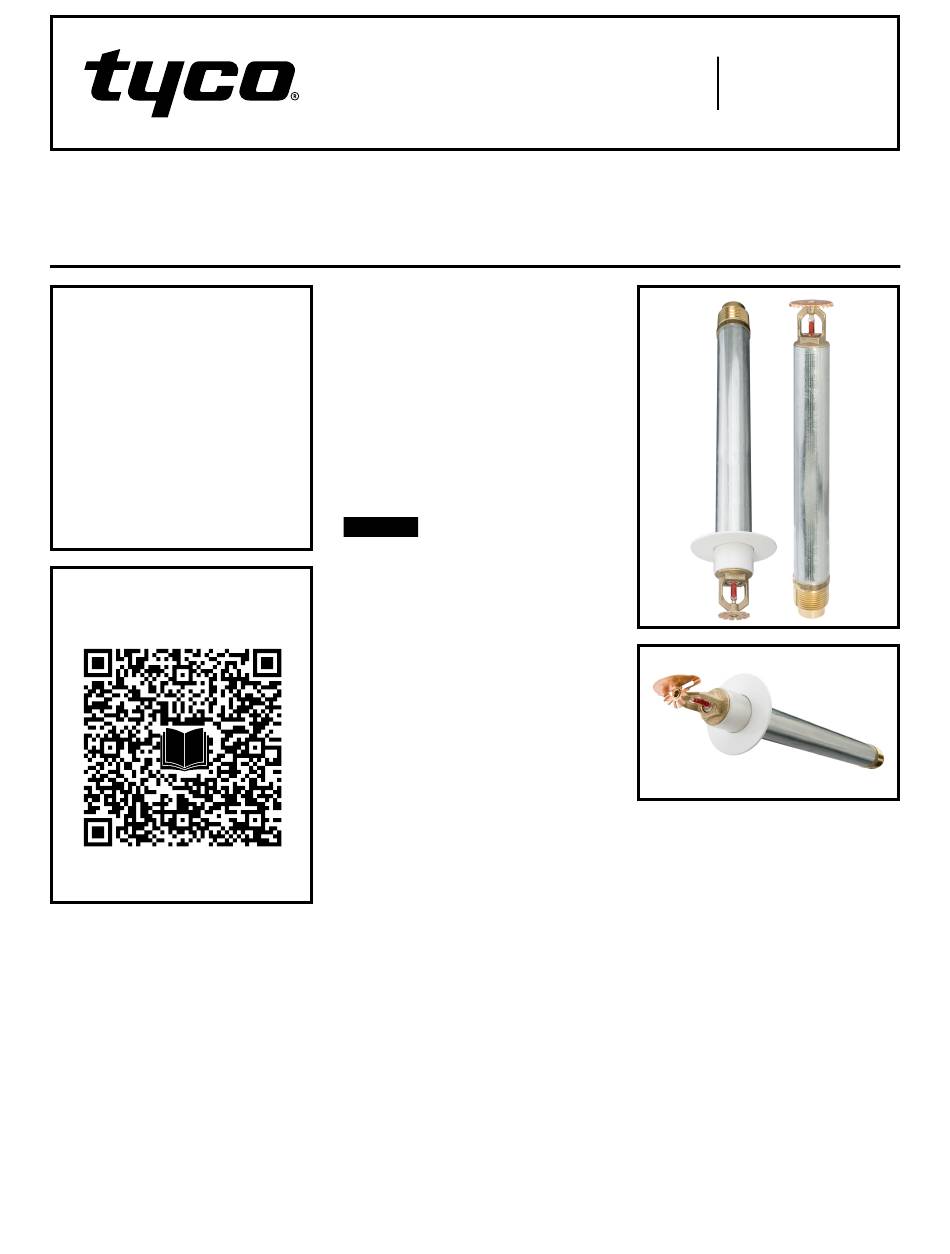

Series DS-1 – 5.6 K-factor, Dry-type Sprinklers
Pendent, Upright, and Horizontal Sidewall
Standard Response, Standard Coverage
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/series-ds-1-
5_6-k-dry-sprink-pen-up-side
General
Description
TYCO Series DS-1 5.6K Pendent,
Upright, and Horizontal Sidewall, Stan-
dard Response (5 mm bulb), Standard
Coverage Dry-type Sprinklers are dec-
orative glass bulb automatic sprinklers
typically used where:
• pendent sprinklers are required
on dry pipe systems that are
exposed to freezing temperatures;
for example, sprinkler drops from
unheated portions of buildings
Page 1 of 8
• sprinklers and/or a portion of the
connecting piping may be exposed
to
freezing
temperatures
example, sprinkler drops from wet
systems into freezers, or horizontal
piping extensions through a wall to
protect unheated areas of a building
such as loading docks, overhangs,
and building exteriors)
• sprinklers are used on systems that
are seasonably drained to avoid
freezing (for example, vacation
resort areas)
NOTICE
Series DS-1 Dry-type Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Series DS-1 Dry-type Sprinklers must
only be installed in fittings that meet
the requirements of the Design Crite-
ria section.
Sprinkler
Identification
Numbers (SINs)
TY3255 – Pendent
TY3155 – Upright
TY3355 – Horizontal Sidewall
APRIL 2022
Worldwide
www.tyco-fire.com
Contacts
(for
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
NYC Approved under MEA 352-01-E)
LPCB Approved, Reference No. 094a/11
CE Certified, Certificate of Conformity
No. 2831-CPR-S2015
EAC Approved
See Tables A and B for Approvals details.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
1 in. NPT
ISO 7-R 1
Discharge Coefficient
K=5.6 gpm/psi
(80,6 lpm/bar
½
Temperature Ratings
See Tables A and B.
)
½
TFP500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco DS-1 Series

  • Page 1 Description LPCB Approved, Reference No. 094a/11 Numbers (SINs) CE Certified, Certificate of Conformity No. 2831-CPR-S2015 TYCO Series DS-1 5.6K Pendent, TY3255 – Pendent EAC Approved Upright, and Horizontal Sidewall, Stan- TY3155 – Upright See Tables A and B for Approvals details.
  • Page 2 13 requirements). For more information Operation klers connected to CPVC piping, use on LPCB Approval, contact Johnson only the following TYCO CPVC fittings: Controls at the following office: • 1 in. x 1 in. NPT Female Adapter When TYCO Series DS-1 5.6K Pendent,...
  • Page 3 TFP500 Page 3 of 8 SPRINKLER FINISH SPRINKLER ESCUTCHEON TEMPERATURE BULB NATURAL CHROME TYPE TYPE RATING COLOR CODE POLYESTER* BRASS PLATED 135°F (57°C) Orange 155°F (68°C) 175°F (79°C) Yellow 1, 2, 3, 4, 5, 6 1, 2, 4, 5, 6 STANDARD 200°F (93°C) Green...
  • Page 4 20 to 30 lb-ft (26,8 to 40,2 N·m). Higher levels of torque may • a pipe wrench on the Inlet Band or TYCO Series DS-1 5.6K Pendent, distort the sprinkler Inlet with conse- the Casing, see Figure 1...
  • Page 5 FIGURE 6 Maintenance UPRIGHT (TY3155) PENDENT (TY3255) WITHOUT ESCUTCHEON WITHOUT ESCUTCHEON TYCO Series DS-1 5.6K Pendent, Upright, and Horizontal Sidewall, Standard Response, Standard Cover- age Dry-type Sprinklers must be main- tained and serviced in accordance with this section. Before closing a fire protection system...
  • Page 6 TFP500 Page 6 of 8 and notify all personnel who may be ORDER LENGTHS: affected by this action. 2-3/4" to 48" (69,9 to 1219,2 mm) IN 1/4" (6,4 mm) INCREMENTS Absence of the outer piece of an 2-3/8" ± 1/8" escutcheon, which is used to cover a (60,3 ±...
  • Page 7 TFP500 Page 7 of 8 Temperatures for Heated Area OUTLET Ambient TO WET SIDE PLUGGED Temperature 40°F 50°F 60°F SYSTEM OUTLET Exposed to (4°C) (10°C) (16°C) PLUGGED SPRINKLER Discharge Minimum Exposed FITTING End of HEATED TO DRY Barrel Length Sprinkler (SEE DESIGN AREA SYSTEM...
  • Page 8 Specify: (specify type), (specify) finish, For warranty terms and conditions, visit • Inlet Connections: P/N (specify): www.tyco-fire.com. 1 in. NPT Recessed (Style 10) (Standard) Brass Plated ....56-701-2-010...
