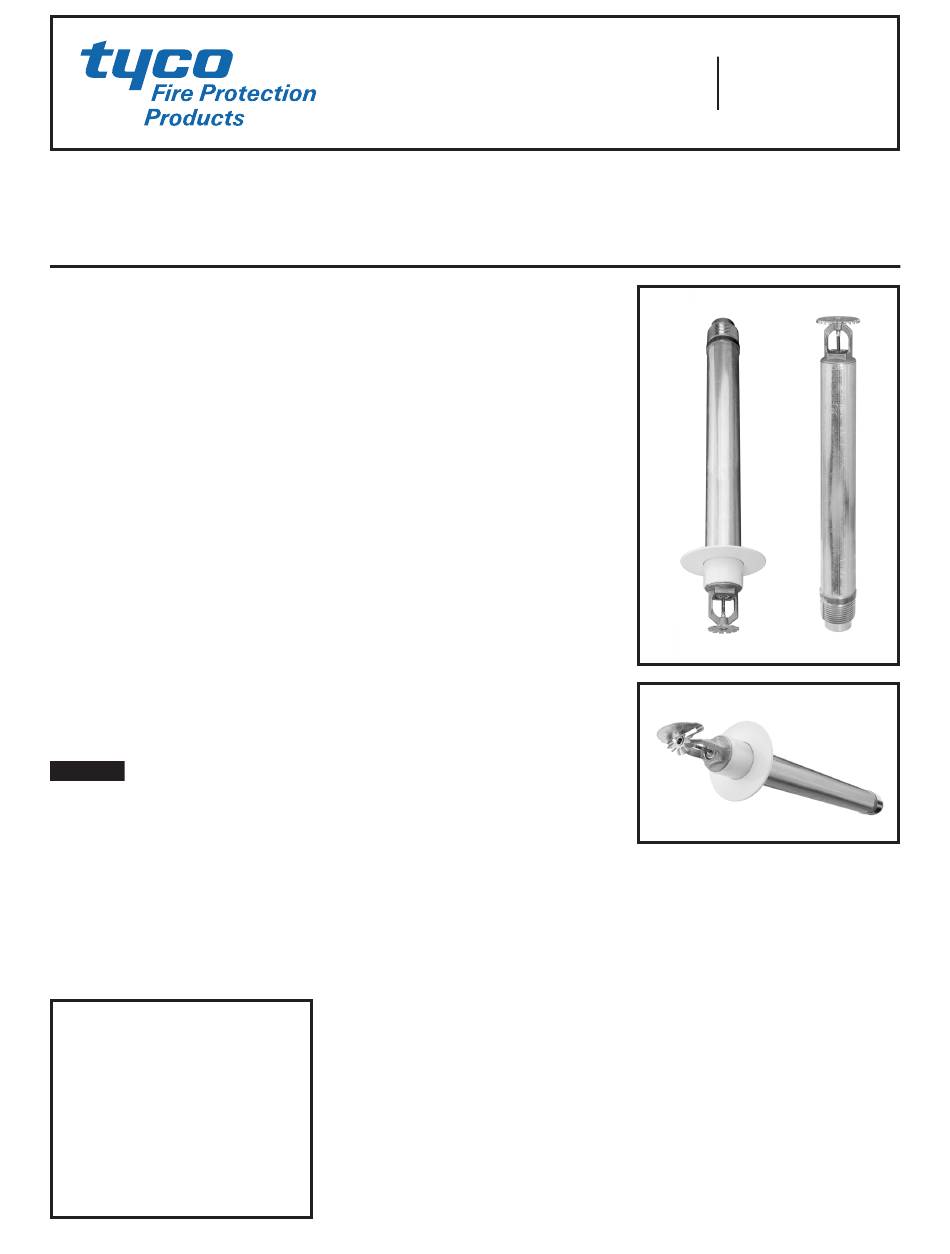

Tyco DS-1 Series Quick Start Manual

Series DS-1 Dry-Type Sprinklers
5.6K Pendent, Upright, and Horizontal Sidewall
Quick Response, Standard Coverage
General
Description
TYCO Series DS-1 Dry-Type Sprinklers,
5.6K Pendent, Upright, and Horizontal
Sidewall, Quick Response (3 mm bulb)
and Standard Coverage are decora-
tive glass bulb automatic sprinklers
de signed for commercial use. Dry-type
sprinklers are typically used where:
• pendent sprinklers are re quired on dry
pipe systems that are exposed to freez-
ing temperatures (e.g., sprinkler drops
from un heated portions of buildings)
• sprinklers and/or a portion of the con-
necting piping are exposed to freezing
temperatures; for example, sprinkler
drops from wet sys tems into freezers,
sprinkler sprigs from wet systems into
unheated attics, or horizontal piping
extensions through a wall to protect an
unheated areas such as loading docks,
overhangs, and building exteriors
• sprinklers are used on sys tems that
are seasonally drained to avoid freez-
ing (e.g., vacation areas)
NOTICE
The Series DS­1 Dry­Type Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica­
ble standards of the National Fire
Protection Association (NFPA), in ad­
dition to the standards of any authori­
ties having jurisdiction. Failure to do so
may impair the performance of these
de vices.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and in-
stallation of sprinkler systems and
components. Improper handling and
installation can permanently dam-
age a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 10
The owner is responsible for maintain­
ing their fire protection system and
de vices in proper operating condi­
tion. Contact the installing contrac­
tor or product manufacturer with any
questions.
The Series DS­1 Dry­Type Sprinklers
must only be installed in fittings that
meet the requirements of the Design
Criteria section.
Sprinkler
Identification
Numbers (SINs)
3/4 Inch NPT:
TY3935 – Pendent
TY3735 – Horizontal Sidewall
1 Inch NPT:
TY3235 – Pendent
TY3135 – Upright
TY3335 – Horizontal Sidewall
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
NYC Approved under MEA 352-01-E
Previous New York City Approval
and MEA certification numbers ap-
ply to product as shown in this data
sheet. In accordance with Section
BC 3502 of the Construction Code,
current NYC Approvals for use in the
City of New York apply to all products
that contain UL or FM Approvals and
Listings; therefore, not all products
currently Approved for use in the City
of New York will carry an actual MEA
Certification number.
Refer to Tables A and B.
SEPTEMBER 2014
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
3/4 Inch NPT
1 Inch NPT or ISO 7-R 1
Discharge Coefficient
1/2
K=5.6 gpm/psi
1/2
(80,6 lpm/bar )
Temperature Ratings
Refer to Tables A and B.
Finishes
Sprinkler: Natural Brass, Chrome
Plated, or Signal White
Escutcheon: Signal White, Chrome
Plated, or Brass Plated
TFP510
