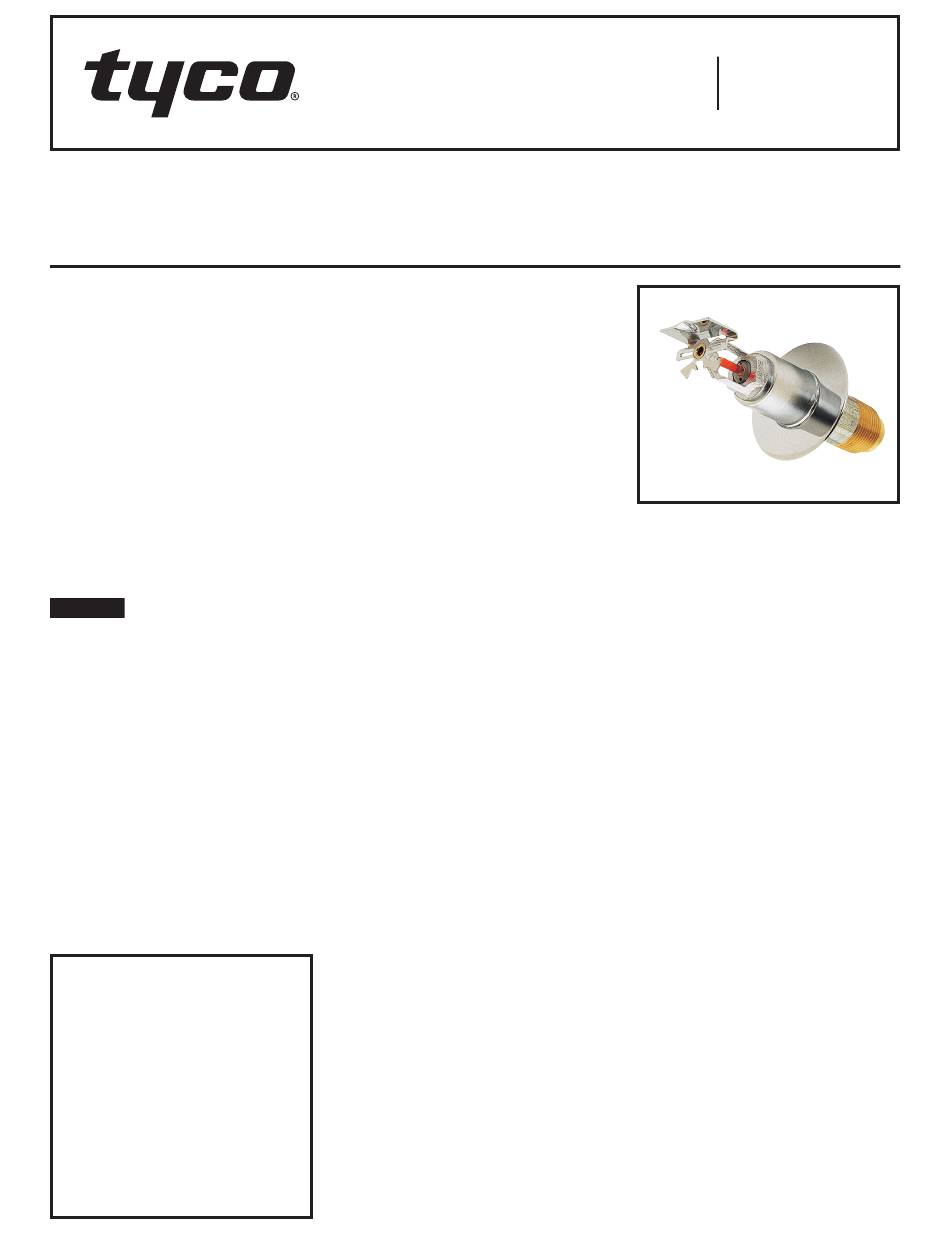

Series DS-1 Dry-Type Sprinklers
5.6K Horizontal Sidewall
Standard and Quick Response, Extended Coverage
General
Description
TYCO Series DS-1 Dry-Type Sprinklers,
5.6 K-factor Horizontal Sidewall, Stan-
dard (5 mm Bulb) and Quick Response
(3 mm Bulb) and Extended Cover-
age, are decorative glass bulb auto-
matic sprinklers typically used where
the sprinklers and/or a portion of the
connecting piping may be exposed to
freezing temperatures; for example,
horizontal piping extensions through a
wall to protect an unheated area of a
building. Series DS-1 Dry-Type Sprin-
klers are designed for extended cover-
age use in light hazard occupancies.
NOTICE
Series DS-1 Dry-Type Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
Contact the installing contractor or
product manufacturer with any ques-
tions. Series DS-1 Dry-Type Sprinklers
must only be installed in fittings that
meet the requirements of the Design
Criteria section.
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
Sprinkler
Identification
Numbers (SINs)
TY3338 – 3 mm Bulb Type
TY3358 – 5 mm Bulb Type
Technical
Data
Approvals
UL and C-UL Listed
NYC Approved under MEA 352-01-E
Refer to Table A.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
1 inch NPT or
ISO 7-R 1
Discharge Coefficient
K=5.6 gpm/psi
1/2
(80,6 lpm/bar )
1/2
Temperature Ratings
Refer to Table A.
Finishes
Sprinkler: Natural Brass,
Plated, or Signal White
Escutcheon: Signal White, Chrome Plated,
or Brass Plated
Physical Characteristics
Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Yoke . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel
Casing . . . . . . . . . . . . . Galvanized Carbon Steel
Insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Bulb Seat . . . . . . . . . . . . . . . . . . . Stainless Steel
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Guide Tube . . . . . . . . . . . . . . . . . Stainless Steel
Water Tube . . . . . . . . . . . . . . . . . Stainless Steel
Spring . . . . . . . Stainless Steel Gasketed Spring
Plate Seal . . . . . . . . Beryllium Nickel w/TEFLON
Escutcheon . . . . . . . . . . . . . . . . . . .Carbon Steel
AUGUST 2018
Worldwide
www.tyco-fire.com
Contacts
Operation
When TYCO Series DS-1 Dry-Type
Sprinklers are in service, water is pre-
vented from entering the assembly by
the Plug and Gasketed Spring Plate
Seal (Ref. Figure 1) in the Inlet of the
sprinkler.
The glass bulb contains a fluid that
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter
the glass bulb, and the Bulb Seat is
released.
The compressed Spring is then able
to expand and push the Water Tube as
well as the Guide Tube outward. This
Chrome
action simultaneously pulls inward on
the Yoke, withdrawing the Plug and
Gasketed Spring Plate Seal from the
Inlet allowing the sprinkler to activate
and flow water.
