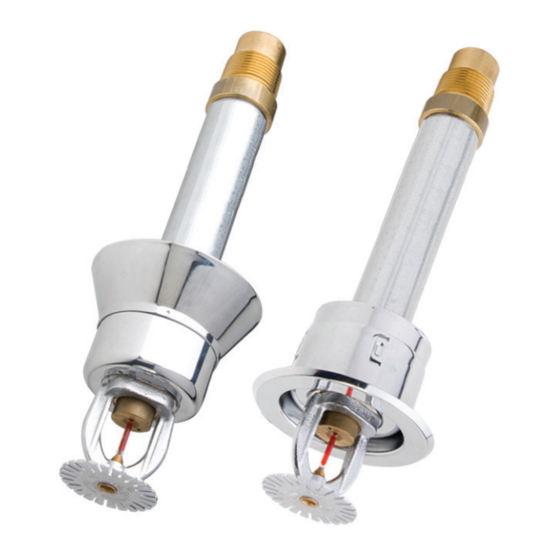

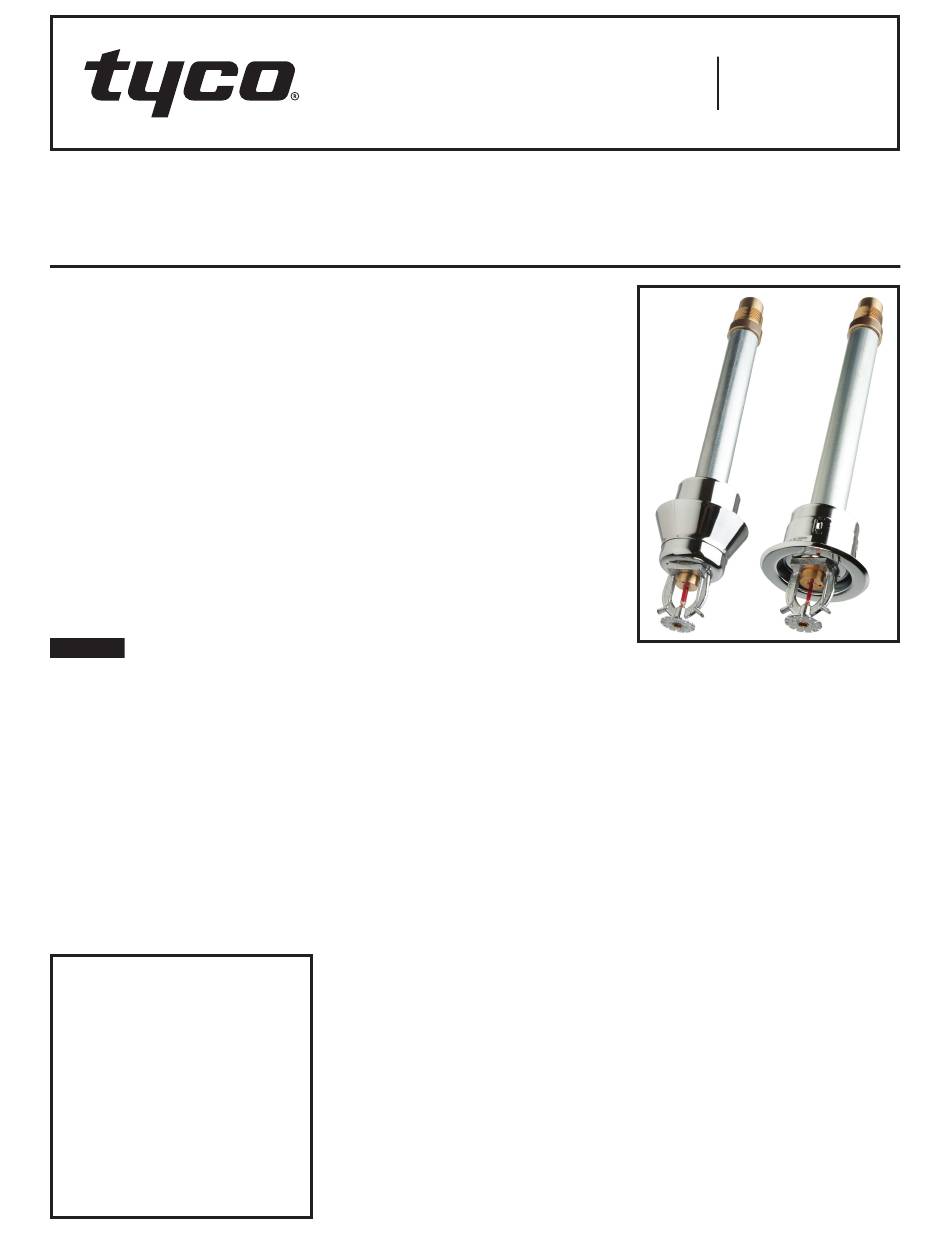

Series DS-2 Dry-Type Sprinklers
11.2K Pendent
Standard and Quick Response, Standard Coverage
General
Description
TYCO Series DS-2 Dry-Type Sprin-
klers, 11.2K Pendent, Standard (5 mm
bulb) and Quick Response (3 mm bulb),
and Standard Coverage are decorative
glass bulb automatic sprinklers typi-
cally used where:
• pendent sprinklers are required on
dry pipe systems that are exposed
to freezing temperatures (e.g., sprin-
kler drops from unheated portions of
buildings)
• sprinklers and/or a portion of the
connecting piping may be exposed
to freezing temperatures (e.g., sprin-
kler drops from wet systems into
freezers)
NOTICE
Series DS-2 Dry-Type Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 8
Series DS-2 Dry-Type Sprinklers must
only be installed in fittings that meet
the requirements of the Design Crite-
ria section.
Sprinkler
Identification
Numbers (SINs)
TY5255 – Standard Response
TY5235 – Quick Response
Technical
Data
Approvals
UL and C-UL Listed
NYC Approved under MEA 173-02-E
See Table A.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
1 in. NPT
ISO 7-R 1
Discharge Coefficient
See Table C.
Temperature Ratings
See Table A.
Finishes
Sprinkler: See Table D.
Escutcheon: See Table D.
Physical Characteristics
Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Yoke . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel
Casing . . . . . . . . . . . . . Galvanized Carbon Steel
Insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Bulb Seat . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw. . . . . . . . . . . . . . . . . Bronze
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Guide Tube . . . . . . . . . . . . . . . . . Stainless Steel
Water Tube . . . . . . . . . . . . . . . . . Stainless Steel
Spring . . . . . . . Stainless Steel Gasketed Spring
Plate Seal . . . . . . . . Beryllium Nickel w/TEFLON
Pin . . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel
Button Spring . . . . . . . . . . . . . . . Stainless Steel
Escutcheon . . . . . . . . . . . . . . . . . . .Carbon Steel
NOVEMBER 2019
Worldwide
www.tyco-fire.com
Contacts
Operation
When TYCO Series DS-2 Dry-Type
Sprinklers, 11.2K Pendent, Standard (
5 mm bulb) and Quick Response (3 mm
bulb), and Standard Coverage are in
service, water is prevented from enter-
ing the assembly by the Plug with Gas-
keted Spring Plate Seal (see Figure 1)
in the Inlet of the sprinkler.
The glass bulb contains a fluid that
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter
the glass bulb, and the Bulb Seat is
released.
The compressed Spring is then able
to expand and push the Water Tube as
well as the Guide Tube outward. This
action simultaneously pulls inward on
the Yoke, withdrawing the Plug with
Gasketed Spring Plate Seal from the
Inlet, allowing the sprinkler to activate
and flow water.
TFP530

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco DS-2 Series

  • Page 1 Description the requirements of the Design Crite- ria section. Sprinkler TYCO Series DS-2 Dry-Type Sprin- klers, 11.2K Pendent, Standard (5 mm Identification bulb) and Quick Response (3 mm bulb), and Standard Coverage are decorative...
  • Page 2 For wet pipe system installations of 1 CASING in. NPT Series DS-2 Dry-Type Sprin- klers connected to CPVC piping, use GUIDE INSERT only the following TYCO CPVC fittings: TUBE • 1 in. x 1 in. NPT Female Adapter (P/N 80145) BULB VENT HOLE SEAT •...
  • Page 3 TFP530 Page 3 of 8 Clearance Space In accordance with Section 8.4.9.2 of Temperatures for Heated Area the 2010 edition of NFPA 13, when con- 40°F 50°F 60°F necting an area subject to freezing and Ambient Temperature (4°C) (10°C) (16°C) Exposed to an area containing a wet pipe sprinkler Discharge End of Sprinkler...
  • Page 4 TFP530 Page 4 of 8 K-factor K-factor, Length, GPM/psi ½ Inches (mm) (LPM/bar ½ SPRINKLER FITTING 2-1/2 to 6-1/4 11.2 (REFER TO DESIGN FACE OF (63 mm to 159 mm) (161,3) CRITERIA SECTION) SPRINKLER 6-1/2 to 10-1/2 11.1 FITTING (165 mm to 267 mm) (159,8) 3-5/8"...
  • Page 5 TFP530 Page 5 of 8 SPRINKLER FITTING SPRINKLER (REFER TO DESIGN WRENCHING FACE OF AREA CRITERIA SECTION) SPRINKLER ORDER LENGTHS: 3-5/8" DIA. FITTING 1" to 45-1/4" WRENCH (92,1 mm) (25,4 to 1149,4 mm) RECESS IN 1/4" (6,4 mm) 2-3/4" DIA. INCREMENTS FACE OF (69,9 mm)
  • Page 6: Installation

    Figure 7, do not grasp the sprinkler mounting surface (ceiling or wall). Then by the Deflector. Failure to follow this TYCO Series DS-2 Dry-Type Sprinklers, rotate the inner piece approximately 1/4 instruction may impair performance of 11.2K Pendent, Standard (5 mm bulb) turn with respect to the outer piece, the device.
  • Page 7: Care And Maintenance

    Maintenance and maintained by a qualified Inspec- tion Service in accordance with local requirements and/or national codes. TYCO Series DS-2 Dry-Type Sprin- klers, 11.2K Pendent, Standard (5 mm Limited bulb) and Quick Response (3 mm bulb), and Standard Coverage must be main-...
  • Page 8 TFP530 Page 8 of 8 61 – XXX – X – XXX ORDER LENGTH SPRINKLER ESCUTCHEON 5.50 in. FINISH FINISH Standard Response Pendent TY5255 CHROME SIGNAL WHITE 8.25 in. with Flush Escutcheon (Figure 2) PLATED (RAL9003) NATURAL SIGNAL WHITE Standard Response Pendent TY5255 18.00 in.
