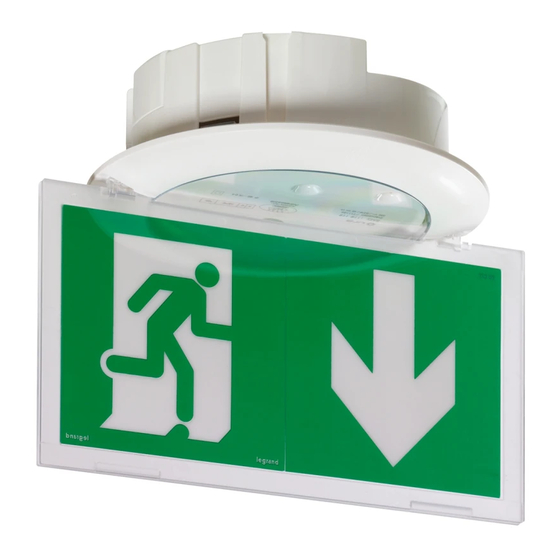

Kickspot Self-testing/AutoDiag
self-contained emergency lighting unit
0 625 14/24/74
1. DESCRIPTION
IP 40 - IK 04 self-contained emergency evacuation and background
lighting units (BAES) and reinforced emergency lights (DBR)
Class II: 0
SATI/AutoDiag
Evacuation
0 625 24
BAES
BAES
0 625 14
+ BAEH
Evacuation
0 625 54
BAES + DBR
BAEH
0 625 74
Background
0 625 64
BAES
1.1 Delivery
Technical data sheet: S000082102EN-1
0 625 54
Cons.
Standby
Batteries
(W)
power
2 KRMT 15/51
0.6 W
45 lm - 1 hr
Ni-Cd 0.8 Ah 2.4 V
2*2 KRMT 15/51
45 lm - 1 hr
0.9 W
Ni-Cd 0.8 Ah 2.4 V
8 lm - 5 hrs
2 KRMT 23/43
0.9 W
45 lm - 1 hr
Ni-Cd 1.5 Ah 2.4 V
2 KRMT 15/51
0.6 W
8 lm - 5 hrs
Ni-Cd 0.8 Ah 2.4 V
2*2 HRMT 23/43
0.7 W
320 lm - 1 hr
Ni-Mh 2.2 Ah 2.4 V
Updated: 08/10/2013
CONTENTS
1.
2.
3.
4.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5.
Compliance and approvals . . . . . . . . .
6.
0 625 64
Sign labels supplied with
the product.
Lighting unit
Cat. Nos. 0 625 14/24/74
Lighting unit + reinforced
emergency light
Cat. No. 0 625 54
Instructions included inside the box
1.2 Dimensions
151
187
13
1.3 Technical characteristics
• Product for ceiling mounting.
• Self-contained emergency lighting unit with LEDs used for evacuation
in public buildings and work premises (Cat. Nos. 0 625 14/24/54/74) or
for background lighting (Cat. No. 0 625 64).
• Conforming to standards:
- 0 625 24 conforming to NF C 71-800
- 0 625 64 conforming to NF C 71-800, NF C 71-801 and UTE C 71-806
- 0 625 74 conforming to NF C 71-805
- 0 625 14 conforming to NF C 71-800, NF C 71-805 and UTE C 71-803
- 0 625 54 conforming to NF C 71-800 and PE 110-633
All these catalogue numbers also conform to the following standards:
EN 60 598-1, EN 60 598-2-22, NF C 71-820 and NF 413
• Awarded the "NF AEAS performance SATI" and "NF environnement"
quality marks.
• Class II: 0
Created: 08/10/2013
Cat. No(s): 0 625 14/24/54/64/74
Page
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . . . . . . . . . . . .9
240,2
11
1/11
Advertisement
Related Manuals for LEGRAND 0 625 24
Summary of Contents for LEGRAND 0 625 24
-
Page 1: Table Of Contents
- 0 625 64 conforming to NF C 71-800, NF C 71-801 and UTE C 71-806 - 0 625 74 conforming to NF C 71-805 - 0 625 14 conforming to NF C 71-800, NF C 71-805 and UTE C 71-803 - 0 625 54 conforming to NF C 71-800 and PE 110-633... -
Page 2: Description
1.3 Technical characteristics (continued) evacuation situations encountered in buildings. • Remote control for setting to rest state during intentional mains power With Cat. Nos. 0 625 14/24/74: breaks. • Remote control input terminals protected against connection errors. • 230 V+/- 10 % - 50/60 Hz power supply. - Page 3 REMOTE CONTROL - Connection terminals: no direction of connection with Legrand remote controls Terminal capacity: 2 x 2.5 mm Power supply Swivel the unit (only for evacuation lighting units Cat. Nos. 0 625 14/24/54/74) 50 mm Remote control Insert the tabs in the unit The label makes it...
-
Page 4: Connection
The polarity of the remote control may not be followed on this lighting unit if a Legrand remote control Cat. No. 0 039 00 or 0 039 01 is used. If another remote control is used, the polarity must be followed when wiring, and the switch-on or switch-off command must be maintained Fix the assembly on the unit. - Page 5 Kickspot Self-testing/AutoDiag Cat. No(s): 0 625 14/24/54/64/74 self-contained emergency lighting unit 3. CONNECTION (CONTINUED) 3.2 Remote control for setting to rest state 3.3 Connection for an installation in self-testing mode Operation with Evacuation and/or Background lighting units in buildings 3.3.1 Operation with [emergency lighting units + home lighting units],...
- Page 6 Kickspot Self-testing/AutoDiag Cat. No(s): 0 625 14/24/54/64/74 self-contained emergency lighting unit 3. CONNECTION (CONTINUED) 3.3 Switching off lighting and setting units to rest state remotely 3.3.2 Setting an installation comprising several operating zones to rest with keyswitch (Mosaic Cat. No. 0 766 30 not supplied) or by...
- Page 7 Kickspot Self-testing/AutoDiag Cat. No(s): 0 625 14/24/54/64/74 self-contained emergency lighting unit 3. CONNECTION (CONTINUED) 3.4 Setting units to rest state automatically after the lighting is 3.5 Connecting an AutoDiag™ installation switched off intentionally With connection of FSS (required for self-contained emergency lighting + home lighting units and reinforced emergency lights).
-
Page 8: Use
4.1 Switch-on/Standby state n 4.8 Operation of self-contained emergency lighting + home lighting unit Cat. No. 0 625 14 with a remote control module Cat. No. The white emergency LED(s) come on at low intensity and the green unit 0 039 00 connected to a fire alarm control panel status LED comes on. -
Page 9: Maintenance
Kickspot Self-testing/AutoDiag Cat. No(s): 0 625 14/24/54/64/74 self-contained emergency lighting unit 4. USE (CONTINUED) 5. MAINTENANCE n 4.9 Operation of self-contained emergency lighting + reinforced n 5.1 Routine maintenance emergency light Cat. No. 0 625 54 with a remote control module Cat. - Page 10 Disconnect the batteries from the unit and remove them. Legrand distribution partners take back used lighting units and batteries. When the batteries have been changed, replace the maintenance label, marking on it the date on which the unit was returned to service.
-
Page 11: Compliance And Approvals
Kickspot Self-testing/AutoDiag Cat. No(s): 0 625 14/24/54/64/74 self-contained emergency lighting unit 6. COMPLIANCE AND APPROVALS NF C 71 800: French standard "Performance of self-contained emergency evacuation lighting units in public buildings and work premises covered by regulations" Compliance with this standard is mandatory for installing self-contained emergency evacuation lighting units in France.
