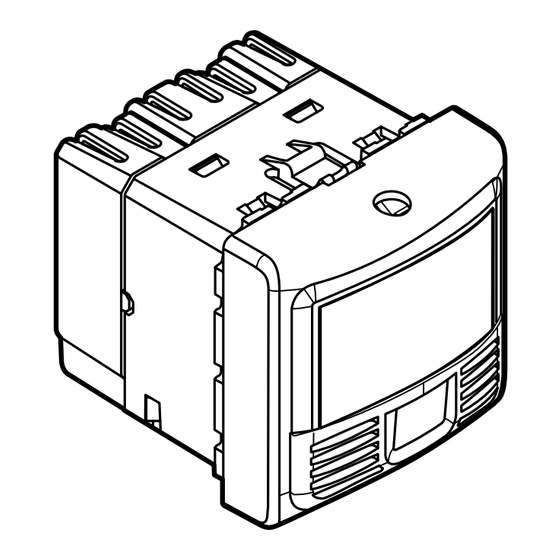

Detector switch - dual tech scs

Advertisement

Quick Links

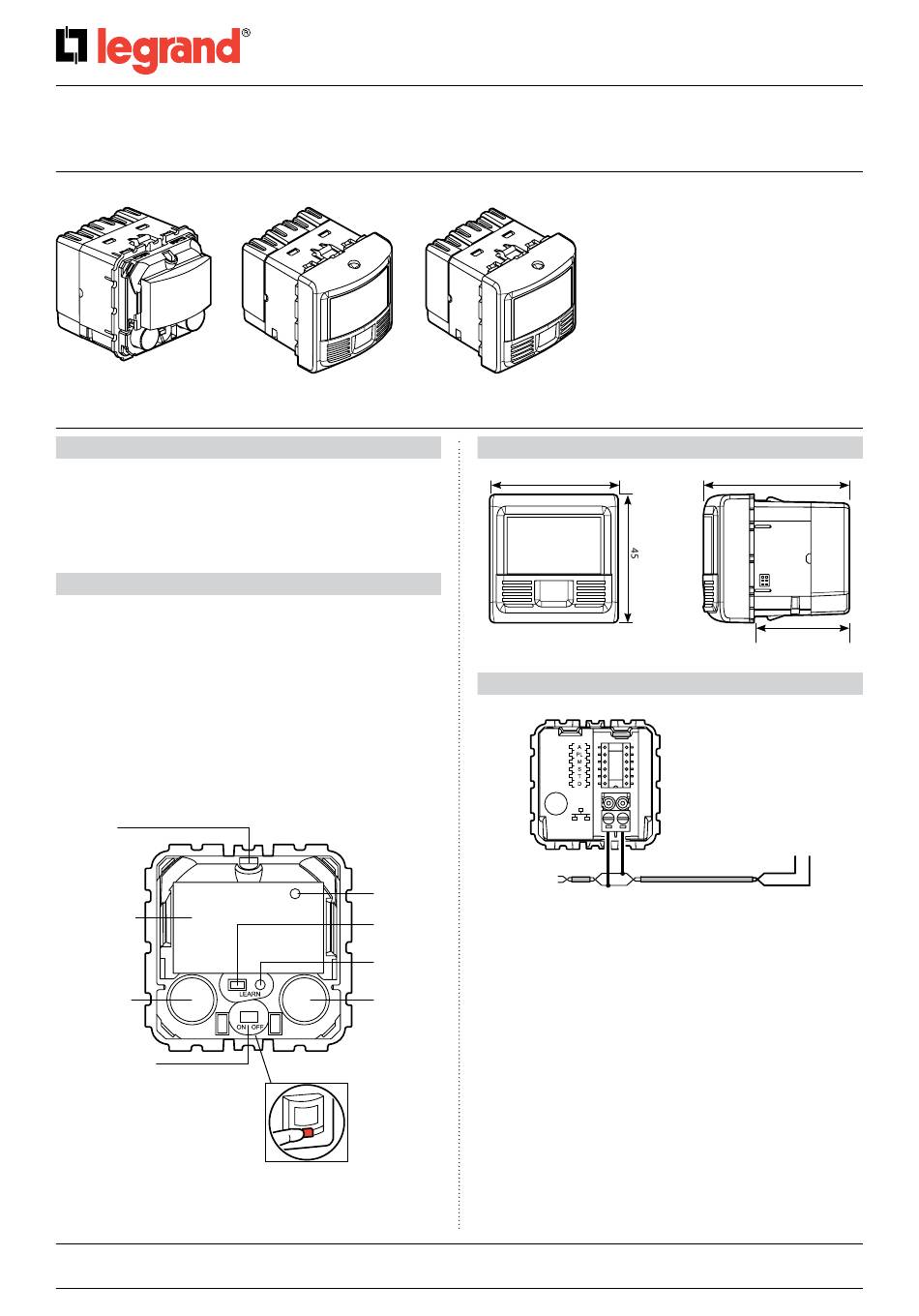

Detector switch - Dual Tech
SCS
0 672 26
1. Use
This device allows a light source to be controlled automatically through
the detection of any presence in the surveillance zone using local
controls.
Presence sensor with 180° detection angle.
Detection type: infrared (PIR) and ultrasound (US)
Assembly type: wall flush mounted
2. Technical feaTUres
Voltage: 27 V=
No-load power consumption: 20 mA
Connection between the sensor and controller: BUS/SCS cable
Wiring: 2 x 0.35 mm
2
Flush-mounting box: 40 mm min.
Weight: 60 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP20
Usage temperature: - 5°C to + 45°C
Storage temperature: - 20°C to + 70°C
Type of terminals: screw
Light level
cell
PIR Detector /
Sensor
US Detector /
Sensor
ON - OFF button
Technical data sheet: S000077070EN-1
0 784 86
LED
detection
LEARN
button
LED
US Detector /
Sensor
Catalogue number(s): 0 672 26 - 0 784 86 - 5 740 48/98
5 740 48
5 740 98
3. Dimensions
45
4. connecTion
Pressing the auxiliary control allows the load to be switched on or off
manually. If the control is not pressed, the sensor will cut off the load
at the end of the time delay or when the light level threshold has been
reached.
Updated:
conTenTs
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics. . . . . . . . . . . . . . . . .1
3. Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
7. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
8. Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . .3
9. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . .4
10. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
11. Standards and approvals . . . . . . . . . . . . . . . .5
12. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .5
51
BUS/SCS
Created: 17/12/2012
Page
35
1/5
