LEGRAND 0 648 75 Manual

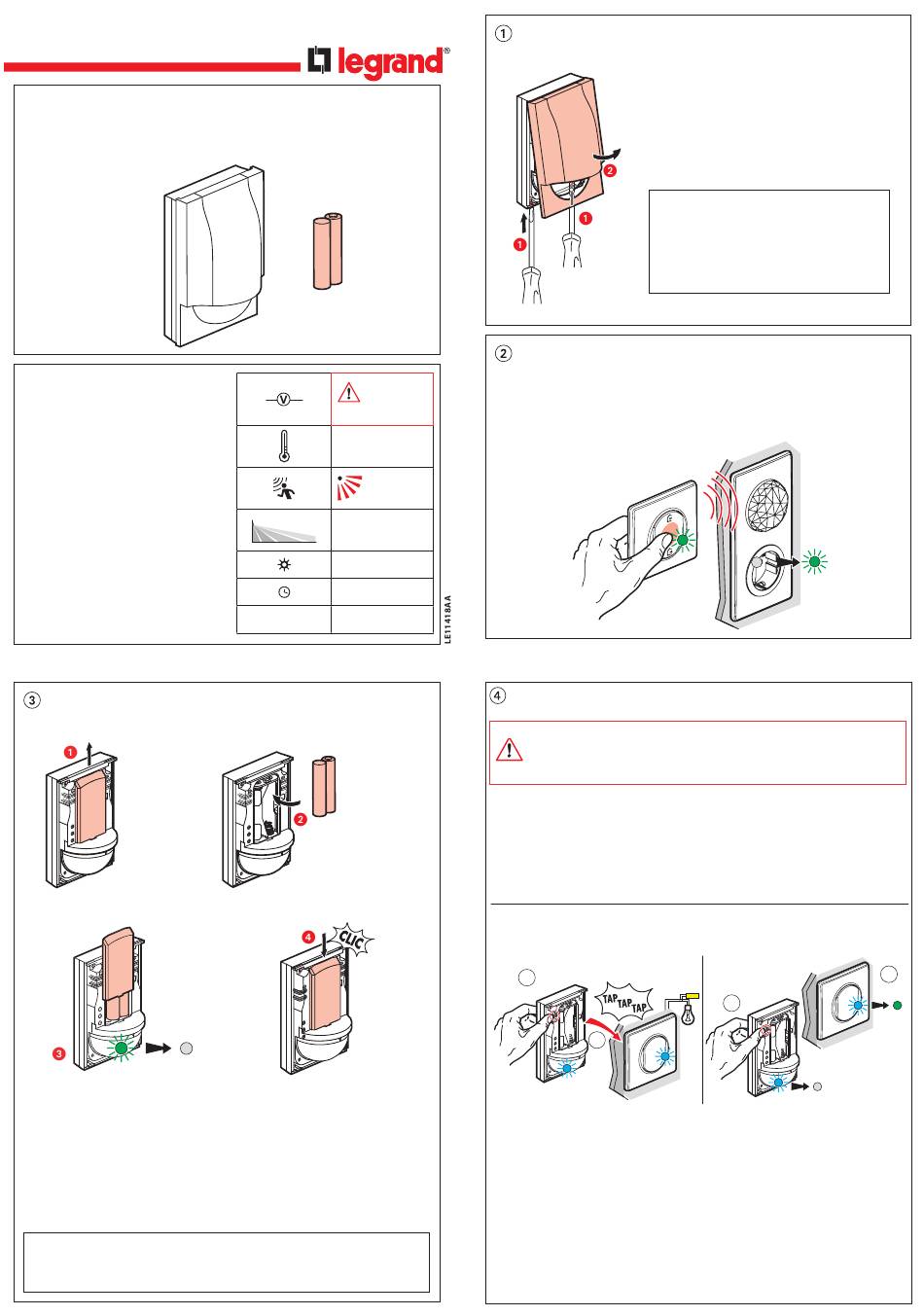

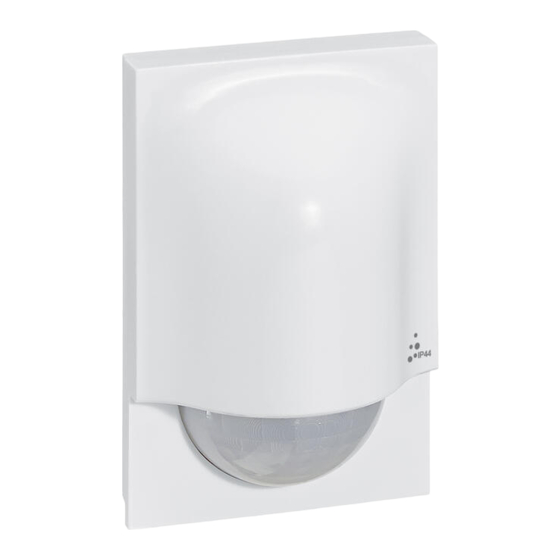

Wireless motion sensor
0 648 75
This product is a connected accessory which requires you to buy and install the «... with
Netatmo» connected starter pack and «... with Netatmo» connected power outlets, swit-
ches (with dimmer option) and/or connected lighting micromodules first.

Pack contents

Wireless motion sensor

Specifications

This product can control up to 20
connected switches (with dimmer option),
micromodules, cable outlets and power
outlets «... with Netatmo»
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 10 mW
Insert the batteries in the wireless motion sensor
The motion sensor light will flash
green and then switch off.
Nota : if the motion sensor flashes green green red, then remove the batteries and
restart on Step 2
x1
2 AA batteries
2 x AA - 1,5 V
+ 5° C / + 45° C
PIR
2 - 8 m
5 à 1000 LUX
de 15 s à 15 min
IP 44
Open the front cover
Do not insert the batteries now
Do not fix the motion sensor to the wall now.
The installation will be finalized on step 6.

Start the wireless motion sensor configuration

Press the middle of the wireless master switch until its light briefly turns green,
and then stop pressing. The indicator lights on the products which you have wired will
turn green.

Pair the wireless motion sensor to a wired connected product

Make sure that the indicator lights on the wired products are green and not
flashing. If not, go back to step 2 and then comme back to step 4.
To pair a wireless motion sensor with a connected light switch, go to step 4.1.1
To pair a wireless motion sensor with a connected micromodule, go to step 4.2.1
To pair a wireless motion sensor with a connected power outlet, go to step 4.3.1

4.1.1 Pair a wireless motion sensor with a connected light switch

A
B
Phase A : Press the ON button on the wireless switch you wish to pair, while tapping it three
times onto the light switch you wish to control.
Phase B : The indicator lights on the two products will flash blue rapidly.
Phase C : The indicator lights on the two products will briefly turn blue and stop flashing
Phase D : the light on the wired product will turn green again and the light on the wireless
motion sensor will switch off. The pairing was successful.
2
C
4
D
