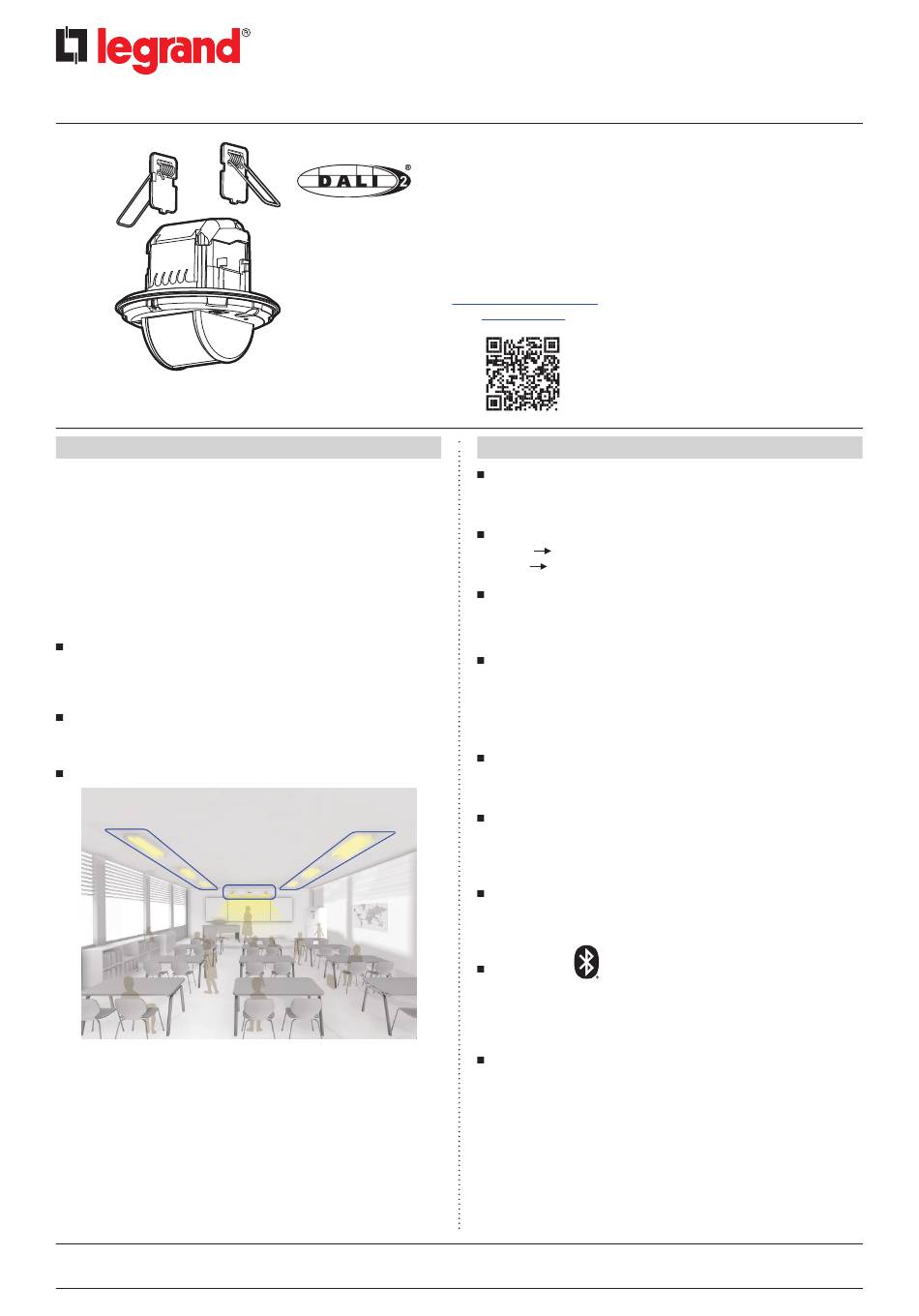

LEGRAND 048556 Manual

3-zone LIGHT UP DALI corridor sensor
1. USE
This product is a DALI presence sensor.
The presence sensor has a 360° detection angle.
It has:
• The option of being paired with a wireless batteryless switch and/or
controlling a connected power outlet.
• 1 auxiliary input for overriding lighting using the wired push-button.
• 1 presence sensor (PIR technology) with lens for detecting occupancy.
• 1 daylight sensor which measures natural and artificial light in order to
control lighting according to the desired lighting setpoint.
• 1 DALI output for supplying the bus and controlling lighting.
1.1 Bluetooth 5.0
For commissioning the product in a connectable system using the
LEGRAND CLOSE UP mobile app.
Product updating.
1.2 Radio (2.4 - 2.483 GHz)
Creation of a standalone system,for managing 1 power outlet and
1 radio-controlled switch.
1.3 Management of 3 lighting zones
3-zone LIGHT UP DALI sensors can control 3 lighting zones:
• "window" group dimming
• "corridor" group dimming
• "panel" group ON/OFF
A wireless batteryless switch only controls the ON/OFF output in the
"Panel" section.
A wired push-button controls the two other zones: ON/OFF and
dimming.
Technical data sheet: S00120130EN-2
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex - France
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrandgroup.com
Updated: 25/10/2024
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . . . . . . . . .1
3. Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
4. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
5. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
7. Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
8. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
9. Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Access to the full LIGHT UP
10. Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
documentation
11. Legrand CLOSE UP app. . . . . . . . . . . . . . . . . .5
12. Settings with CLOSE UP . . . . . . . . . . . . . . . . .6
13. Surface-mounting accessory . . . . . . . . . . . .7
14. Description of buttons and LEDs . . . . . . . .8
15. Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
16. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
17. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .9
2. TECHNICAL CHARACTERISTICS
2.1 Consumption
• Voltage: 110 - 230 V~
• Frequency: 50/60 Hz
2.2 Standby consumption
• OFF load 0.85 W
• ON load 0.85 W
2.3 Installation
• Installation in false ceiling
• Screw terminals: 2 x 1.5 mm2 or 1 x 2.5 mm2
• Drilling diameter: 68 mm
2.4 Mechanical characteristics
• Impact resistance: IK04
• Penetration by solid and liquid matter: IP20
• Weight:
- of product: 239.1 g
- packaged: 283.2 g
2.5 Climate characteristics
• Usage temperature: -10°C to +30°C
• Storage temperature: -20°C to +70°C
2.6 Sensor
• Infrared
• Detection diameter: 24 m x 3 m (for a height of 2.5 m from the floor)
• Minimum installation height: 1.7 m
2.7 Factory settings
• Light level: 150 lux
• Time delay: 10 minutes
• Walkthrough mode
2.8 Bluetooth
• Version 5.0 compatible from 4.2 upwards
• Frequency: 2.4 to 2.483 GHz
• Output power: +8 dBm
• Range: 10 m
2.9 Radio
• Frequency: 2.4 GHz (16 channels)
• Output power: +8 dBm
• Data rate: 250 kbps
• Range: 10 m
• Security: Wireless mesh network, self-adaptive and secure (AES 128),
conforming to standard IEEE 802.15.4 (LR-WPAN)
Cat. No(s): 0 485 56
PAGE
Created: 20/10/2023
1/9
