Summarization of Contents
Wired Connection

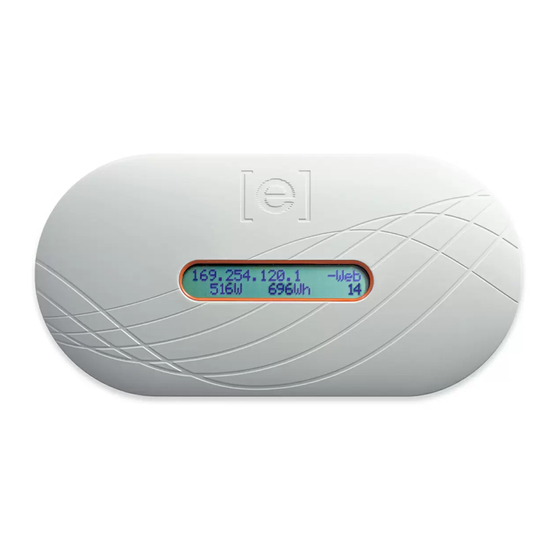

Envoy R Wired Connection
Connect Envoy R via Ethernet to router; check for IP address and '+Web' indicator.
Envoy S Wired Connection
Connect Envoy S via Ethernet; observe top LED turning solid green for successful connection.
Wireless Connection
WPS Method for Envoy R
Use WPS to connect Envoy R. Hold MENU for 'Enable Wi-Fi WPS', push router WPS, wait 5 mins.
WPS Method for Envoy S
Use WPS to connect Envoy S. Hold top button 5s, wait for LED, push router WPS, wait 5 mins.
Method A: Envoy R Manual Configuration
Enable Envoy R Wi-Fi AP Mode
Hold MENU button on Envoy R until 'Enable Wi-Fi AP' appears on screen.
Connect Device to Envoy Wi-Fi Network
Connect smartphone/laptop to Envoy's Wi-Fi network (ENVOY_xxxxxx).
Access Envoy Configuration via IP Address
Open web browser and navigate to IP address '172.30.1.1'.
Envoy Login and Wi-Fi Configuration
Login and Navigate to Wi-Fi Settings
Log in using 'admin' credentials and click 'Wi-Fi Configuration' from the menu.
System Administration Menu Navigation
Locate Wi-Fi Configuration
Access System Administration and find the 'Wi-Fi Configuration' option.
Configure Current Wi-Fi Network
Select and Connect to Network
Select network, enter password, and keep other settings default for connection.
Manual Wi-Fi Network Setup
Enter Network Credentials
Enter ESSID, select WPA Personal security and TKIP algorithm, then password.
Test Connection and Troubleshoot
Test connection, join network; troubleshoot by adjusting security settings if needed.
Method B: Envoy R Manual Configuration
Connect Envoy R via Ethernet Cable
Ensure Wi-Fi adapter is plugged in; connect laptop to Envoy using an Ethernet cable.
Access Envoy R Configuration IP
Open web browser and navigate to IP address '169.254.120.1'.
Refer to Method A Configuration Steps
Follow step 4 from 'Method A for Envoy R – Manual Configuration for Internet Connection'.
Method C: Envoy S Manual Configuration
Initiate Envoy S Wi-Fi Connection
Press top button on Envoy S, connect device to Envoy's Wi-Fi network (ENVOY_xxxxxx).
Access Envoy S Configuration Interface
Open web browser, navigate to '172.30.1.1', and click on 'Wi-Fi'.
Envoy S Login and Wi-Fi Network Management
Login and Locate Wi-Fi Network Options
Login as 'envoy' with serial number password; find Wi-Fi Network section.
Forget Network and View Available Networks
Click 'More Info', 'Forget this Network', then 'View Networks' to select a new network.
Envoy S Wi-Fi Connection Procedure
Enter Password and Connect to Wi-Fi
Enter the Wi-Fi password for the selected network and click 'Connect'.
Manual Network Entry and Security Settings
Manually enter ESSID/password, set WPA Personal/TKIP, or TKIP+CCMP for troubleshooting.
Envoy S Connection Status and Enlighten Sync
Verify Connection and Return to Settings
Check if connection is active, then return to the 'Wi-Fi Configuration' screen.
Open Connection Status to Enlighten
Click 'Open Connection' to push the internet connection status to Enlighten.
Method D: Envoy S Manual Configuration
Connect Envoy S via Ethernet Cable
Connect a laptop to the Envoy S using an Ethernet cable.
Access Envoy S Configuration IP Address
Open web browser and navigate to IP address '169.254.120.1'.
Refer to Method C Configuration Steps
Follow step 4 from 'Method C for Envoy S – Manual Configuration for Internet Connection'.
