E N V O Y Q U I C K I N S T A L L G U I D E

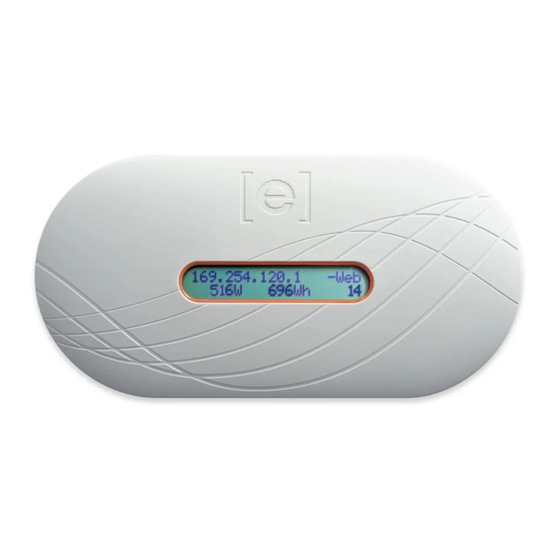

Installing the

Envoy

Communications Gateway

Read and follow all warnings and instructions in this Guide and in the Envoy Communications Gateway Installation and

Operation Manual at: http://www.enphase.com/support. Use this guide as a quick reference during installation and setup

of the Envoy.

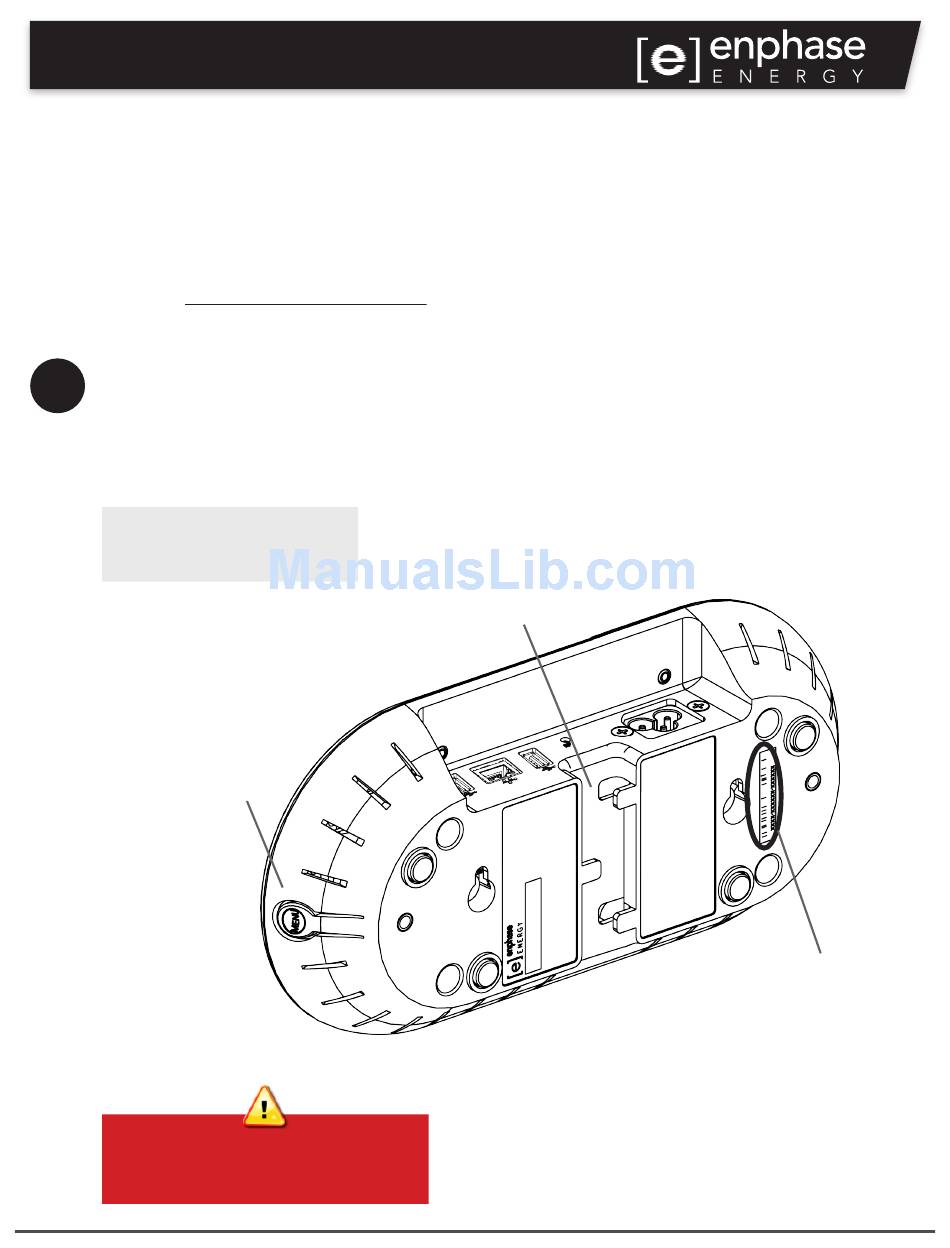

Find the Envoy Serial Number

The serial number label is on the back of the Envoy, near the left mounting bracket.

•

You can use the Enphase Installer Toolkit to scan the serial number. For more information,

refer to http://enphase.com/products/arraygun.

•

Or you can peel the label from the Envoy and affix it to the installation map.

Note: If needed, you can find an

installation map at the back of the

Enphase Microinverter manual.

Warning. Envoy warranty void if cover

removed. No serviceable parts inside.

Refer servicing to qualified personnel.

button

DO NOT route the power

cable or the Ethernet cable

through the cable tray.

serial

number

label

Page 1 Envoy Communications Gateway ® Read and follow all warnings and instructions in this Guide and in the Envoy Communications Gateway Installation and Operation Manual at: http://www.enphase.com/support. Use this guide as a quick reference during installation and setup of the Envoy.
Page 2 Locate an AC outlet that is indoors or in an environmentally protected location and close to the load center. • Place the Envoy so that its AC cord can reach this outlet. • Plug the AC cord into a dedicated wall outlet.
Page 3: Connect To The Internet
After the upgrade completes, remove the Ether- net cable from the Envoy. • Plug the Enphase wireless adapter into the left USB port (looking at Envoy from the front), and wait for 10 Warning: Do not remove power from seconds. the Envoy if the LCD displays: •...
Page 4: Troubleshooting
Log in to Enlighten. • Use Array Builder to create the virtual array using If the number of bars is three or more, but the Envoy has the installation map as your reference. not detected all of the installed microinverters within 30 •...
