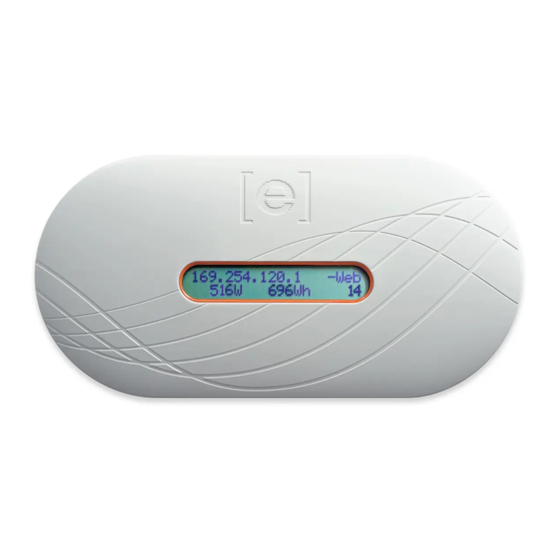

Envoy

Communications Gateway

Quick Install Guide

Before using this guide, read and follow all warnings and instructions in the Envoy Communications Gateway

Installation and Operation Manual at: http://www.enphase.com/support/downloads. You may then use this guide as a

quick reference during installation and setup of the Envoy.

Afﬁx the Serial Number Label to the Map

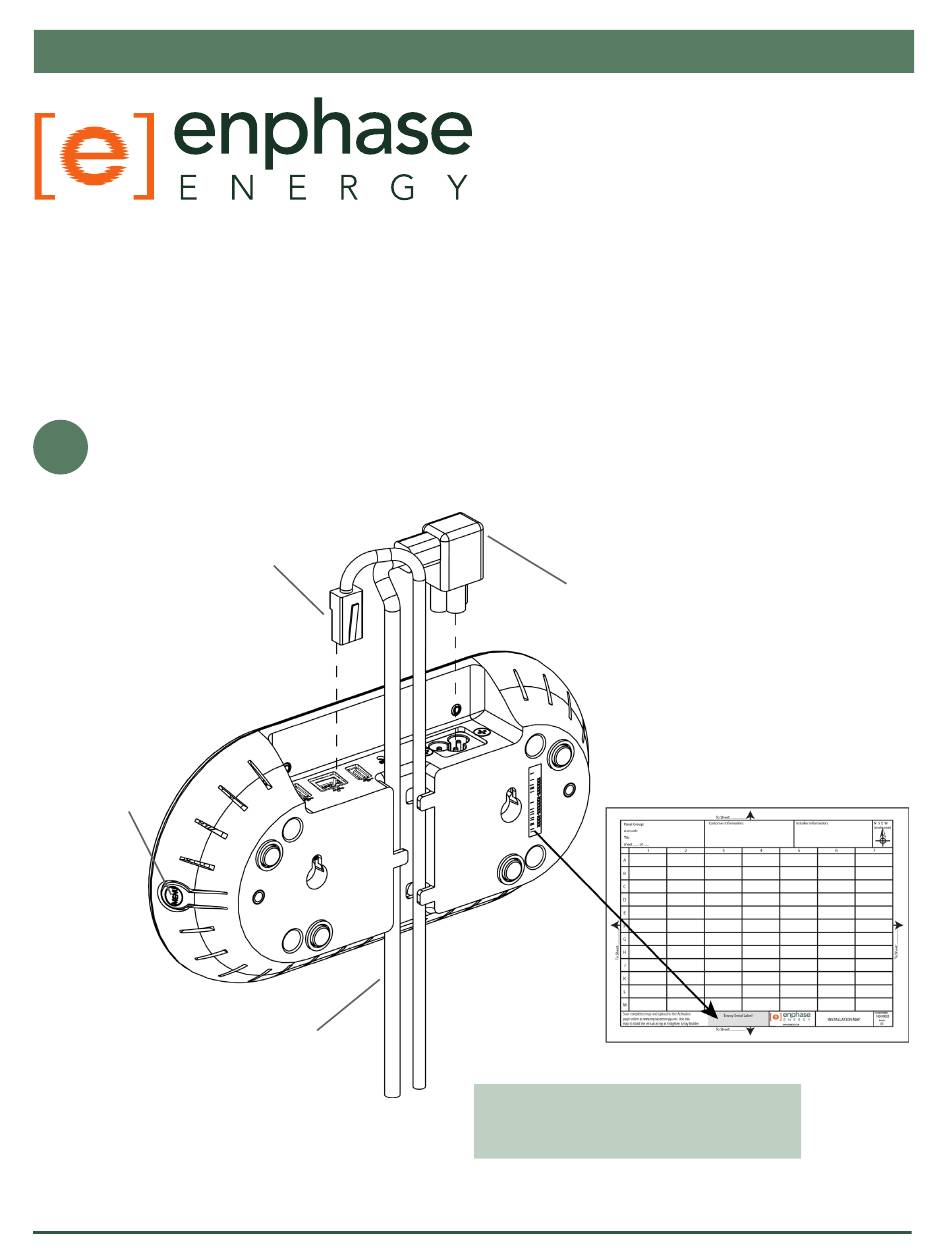

The following diagram of the Envoy and its connections shows the serial number label near the left

mounting bracket. Peel this label from the Envoy and afﬁx it to the installation map.

Ethernet cable

to broadband

router

button

for wall-mounting,

route AC power cord

and Ethernet cable

through cable channel

AC power cord

Note: You can ﬁnd an installation

map at the back of the Enphase

microinverter manual.

Page 1 Afﬁx the Serial Number Label to the Map The following diagram of the Envoy and its connections shows the serial number label near the left mounting bracket. Peel this label from the Envoy and afﬁx it to the installation map.
Page 2 Find a Location for the Envoy into a power strip, surge Locate an electrical outlet close to the load protector , or center. Place the Envoy so that its AC cord uninterruptable power can reach this outlet. supply (UPS). These devices impede power line communications.
Page 3 Envoy broadband router Mount the Envoy to the Wall (optional) You can wall-mount the Envoy or place it on a table top. Power line Use two #8 drywall screws or wall anchors communication (not included) to mount the Envoy to the bridges wall.
Page 4 Envoy menu button and release it when the LCD window displays Get New IP Address. Wait for 15 minutes. If this fails, unplug the Envoy, wait for 20 seconds, and plug it back in. Wait 15 minutes for connection. Device Detection Slow...
