E N V O Y Q U I C K I N S T A L L G U I D E

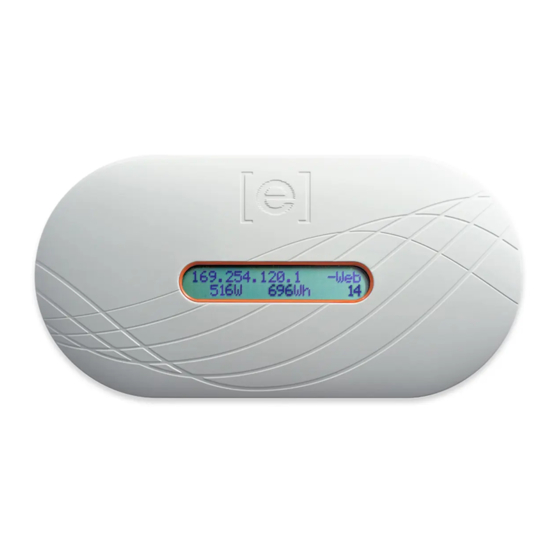

Installing the

Envoy

Communications Gateway

Read and follow all warnings and instructions in this Guide and in the Envoy Installation and Operation Manual at

http://www.enphase.com. Use this guide as a quick reference during installation and setup of the Envoy.

Affix the Serial Number Label to the Map

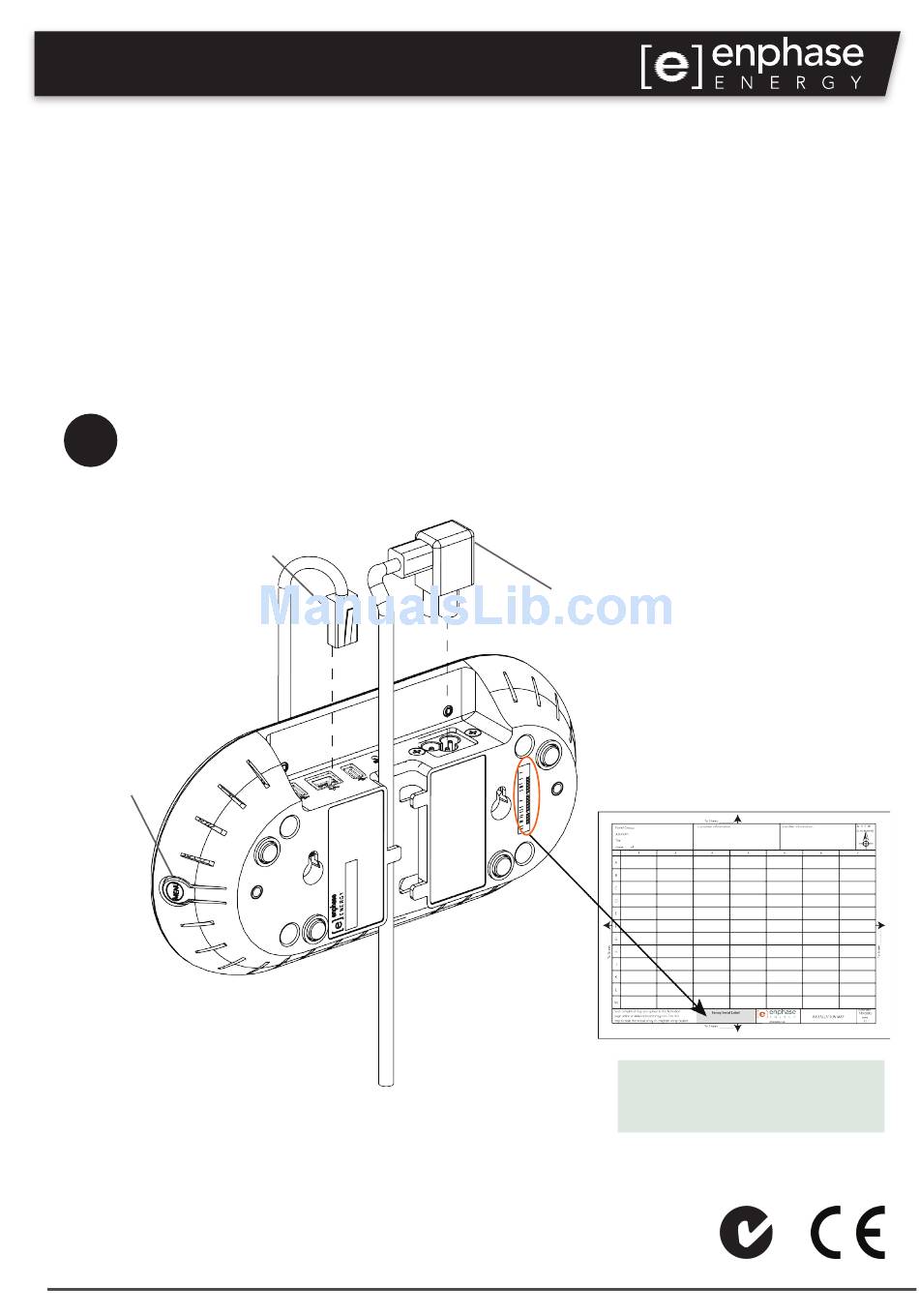

The following diagram of the Envoy and its connections shows the serial number label near the left

mounting bracket. Peel this label from the Envoy and affix it to the installation map.

Ethernet cable to

broadband router

button

AC power cord

Note: You can find an installation

map at the back of the Enphase

microinverter manual.

Need help?

Do you have a question about the envoy and is the answer not in the manual?

Page 1 Envoy Communications Gateway Read and follow all warnings and instructions in this Guide and in the Envoy Installation and Operation Manual at http://www.enphase.com. Use this guide as a quick reference during installation and setup of the Envoy. Affix the Serial Number Label to the Map The following diagram of the Envoy and its connections shows the serial number label near the left mounting bracket.
Page 2 Envoy broadband router AC power Ethernet cable cord Do not plug the Envoy into a power strip, surge protector, or uninterruptable power supply (UPS). These devices impede power line communications. enter the Envoy enter system data serial number...
Page 3 20 minutes, the status is set. At this point the Once all devices have been detected, disable this microinverters begin exporting power. Envoy’s device scan to keep it from interfering with any nearby Enphase systems. • Press and hold the Envoy menu button (on the right side of the Envoy).
Page 4 Envoy to the power outlet closest to the AC mains. Device Detection Stalled If the number of bars is three or more, but the Envoy View System Performance in Enlighten has not detected all of the installed microinverters...
