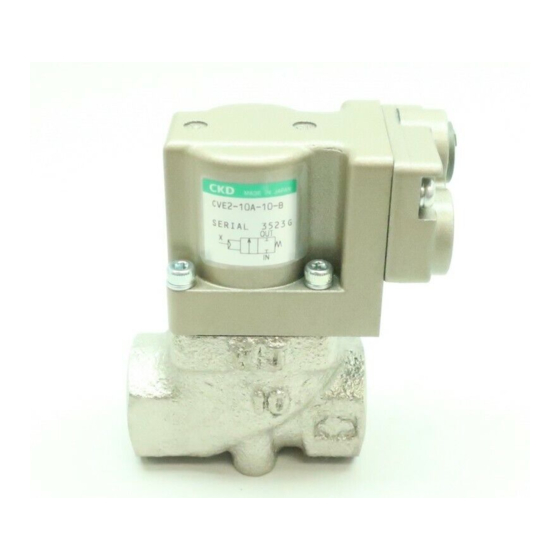

CKD CVSE2 Series Safety

Air operated 2, 3 port valve (coolant control)
Overview
This is a reliable 2, 3 port coolant
valve with cylinder drive method.
This valve for tool machine cutting oil
or coolant control incorporates a
metal seal to prevent the entry of
cutting chips, abrasive grains and
foreign debris, and ensures highly
reliable control.
The air operated type and solenoid
valve mounted type are available.
These can be used in precise
machines.
Features
High corrosion resistant
materials
Cast iron body, and stainless steel
metal seal used in valve seat. NBR
or FKM packing seal can be
selected. Materials optimum for
coolant are used.
Certain operation
Certain operation is enabled with
external pilot air operated cylinder.
Water hammer prevented
(Only 2 port valve)
Resistant to foreign matter
A metal seal is used.
Usable in flammable
environment.
(Air operated type)
CVE2/CVSE2
CVE3/CVSE3
Series variation
Safety precautions
Product introduction
Low pressure (0.5 MPa and 1.0 MPa), 2 port valve
Air operated type
Solenoid valve mounted type
Medium pressure (1.6 MPa and 3.0 MPa), 2 port valve
Air operated type
Solenoid valve mounted type
High pressure (7.0 MPa), 2 port valve
Air operated type
Solenoid valve mounted type
Medium/high pressure (3.5 MPa and 7.0 MPa), 3 port valve
Air operated type
Solenoid valve mounted type
Low pressure (0.3 MPa), 3 port valve
Air operated type
Solenoid valve mounted type
Electronic Catalog file list
Always read the precautions in the Introduction and
page 702 before starting use.
(Coolant valve)
For coolant
C O N T E N T S
CVE2, CVE22-05/10
CVSE2, CVSE22-05/10 708
CVE2, CVE22-16/30
CVSE2, CVSE22-16/30 718
CVE2, CVE22-70
CVSE2, CVSE22-70
CVE3-35/70
CVSE3-35/70
CV3E
CVS3E
HNB/G
USB/G
FAB/G
FGB/G
FVB
FWB/G
FHB
FLB
AB
AG
AP/
AD
APK/
ADK
For
dry air
Explosion
proof
HVB/
700 HVL
SAB/
702
SVB
706
NP/NAP/
NVP
708
CHB/G
MXB/G
Other G.P.
718
systems
PD/FAD/
PJ
CVE/
726
CVSE
726
CPE/
CPD
Medical
732
analysis
732
Custom
order
744
744
746
699
