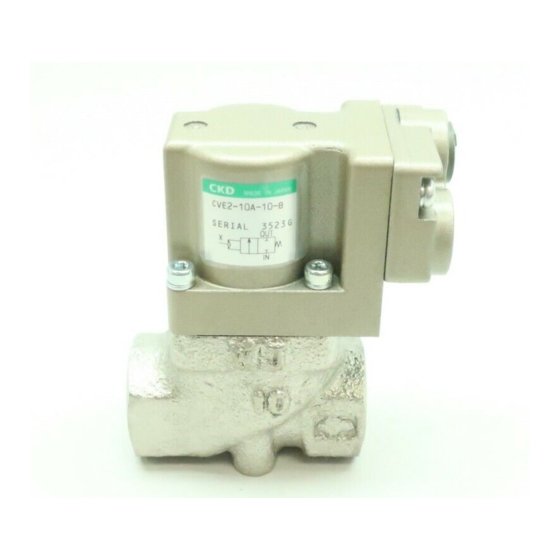

Air operated 2, 3 port valve (coolant control)

Advertisement

Quick Links

Air operated 2, 3 port valve (coolant control)
Overview
This is a reliable 2, 3 port coolant
valve with cylinder drive method.
This valve for tool machine cutting oil
or coolant control incorporates a
metal seal to prevent the entry of
cutting chips, abrasive grains and
foreign debris, and ensures highly
reliable control.
The air operated type and solenoid
valve mounted type are available.
These can be used in precise
machines.
Features
High corrosion resistant
materials
Cast iron body, and stainless steel
metal seal used in valve seat. NBR
or FKM packing seal can be
selected. Materials optimum for
coolant are used.
Certain operation
Certain operation is enabled with
external pilot air operated cylinder.
Water hammer prevented
(Only 2 port valve)
Resistant to foreign matter
A metal seal is used.
Usable in flammable
environment.
(Air operated type)
CVE2/CVSE2
CVE3/CVSE3
Series variation
Safety precautions
Product introduction
Low pressure (0.5 MPa and 1.0 MPa), 2 port valve
Air operated type
Solenoid valve mounted type
Medium pressure (1.6 MPa and 3.0 MPa), 2 port valve
Air operated type
Solenoid valve mounted type
High pressure (7.0 MPa), 2 port valve
Air operated type
Solenoid valve mounted type
Medium/high pressure (3.5 MPa and 7.0 MPa), 3 port valve
Air operated type
Solenoid valve mounted type
Low pressure (0.3 MPa), 3 port valve
Air operated type
Solenoid valve mounted type
Electronic Catalog file list
Always read the precautions in the Introduction and
page 702 before starting use.
(Coolant valve)
For coolant
C O N T E N T S
CVE2, CVE22-05/10
CVSE2, CVSE22-05/10 708
CVE2, CVE22-16/30
CVSE2, CVSE22-16/30 718
CVE2, CVE22-70
CVSE2, CVSE22-70
CVE3-35/70
CVSE3-35/70
CV3E
CVS3E
HNB/G
USB/G
FAB/G
FGB/G
FVB
FWB/G
FHB
FLB
AB
AG
AP/
AD
APK/
ADK
For
dry air
Explosion
proof
HVB/
700
HVL
SAB/
702
SVB
706
NP/NAP/
NVP
708
CHB/G
MXB/G
Other G.P.
718
systems
PD/FAD/
PJ
CVE/
726
CVSE
726
CPE/
CPD
Medical
732
analysis
732
Custom
order
744
744
746
699

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVE2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CKD CVE2 Series

  • Page 1 CVE2/CVSE2 CVE3/CVSE3 (Coolant valve) HNB/G Air operated 2, 3 port valve (coolant control) USB/G FAB/G For coolant FGB/G Overview This is a reliable 2, 3 port coolant FWB/G valve with cylinder drive method. This valve for tool machine cutting oil or coolant control incorporates a metal seal to prevent the entry of cutting chips, abrasive grains and...
  • Page 2 Air operated 2, 3 port valve (coolant control) Series variation (Coolant valve) Working pressure No. of port Model Category range Rc3/8 Rc1/2 Air operated type CVE2-***-05 0 to 0.5 Solenoid valve mounted type CVSE2-***-05 Air operated type CVE2-***-10 0 to 1.0 Solenoid valve mounted type CVSE2-***-10 Air operated type...
  • Page 3 HNB/G USB/G Port size Page FAB/G Rc3/4 Rc1 1/4 32 flange Rc1 1/2 40 flange 50 flange 65 flange 80 flange FGB/G FWB/G APK/ dry air Explosion proof HVB/ SAB/ NP/NAP/ CHB/G MXB/G Other G.P. systems PD/FAD/ CVE/ CVSE CPE/ Medical analysis Custom...
  • Page 4: Safety Precautions

    Safety precautions Always read this section before starting use. Air operated 2, 3 port valve (coolant valve) (CVE/CVSE) Design & Selection (2) Pre-lubrication - This series is pre-lubricated, so no lubricator 1. Safety designing is required. However, once lubrication has been started, it must be continued so that the lubricant is not used up.
  • Page 5: Maintenance And Inspection

    (1) Install a metering valve on the valve IN side, then adjust PD/FAD/ the metering valve to reach the required flow. If these countermeasures fail, contact CKD. CVE/ CVSE CPE/ 2. Assembling & disassembling...
  • Page 6 CVSE2-ACTUATOR–0 – Note 1: Indicate the coil option symbol in field *1. Note 2: Consult with your CKD Sales Representative about the solenoid valve (actuator assembly kit) for CVS3E. Gasket direction (for solenoid valve mounted type) The gasket has an orientation. Check the orientation when reassembling.
  • Page 7 MEMO HNB/G USB/G FAB/G FGB/G FWB/G APK/ dry air Explosion proof HVB/ SAB/ NP/NAP/ CHB/G MXB/G Other G.P. systems PD/FAD/ CVE/ CVSE CPE/ Medical analysis Custom order...
  • Page 8: Flow Rate

    An ideal flow rate shape has been pursued focusing on zero pressure loss. DOWN Pressure losses have been [kPa] approximately halved compared to conventional models. (Max. 59% reduction, CKD comparison) Port size Comparison of Cv flow factor (0.5 MPa) Increased Conventional Port size CVSE2 Series...
  • Page 9: Easy Installation

    45 types available. HNB/G Compatible designs with USB/G conventional products Proposals for improving coolant devices Proposals for improving coolant devices FAB/G product compatible with FGB/G An optimum coolant system is realized by reviewing the valves and system. conventional products in face-to-face dimensions and specifications, enabling 3 conventional 2 port valves...
  • Page 10 Air operated 2 port valve for low pressure (coolant valve) CVSE2/CVSE22-05/10 Series CVE2/CVE22-05/10 Series NC (normally closed) type, NO (normally open) type Port size: Rc3/8 to Rc2, 32 to 80 flange Refer to Ending 17 for more details. Low pressure 0.5 MPa, 1.0 MPa JIS symbol Common specifications for 0.5 MPa CVE2 (air operated type)
  • Page 11 CVE2/CVSE2-05/10 Series HNB/G USB/G FAB/G Common specifications for 1.0 MPa FGB/G Model no. CVE2/CVSE2 CVE22/CVSE22 Actuation NC (normally closed) type NO (normally open) type Working fluid Coolant, other non-corrosive fluids (*1) 500 or less Fluid viscosity FWB/G Working pressure range 0 to 1.0 Withstanding pressure (water) Fluid temperature...
  • Page 12: How To Order

    CVE2/CVSE2-05/10 Series How to order Air operated type CVE2 Solenoid valve mounted type Model no. CVSE2 CVE2 CVSE2 Symbol Descriptions Actuation Actuation Blank NC (normally closed) type Voltage NO (normally open) type Port size Port size Rc3/8 Rc1/2 Model no. Rc3/4 Air operated type CVE2...
  • Page 13 CVE2/CVSE2-05/10 Series Assembly direction CVSE2 (solenoid valve mounted type) *5 Symbol Blank (standard) X *6 Y *6 Z *6 R *6 HNB/G Direction Without rotation Cylinder cover 90˚ rotation Cylinder cover 180˚ rotation Cylinder cover 270˚ rotation Coil reverse rotation USB/G FAB/G Arrangement...
  • Page 14 Nitrile rubber (fluoro rubber) Rod packing seal NBR (FKM) *1: ( ) shows options. *2: This internal structure drawing is for 15A to 50A. For 10A, 65F or 80F, contact CKD. (Page 746) Dimensions CVSE2/CVSE22-10A to 50A-05/10-*2C (Rc screw-in type) (300) 19.5...
  • Page 15 CVSE2-05/10 Series (Page 746) Dimensions CVSE2/CVSE22-32F to 80F-05/10-*2C (flange type) HNB/G Rc1/8 (300) 19.5 15.5 USB/G Non-locking FAB/G manual override FGB/G FWB/G Exhaust port APK/ 4-ø19 dry air Explosion proof HVB/ 8-ø19 * Shown without optional assembly direction. SAB/ Model no. NP/NAP/ CVSE*-32F-05/10-*2C 130.5...
  • Page 16 Rod packing seal NBR (FKM) (fluoro rubber) *1: ( ) shows options. *2: This internal structure drawing is for 15A to 50A. For 10A, 65F or 80F, contact CKD. (Page 746) Dimensions CVE2/CVE22-10A to 50A-05/10-** (Rc screw-in type) 14.6 2-Rc1/8 * The pilot pressurization port is port X for the NC type and port Y for the NO type.
  • Page 17 CVE2-05/10 Series (Page 746) Dimensions CVE2/CVE22-32F to 80F-05/10-** (flange type) HNB/G 14.6 2-Rc1/8 USB/G FAB/G FGB/G FWB/G APK/ 4-ø19 dry air Explosion proof HVB/ 8-ø19 SAB/ Model no. NP/NAP/ CVE*-32F-05/10-* 126.5 CVE*-40F-05/10-* 152.5 240.5 CHB/G CVE*-50F-05/10-* 269.5 MXB/G CVE*-65F-05/10-* 347.5 CVE*-80F-05/10-* 367.5 Other G.P.
  • Page 18 CVE2/CVSE2-05/10 Series (Page 746) Optional dimensions Mounting plate CVE2/CVE22 -10A-05/10-** CVSE2/CVSE22 IN port 2-ø6 * Use the body set screws if fixing without a mounting plate. (Thread size: M4 depth 7) Mounting plate Mounting plate CVE2/CVE22 CVE2/CVE22 -15A/20A/25A-05/10-** B B-R B-Y -15A/20A/25A-05/10-** CVSE2/CVSE22 CVSE2/CVSE22...
  • Page 19 CVE2/CVSE2-05/10 Series Optional dimensions Optional dimensions DIN terminal box (Pg9) T type terminal box (G1/2) DIN terminal box with light (Pg9) T type terminal box with light (G1/2) HNB/G CVSE2/CVSE22-*-05/10-* CVSE2/CVSE22-*-05/10-* USB/G FAB/G 15.5 FGB/G (85.5) 15.5 (54.5) FWB/G G1/2 Applicable cable (OD ø4.5 to ø7) APK/...
  • Page 20 Folder name Filename Filename (GROUP: CAD, USER: STDLIB) cve2 _ 22 _ 10a _ 5 _ 10 CVE2/22-10A-5/10 CKD-CVE2/22-10A-5/10 CVE2 cve2 _ 22 _ 15a _ 5 _ 10 CVE2/22-15A-5/10 CKD-CVE2/22-15A-5/10 cve2 _ 22 _ 20a _ 5 _ 10...
  • Page 21 MICRO CADAM Model no. USB/G Folder name Filename Filename (GROUP: CAD, USER: STDLIB) CV3E cv3e _ 20a _ 3 CV3E-20A-3 CKD-CV3E-20A-3 FAB/G cv3e _ 25a _ 3 CV3E-25A-3 CKD-CV3E-25A-3 cvs3e _ 20a _ 3 CVS3E-20A-3 CKD-CVS3E-20A-3 FGB/G cvs3e _ 25a _ 3...
