CKD FWD Series Quick Start Manual

Compact, lightweight and
Low power consumption
Eco-friendly solenoid valve!!
Specifications
Descriptions
Actuation
Working pressure differential range
Max. working pressure
Withstanding pressure (water)
Fluid temperature
Ambient temperature
Atmosphere
Valve structure
Valve seat leakage cm
Installation attitude
Protection property
Port size
Weight
Rated voltage
Apparent power
Power consumption
Coil heat resistance class
3
Note 1: "Valve seat leakage 0 cm /min" means that no water drip leaks for a minute.
Refer to "Safety Precautions" on the rear side before use.
New Products
Compact Pilot Operated
Solenoid Valve for Water
FWD Series

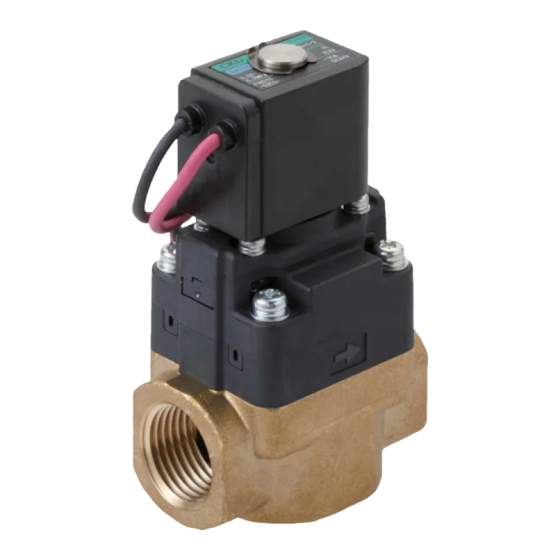

FWD11-8A
Water (other than sewage, agricultural water, liquid manure, and antifreeze)
MPa
MPa
MPa
3
/min
Rc 1/4
mm
2.8
g 340
VA
W
(1/3 of the CKD comparison)
FWD11-10A
NC (normally closed)
0.02 to 0.7
0.7
1.05
5 to 60 (no freezing)
Area without corrosive or explosive gases
Pilot operated poppet structure diaphragm structure
0 (water pressure) (Note 1)
Free
IPX5
Rc 3/8
15 (Note 2)
4.2
320
100 VAC 50/60 Hz, 200 VAC 50/60 Hz, 24 VDC
Rated voltage ± 10%
At holding (50/60 Hz): 5/4, at starting (50/60 Hz): 9/8
AC (50/60 Hz): 2.7/2, DC: 4
B
New Product
FWD11-15A
Rc 1/2
6.0
390
CC-1057A
