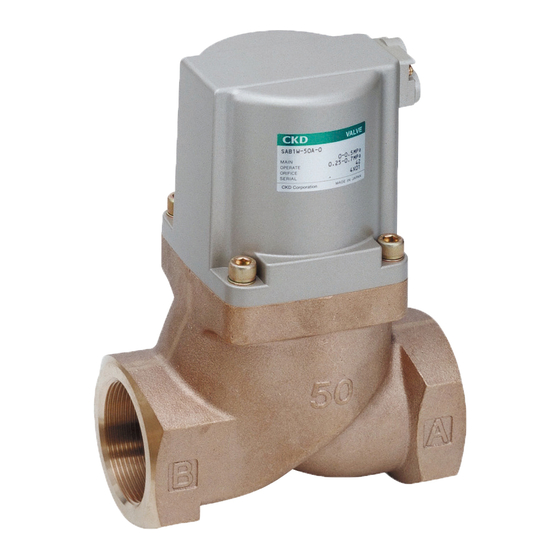

Cylinder Valve
SAB□A Series
SVB□A Series (Solenoid Valve Mounted)
INSTRUCTION MANUAL
SM-50664-A/4
INSTRUCTION MANUAL
SM-358642
• Read this Instruction Manual before using the product.
• Read the safety notes carefully.
• Keep this Instruction Manual in a safe and convenient place for future reference.
(For Air and Gas)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAB A Series and is the answer not in the manual?

Questions and answers

Related Manuals for CKD SAB A Series

Summary of Contents for CKD SAB A Series

  • Page 1 Cylinder Valve (For Air and Gas) SAB□A Series SVB□A Series (Solenoid Valve Mounted) INSTRUCTION MANUAL SM-50664-A/4 INSTRUCTION MANUAL SM-358642 • Read this Instruction Manual before using the product. • Read the safety notes carefully. • Keep this Instruction Manual in a safe and convenient place for future reference.

  • Page 2: Preface

    • Since there are a wide variety of customer applications, it is impossible for CKD to be aware of all of them. Depending on the application or usage, the product may not be able to exercise its full performance or an accident may occur due to fluid, piping, or other conditions.

  • Page 3: Safety Information

    SM-50664-A/4 SAFETY INFORMATION SAFETY INFORMATION When designing and manufacturing any device incorporating the product, the manufacturer has an obligation to ensure that the device is safe. To that end, make sure that the safety of the machine mechanism of the device, the pneumatic or water control circuit, and the electric system that controls such mechanism is ensured.

  • Page 4: Precautions On Product Use

    • For applications where life or properties may be adversely affected and special safety measures are required. (Exception is made if the customer consults with CKD prior to use and understands the specifications of the product. However, even in that case, safety measures must be taken to avoid danger in case of a possible failure.)

  • Page 5: Table Of Contents

    SM-50664-A/4 CONTENTS PREFACE ........................... i SAFETY INFORMATION ....................ii Precautions on Product Use ..................iii Precautions on Product Disposal .................. iii CONTENTS ........................iv PRODUCT OVERVIEW ..................... 1 Model Number Indication ..................1 1.1.1 SAB Series ..................... 1 1.1.2 SVB Series ..................... 2 Internal Structure ....................

  • Page 6: Product Overview

    SM-50664-A/4 1. PRODUCT OVERVIEW 1. PRODUCT OVERVIEW 1.1 Model Number Indication 1.1.1 SAB Series (d) Body/seal material combination Symbol Description Working fluid (e) Other options (a) Actuation (for air/gas) NC (normally closed) (f) Assembly direction Model NO (normally open) (a) Actuation Double-acting (b) Port size (b) Port size...

  • Page 7: Svb Series

    SM-50664-A/4 1. PRODUCT OVERVIEW 1.1.2 SVB Series Working fluid Symbol Description (for air/gas) (a) Actuation (a) Actuation Model NC (normally closed) NO (normally open) (b) Port size (b) Port size 1 1/4, 32 (flange) 1 1/2, 40 (flange) 2, 50 (flange) 65 (flange) (made-to-order product) 80 (flange) (made-to-order product) (c) Thread type/flange...

  • Page 8: Internal Structure

    SM-50664-A/4 1. PRODUCT OVERVIEW 1.2 Internal Structure  Internal structure of normally closed type 2-port valve <Port size: 8A, 10A> Port B Port A Part name Quantity Cylinder cover Spring Lock nut Spring washer Piston PSD packing O-ring Adaptor O-ring Body Main valve assembly Cross recessed pan head screw with washer...
  • Page 9 SM-50664-A/4 1. PRODUCT OVERVIEW <Port size: 15A, 20A, 25A, 32A (F), 40A (F), 50A (F)> Port A Port B Part name Quantity Cylinder cover Spring Piston assembly PSD packing C-type stop ring Adaptor O-ring Body Main valve body Cross recessed pan head screw with washer Pilot solenoid valve O-ring O-ring...
  • Page 10 SM-50664-A/4 1. PRODUCT OVERVIEW <Port size: 65F, 80F> Part name Quantity Cylinder cover Spring Piston assembly Wear ring PSD packing O-ring Adaptor O-ring Body assembly Cross recessed pan head screw with washer Pilot solenoid valve O-ring MY packing Scraper Valve body O-ring Main valve body Seat spacer...
  • Page 11 SM-50664-A/4 1. PRODUCT OVERVIEW  Internal structure of normally open type 2-port valve <Port size: 8A, 10A> Port B Port A Part name Quantity Cylinder cover Lock nut Spring washer Piston PSD packing Spring O-ring Adaptor O-ring Main valve assembly Body Cross recessed pan head screw with washer Pilot solenoid valve...
  • Page 12 SM-50664-A/4 1. PRODUCT OVERVIEW <Port size: 15A, 20A, 25A, 32A (F), 40A (F), 50A (F)> Port B Port A Part name Quantity Cylinder cover Piston assembly PSD packing Spring O-ring Adaptor O-ring O-ring MY packing Cross recessed pan head screw with washer Pilot solenoid valve O-ring Seat spacer...
  • Page 13 SM-50664-A/4 1. PRODUCT OVERVIEW <Port size: 65F, 80F> Part name Quantity Cylinder cover Piston assembly Wear ring PSD packing Spring Adaptor O-ring O-ring Body Cross recessed pan head screw with washer Pilot solenoid valve O-ring MY packing Scraper O-ring Valve body Seat spacer Main valve body Spring washer...

  • Page 14: Installation

    2. INSTALLATION 2.1 Environment WARNING Consult CKD about the specifications before using the product outside the designated specifications or for special applications. Prevent water and cutting oil from splashing onto the product directly. • If water or cutting oil splashes onto the pilot solenoid valve directly, it may cause the coil to burn out.

  • Page 15: Unpacking

    SM-50664-A/4 2. INSTALLATION 2.2 Unpacking CAUTION Do not remove the piping port protector and do not take the product out of the plastic bag until just before piping. If the piping port protector is removed or the product is taken out of the plastic bag before ready to begin piping, foreign matters may enter from the piping ports and cause a failure or malfunction.

  • Page 16: Piping

    SM-50664-A/4 2. INSTALLATION 2.4 Piping CAUTION Secure the product when tightening or piping again. Secure and support the pipes to prevent the valve from being subjected to pipe loads and vibrations directly. Do not apply high pressure suddenly when supplying fluid for the first time after connecting the pipes.
  • Page 17 SM-50664-A/4 2. INSTALLATION  Tightening • When piping to the valve, secure the body with a wrench or a vise. • When using the solenoid valve mounted type SVB Series valve, do not connect a steel pipe directly to the pilot solenoid valve. The screws for mounting the solenoid valve may become damaged. •...

  • Page 18: Wiring

    SM-50664-A/4 2. INSTALLATION 2.5 Wiring This section applies to solenoid valve mounted type SVB Series only. WARNING Thoroughly read and understand this Instruction Manual before working on electrical wiring. The product must be handled by a person who understands the structure and operation principle of solenoid valve and has knowledge to secure the safety.

  • Page 19: How To Wire The Din Terminal Box

    SM-50664-A/4 2. INSTALLATION 2.5.1 How to wire the DIN terminal box This section applies to products with DIN terminal box (coil option symbol "2G" or "2H"). Use a cabtyre cord with an outside diameter of ø4.5 to ø7 and a nominal cross-sectional area of 0.75 or more.

  • Page 20: How To Wire The T-Type Terminal Box

    *600 V insulated vinyl cabtyre cable JIS C 3312 VCT 0.75 mm The component marked with * is not included with the CKD product. Wiring of T-type terminal box 2.5.3 How to change the orientation of the T-type terminal box...

  • Page 21: Usage

    SM-50664-A/4 3. USAGE 3. USAGE WARNING Do not use the product as a valve for ensuring safety such as an emergency shut-off valve. The product is not designed to be used as a valve for ensuring safety such as an emergency shut-off valve.

  • Page 22: Checks To Make Before Use (Checks Made After Mounting)

    SM-50664-A/4 3. USAGE 3.1 Checks to Make Before Use (Checks Made After Mounting) WARNING Close the main cock and discharge the fluid in the valve before performing an appearance check. Turn off the power before checking the power and insulation resistance. Be careful not to get an electric shock while checking.

  • Page 23: Safety Instructions

    When using a manifold solenoid valve, employ a solenoid valve with an integrated "exhaust malfunction prevention valve". The 4G Series 3, 5-port pneumatic solenoid valve manufactured by CKD is recommended. Also, since a similar phenomenon occurs when the exhaust flows in from the exhaust (R) port of the SVB Series valve, do not connect the exhaust (R) port to an exhaust circuit where a back pressure may occur.

  • Page 24: Manual Operation

    SM-50664-A/4 3. USAGE 3.3 Manual Operation CAUTION Make sure that the manual shaft has returned to the original position after performing manual operation. <Manual operation method for the non-locking type (SVB1A, SVB2A)> Supply an air pressure that is within the specified range to the pilot port.

  • Page 25: Maintenance And Inspection

    SM-50664-A/4 4. MAINTENANCE AND INSPECTION 4. MAINTENANCE AND INSPECTION WARNING Thoroughly read and understand this Instruction Manual before maintenance and inspection. 4.1 Maintenance Parts  Pilot solenoid valve Replace the pilot solenoid valve when an abnormality such as an electric failure, leakage, and delay in the operation is found.

  • Page 26: Disassembling And Assembling

    SM-50664-A/4 4. MAINTENANCE AND INSPECTION 4.3 Disassembling and Assembling WARNING Close the main cock and discharge the fluid in the valve before disassembling. Turn off the power before disassembling and assembling. An electric shock may occur. Be careful not to let the springs pop out when disassembling. An injury may occur.
  • Page 27 SM-50664-A/4 4. MAINTENANCE AND INSPECTION Recommended tightening torque for lock nut for tightening the piston rod Port size Screw size Recommended tightening torque (N·m) 8A, 10A 1.3 to 1.7 15A, 20A 2.7 to 3.3 32A (F) 4.6 to 5.8 40A (F), 50A (F) 90 to 110 65F, 80F Recommended tightening torque for hexagon socket head bolt for tightening the body...

  • Page 28: Troubleshooting

    Replace the main valve body. surface of main valve body. Foreign matters are stuck in main valve body. Disassemble the valve and clean its inside. If you have any other questions or concerns, contact your nearest CKD sales office or distributor. 2018-11-12...

  • Page 29: Warranty Provisions

    If the product specified herein fails for reasons attributable to CKD within the warranty period specified below, CKD will promptly provide a replacement for the faulty product or a part thereof or repair the faulty product at one of CKD’s facilities free of charge.
